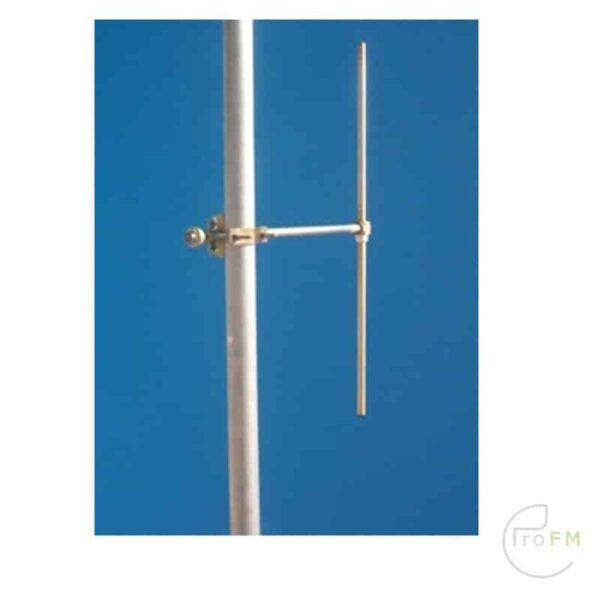

ProFM BBDP1 Broadband FM Dipole Antenna
This very sturdy antenna was created to be used as stand alone or as an element of a system made up of various units to make a stacked antenna array.
This broadband dipole antenna is built in anticorodal aluminum and subjected in all its parts, external and internal, to the passivation process with SURTEC 650 CROMITAL TCP.
With a 120 degree radiation angle it has good gain on a wide angle of coverage. Therefore, it is ideal for medium and high power repeaters.
This antenna is also recommended for a service of repeaters in hill thanks to its radiation angle of 140°
It has a standard N connector, but optional are the 7/16 connector, for a maximum input power of 2 KW, and a 7/8 connector ,maximum input power of 3,5 KW.
Antenna is constructed out of coated alluminium, or stainless steel and is fully demountable for easy shipping and lightweighted (5 kg)
It can be disassembled into two pieces for easy shipping less burdensome and costly
Model:ProFM BBDP1

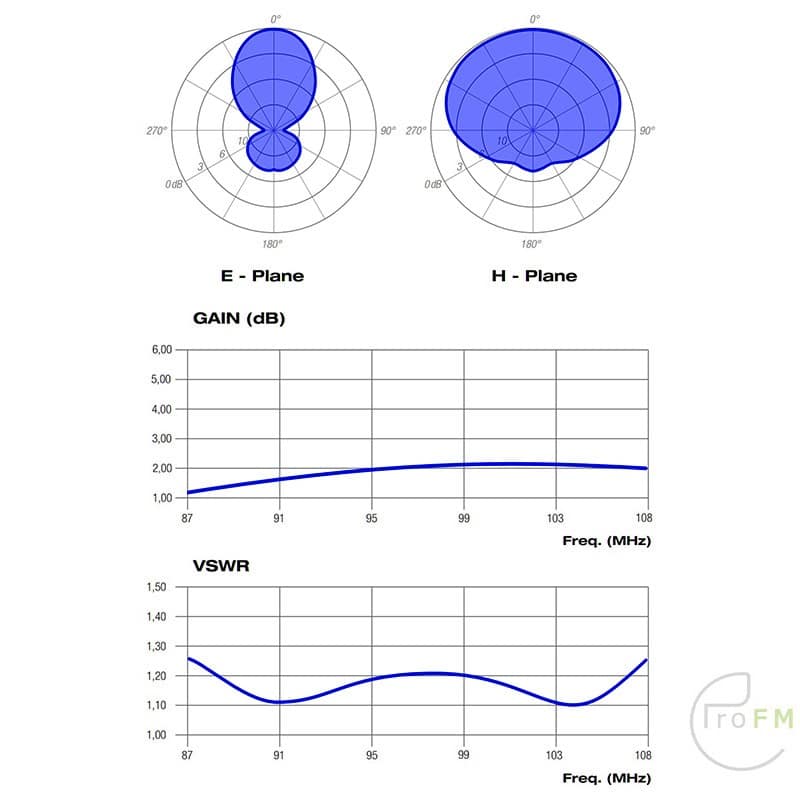

IMPEDANCE: 50 ohm
FREQUENCY RANGE: 87.5-108 Mhz
GAIN: 1 dB (half wave dipole)
TYPICAL – V.S.W.R.: 1.2 : 1
POLARIZATION: LINEAR VERTICAL
MAX. POWER: MEDIUM POWER 2000 W H POWER 5 KW
Max Power: 600 Watt – N-Connector
Max Power: 2000 Watt – 7/16 Connector
Max Power: 5000 Watt – 7/8 connector
CONNECTOR TYPE: N female-7/16 or female- 7/8
WIND LOAD: 32 Kg. 150 Km. Hora
MAX. WIND VELOCITY: 200 Km/p u
GROUNDING:Via clamps
| BAY | DIPOLE x BAY | GAIN dBd | Antenna height
in meters |
WEIGHT in kg | WIND LOAD (v=160 Km/h)(kg) |
| 1 | 1 | 1,5 | 1.4 | 3,650 | 10,1 |
| 2 | 1 | 4,5 | 4.0 | 7,300 | 20.2 |
| 4 | 1 | 7,5 | 9.2 | 14,600 | 40.4 |
| 6 | 1 | 9,3 | 14.5 | 21,900 | 60.6 |
| 8 | 1 | 10.5 | 20.0 | 29,200 | 80.8 |
- Description
-

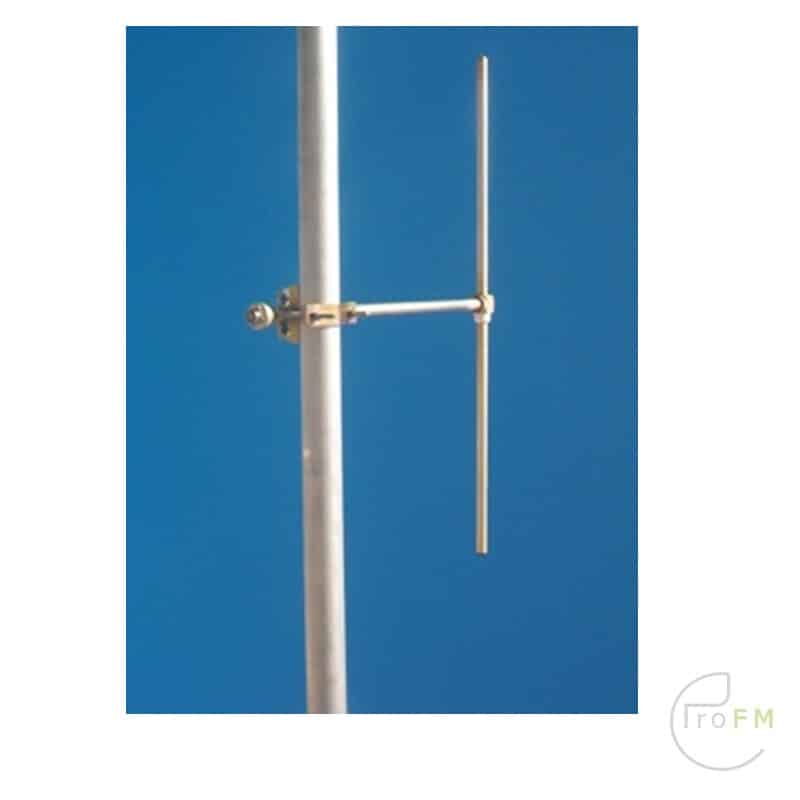

ProFM BBDP1 Broadband FM Dipole Antenna
This very sturdy antenna was created to be used as stand alone or as an element of a system made up of various units to make a stacked antenna array.
This broadband dipole antenna is built in anticorodal aluminum and subjected in all its parts, external and internal, to the passivation process with SURTEC 650 CROMITAL TCP.
With a 120 degree radiation angle it has good gain on a wide angle of coverage. Therefore, it is ideal for medium and high power repeaters.
This antenna is also recommended for a service of repeaters in hill thanks to its radiation angle of 140°It has a standard N connector, but optional are the 7/16 connector, for a maximum input power of 2 KW, and a 7/8 connector ,maximum input power of 3,5 KW.
Antenna is constructed out of coated alluminium, or stainless steel and is fully demountable for easy shipping and lightweighted (5 kg)
It can be disassembled into two pieces for easy shipping less burdensome and costly
- Specifications
-
Model:ProFM BBDP1
IMPEDANCE: 50 ohm
FREQUENCY RANGE: 87.5-108 Mhz
GAIN: 1 dB (half wave dipole)
TYPICAL – V.S.W.R.: 1.2 : 1
POLARIZATION: LINEAR VERTICAL
MAX. POWER: MEDIUM POWER 2000 W H POWER 5 KW
Max Power: 600 Watt – N-Connector
Max Power: 2000 Watt – 7/16 Connector
Max Power: 5000 Watt – 7/8 connector
CONNECTOR TYPE: N female-7/16 or female- 7/8
WIND LOAD: 32 Kg. 150 Km. Hora
MAX. WIND VELOCITY: 200 Km/p u
GROUNDING:Via clampsBAY DIPOLE x BAY GAIN dBd Antenna height in meters
WEIGHT in kg WIND LOAD
(v=160 Km/h)(kg)1 1 1,5 1.4 3,650 10,1 2 1 4,5 4.0 7,300 20.2 4 1 7,5 9.2 14,600 40.4 6 1 9,3 14.5 21,900 60.6 8 1 10.5 20.0 29,200 80.8
