ProFM STL 14 Element Yagi Antenna

 425,00

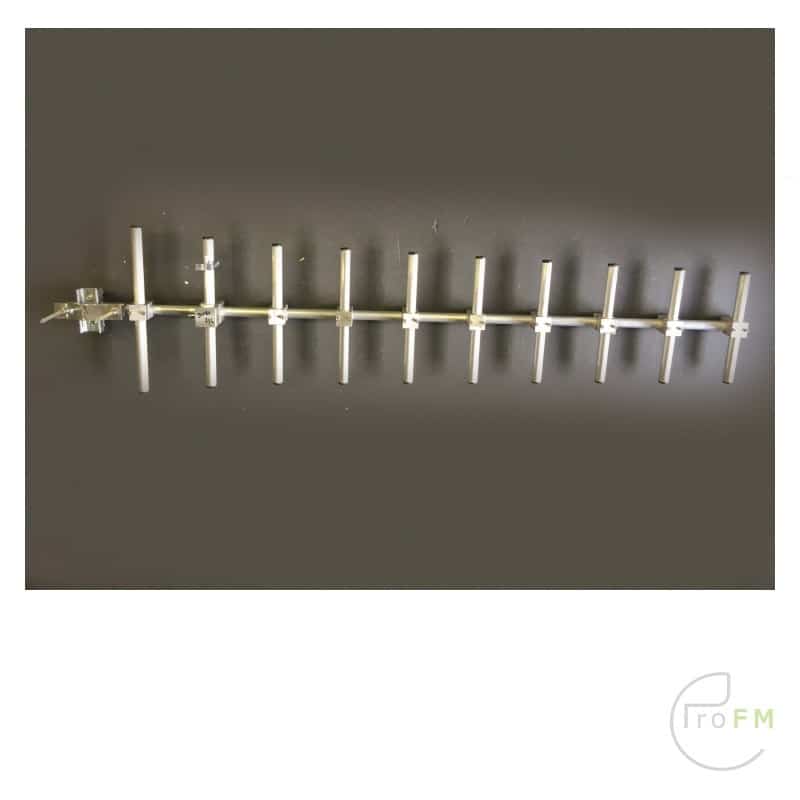

ProFM 14 Element Yagi STL Antenna

ProFM a 14-element Yagi STL Antenna available in two versions: aluminum elements and boom, or stainless steel. Ideal for narrow-band applications, ensuring reliable performance for your broadcasting needs.



Category: SKU: 1145 Tag:

Description

ProFM 14 Element Yagi STL Antenna

This YAGI antenna elements 14 narrow-band,  built  in aluminum elements and boom.

The insulators are made of PTFE (Teflon). Due to its construction can withstand 300w connector “”N”” This antenna is recommended for a service of 22 degree DEGREES link.
Available frequencies are 300-500 Mhz.

This type of antenna is suitable for directional service for stl service.
We can offer this antenna in the frequency range 150- 500 Mhz

Type: 14-element yagi, directional, Tuned high gain
– Frequency range @SWR ≤ 1.2:1: 300-500 MHz
_ Bandwith: 2 Mhz
– Impedance: 50Ω
– Radiation (H-plane): beam width @ -3 dB = 32° @ center freq.
– Radiation (E-plane): beam width @ -3 dB = 25° @ center frequency.
– Polarization: linear vertical or horizontal
– Gain: 14 dB
– Maximum Power (CW) @ 30°C: 500 Watts
– Earth protection: all metal parts are DC grounded, the inner conductor has a DC short circuit
– Connector: N-female

ELETTRICAL DATA:   MECHANICAL DATA:
Model:

ProFMSTLYagi14

WEIGHT:  Kg.  depending frequency tuning
IMPEDANCE:  50  ohm             MOUNTING: WHITH STANDARD  CLAMP 50-110 mm .
FREQUENCY  RANGE: 300-500  Mhz     DIMENSIONS: depending frequency tuning
GAIN:  12 dB (half wave dipole)      MATERIALS HARDWARE   MOUNTING: STEEL  GALVANIZED.
TYPICAL  V.S.W.R: <1.2:1  ISULATOR:  PTFE (TEFLON)
MAX. POWER: 500w DIPOLE:  ALUMINIUM OR STAINLESS STEEL
CONNECTOR TYPE: N
WIND LOAD:  Kg. 40 Km.  150Hora
Description

ProFM 14 Element Yagi STL Antenna

This YAGI antenna elements 14 narrow-band,  built  in aluminum elements and boom.

The insulators are made of PTFE (Teflon). Due to its construction can withstand 300w connector “”N”” This antenna is recommended for a service of 22 degree DEGREES link.
Available frequencies are 300-500 Mhz.

This type of antenna is suitable for directional service for stl service.
We can offer this antenna in the frequency range 150- 500 Mhz

Type: 14-element yagi, directional, Tuned high gain
– Frequency range @SWR ≤ 1.2:1: 300-500 MHz
_ Bandwith: 2 Mhz
– Impedance: 50Ω
– Radiation (H-plane): beam width @ -3 dB = 32° @ center freq.
– Radiation (E-plane): beam width @ -3 dB = 25° @ center frequency.
– Polarization: linear vertical or horizontal
– Gain: 14 dB
– Maximum Power (CW) @ 30°C: 500 Watts
– Earth protection: all metal parts are DC grounded, the inner conductor has a DC short circuit
– Connector: N-female

Specifications
ELETTRICAL DATA:   MECHANICAL DATA:
Model:

ProFMSTLYagi14

WEIGHT:  Kg.  depending frequency tuning
IMPEDANCE:  50  ohm             MOUNTING: WHITH STANDARD  CLAMP 50-110 mm .
FREQUENCY  RANGE: 300-500  Mhz     DIMENSIONS: depending frequency tuning
GAIN:  12 dB (half wave dipole)      MATERIALS HARDWARE   MOUNTING: STEEL  GALVANIZED.
TYPICAL  V.S.W.R: <1.2:1  ISULATOR:  PTFE (TEFLON)
MAX. POWER: 500w DIPOLE:  ALUMINIUM OR STAINLESS STEEL
CONNECTOR TYPE: N
WIND LOAD:  Kg. 40 Km.  150Hora

Additional information

Weight 7 kg
Dimensions 220 × 20 × 20 cm

Brand

ProFM Broadcast

ProFM Broadcast
