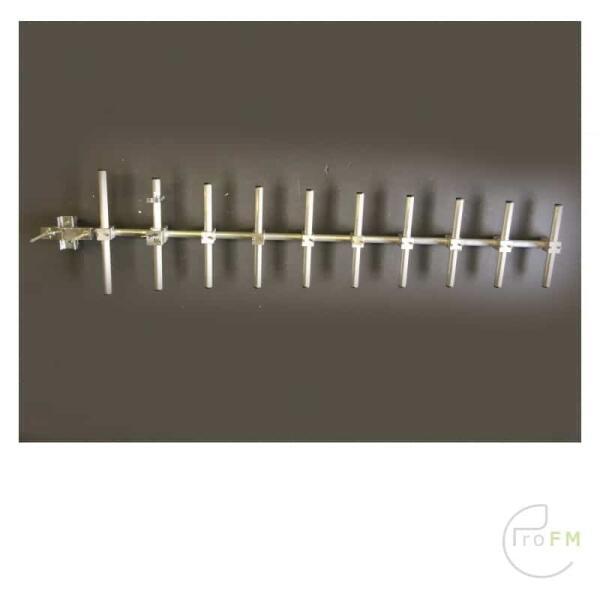

ProFM 10 Element Yagi STL Antenna
This YAGI antenna elements 10 narrow-band, built in aluminum elements and boom.
The insulators are made of PTFE (Teflon). Due to its construction can withstand 300w connector “”N”” This antenna is recommended for a service of 22 degree DEGREES link.
Available frequencies are 300-500 Mhz.
This type of antenna is suitable for directional service for stl service.
We can offer this antenna in the frequency range 150- 500 Mhz
Type: 10-element yagi, directional, Tuned high gain
– Frequency range @SWR ≤ 1.2:1: 300-500 MHz
_ Bandwith: 2 Mhz
– Impedance: 50Ω
– Radiation (H-plane): beam width @ -3 dB = 32° @ center freq.
– Radiation (E-plane): beam width @ -3 dB = 25° @ center frequency.
– Polarization: linear vertical or horizontal
– Gain: 12 dB
– Maximum Power (CW) @ 30°C: 500 Watts
– Earth protection: all metal parts are DC grounded, the inner conductor has a DC short circuit
– Connector: N-female
WEIGHT: Kg. depending frequency tuning
IMPEDANCE: 50 ohm
MOUNTING: WHITH STANDARD CLAMP 50-110 mm .
FREQUENCY RANGE: 300-500 Mhz
DIMENSIONS: depending frequency tuning
GAIN: 12 dB (half wave dipole)
MATERIALS HARDWARE MOUNTING: STEEL GALVANIZED.
TYPICAL V.S.W.R: <1.2:1
ISULATOR: PTFE (TEFLON)
MAX. POWER: 500w
DIPOLE: ALUMINIUM OR STAINLESS STEEL
CONNECTOR TYPE: N
WIND LOAD: Kg. 40 Km. 150Hora
