Description

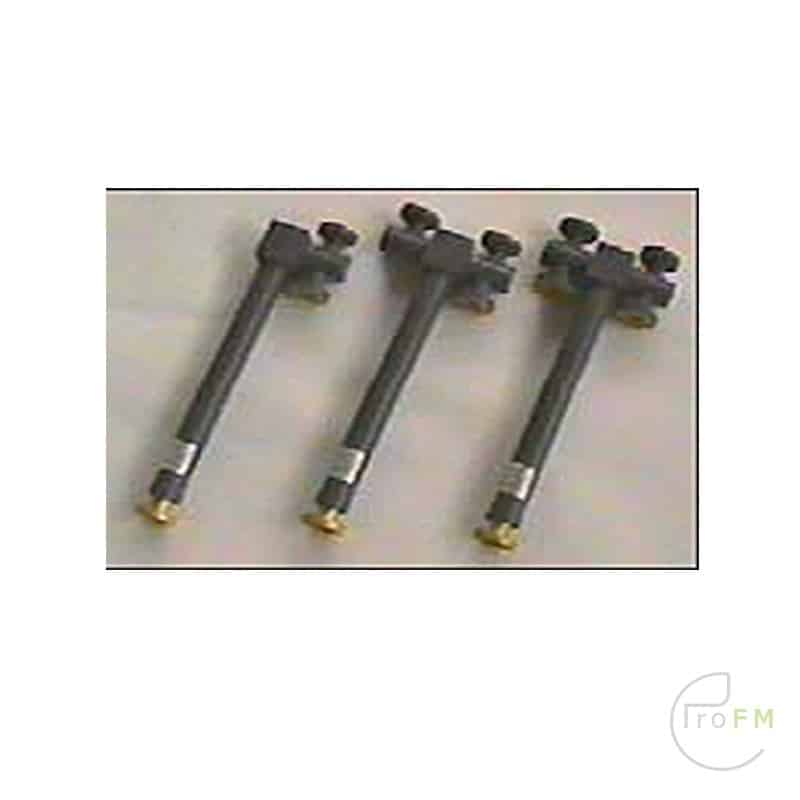

Pro FM Power Splitter 7/8 In – 2 x 7/16 Out
Power splitters are the main accessory used to built radiating antenna systems arrays. The divide the main signal into multiple antennas in a system.
They are manufactured in several models with all the combinations between frequency bands, bands , number of output, input and output connector types:
Frequency bands: Radio FM – TV VHF – TV UHF
Number of output: 2 – 3 – 4 – 5 – 6 – 8
Input connectors: N – 7/16 – 7/8″ – 1 5/8″ – 3 1/8″ – 4 1/8″ – 6 1/8″
Output connectors: N – 7/16 – 7/8″ – 1 5/8″ – 3 1/8″ – 4 1/2″
V.S.W.R.: < 1.08:1
Impedance: 50 ohm
Insertion loss: 0.1 dB
Moisture protection: power splitters with EIA flanges are pressurizable
Mounting: couple of mounting brackets (optionals) for poles > 30 to < 114 mm
Materials: Welded brass and copper – Bolts in st.steel – Teflon insulators – Silicon O-Rings
Treatments: Treated and painted body – Silver-plated maching line
