Description

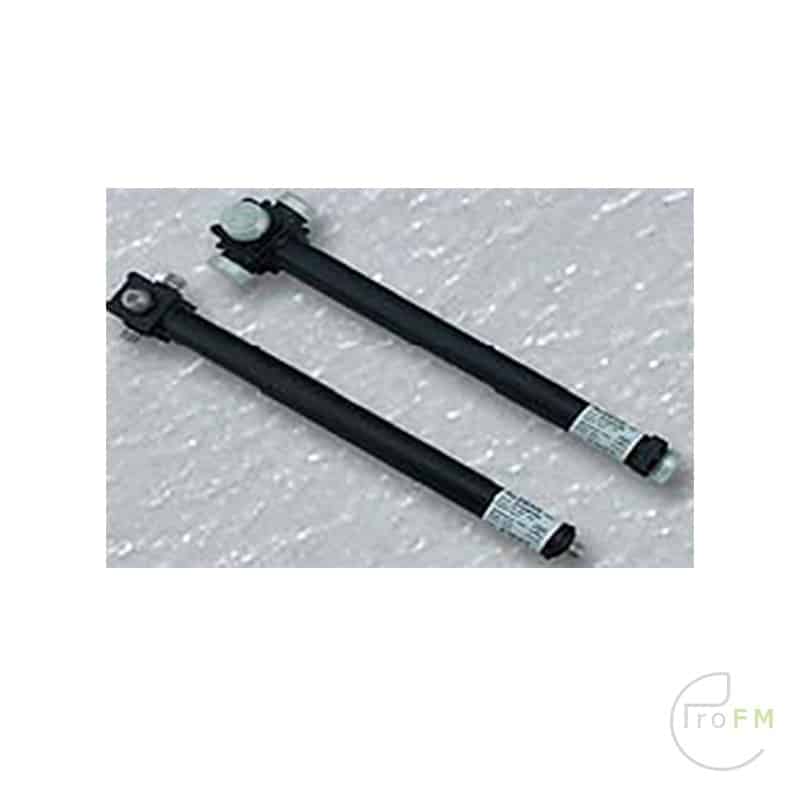

ProFM Power Splitter 7/16 In – 2 x 7/16 Out
Power splitters are the main accessory used to built radiating antenna systems arrays.They divide the power from the transmitter to be used in multible antenna bay systems.
They are manufactured in several models with all the combinations between frequency bands, bands , number of output, input and output connector types:
Frequency bands: Radio FM – TV VHF – TV UHF
Number of output: 2 – 3 – 4 – 5 – 6 – 8
Input connectors: N – 7/16 – 7/8″ – 1 5/8″ – 3 1/8″ – 4 1/8″ – 6 1/8″
Output connectors: N – 7/16 – 7/8″ – 1 5/8″ – 3 1/8″ – 4 1/2″
V.S.W.R.: < 1.08:1
Impedance: 50 ohm
Insertion loss: 0.1 dB
Moisture protection: power splitters with EIA flanges are pressurizable
Mounting: couple of mounting brackets (optionals) for poles > 30 to < 114 mm
Materials: Welded brass and copper – Bolts in st.steel – Teflon insulators – Silicon O-Rings
Treatments: Treated and painted body – Silver-plated maching line
