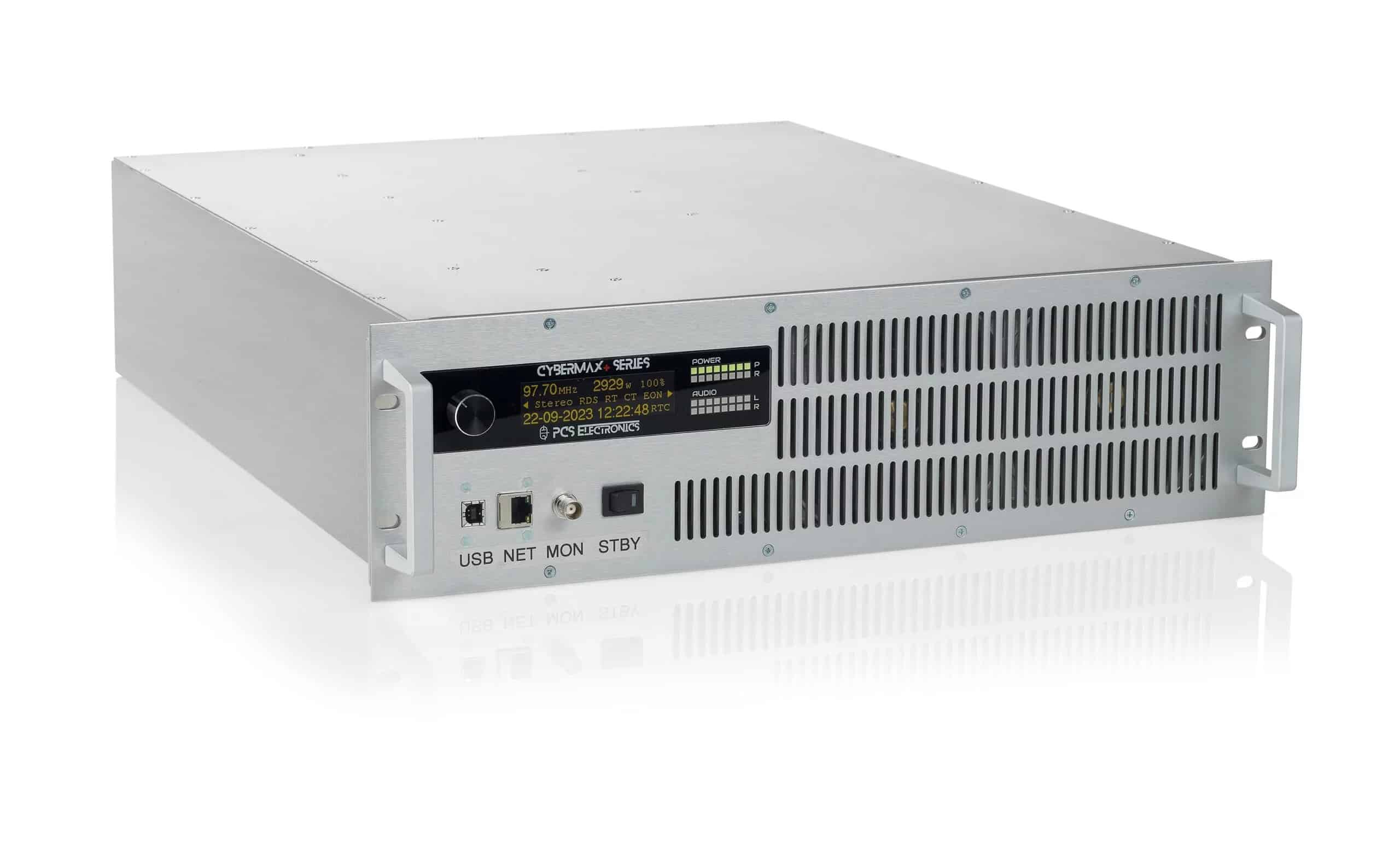

Pro FM DAB+ Transmitter
Professional Digital Radio Broadcasting – 24/7/365 Performance
The Pro FM DAB+ Transmitter, based on the trusted CyberMax platform, delivers reliable, high-quality DAB+ broadcasting in a sleek, heavy-duty package. Built for continuous operation, this system is ideal for broadcasters who demand performance, flexibility, and remote control capabilities.Power is measured using our new directional couplings with True-RMS response, perfect for DAB+ The Large heavy-duty ball-bearing cooling fans to prevent excessive heat. The Amplifier is equipped with SWR and temp protection and equipped with PC remote control (possible via USB, RS232 or Ethernet).
A robust transmitter made for 24/7/365 use. DAB+ amplifier is controlled and configured via web interface. Audio is provided via ETI stream generated using ODR-DabMUX and input via Ethernet.
Key Features Pro FM DAB Transmitter:
- Power Options: Choose from 50W, 250W, or 500W of robust DAB+ RF output power – all designed for uninterrupted 24/7 operation.
- Industrial Design: Housed in a durable 2U or 3U rack-mount enclosure, with large, ball-bearing fans and automatic speed control to ensure cool, quiet operation.
- Advanced Displays: Features a bright OLED screen and LED bar graph meters for real-time monitoring of performance metrics.
- Web-Based Control: Configure and monitor both the DAB+ exciter and amplifier remotely via separate IP addresses – no PC required.
- Audio Input via ETI-Stream: Seamlessly connects through Ethernet using ODR-DabMUX for clean, consistent audio transmission.
- Black Edition: Enhanced visual interface with a new 122×32 graphical LCD, rotary encoder, and intuitive controls.
Built-In Intelligence:
- Precision Power Control: Adjust power in 100 fine-tuned steps or by percentage – now more accurate than ever.
- Remote Access: Full Ethernet-based web control, accessible even from your smartphone.
- Scheduled Operation: Built-in scheduler
RF SECTION
– Output power 50W/250W/500W DAB+ typical
– Output impedance 50 unbalanced, VSWR less than 2:1 for full output
– Output connector: N (50W) or 7/16 (250/500W)
– Frequency range 175-225MHz
– RF Harmonics: requires DAB+ mask filter tuned for your channel to be compliant
– Monitoring Led: Power on, SWR/TEMP warning
– Audio input: Supplied via ETHERNET, a suitable program must be running on a network-attached computer
GENERAL
– AC mains power: 110-240V 50/60Hz universal, works everywhere on this planet
– Ambient temperature: -5° to +45°C
– External dimensions 50W ( W x D x H ) 19″ x depth (170mm) x height 2HE (88mm)
– External dimensions 250W/500W ( W x D x H ) 19″ x depth (550mm) x height 3HE (132mm)
– Physical weight 4Kg 12Kg (50W), 20+Kg (250W/500W)
– Volumetric weight up to 30Kg
SPECIFICATIONS FOR DAB+ exciter:
– Nominal Transmit Frequency: 176 … 239 Mhz
– Signal shoulders height: >~40 dBc at max power, 50dBc at reduced power
– Software Needed: Only if you need to create ETI-stream yourself, ODR-DabMUX is needed
– I/Q samples width: 18 bit
– Complex sample rate: 6144 kS/s.
– Input interface: 10/100 Mbit Ethernet
