Description

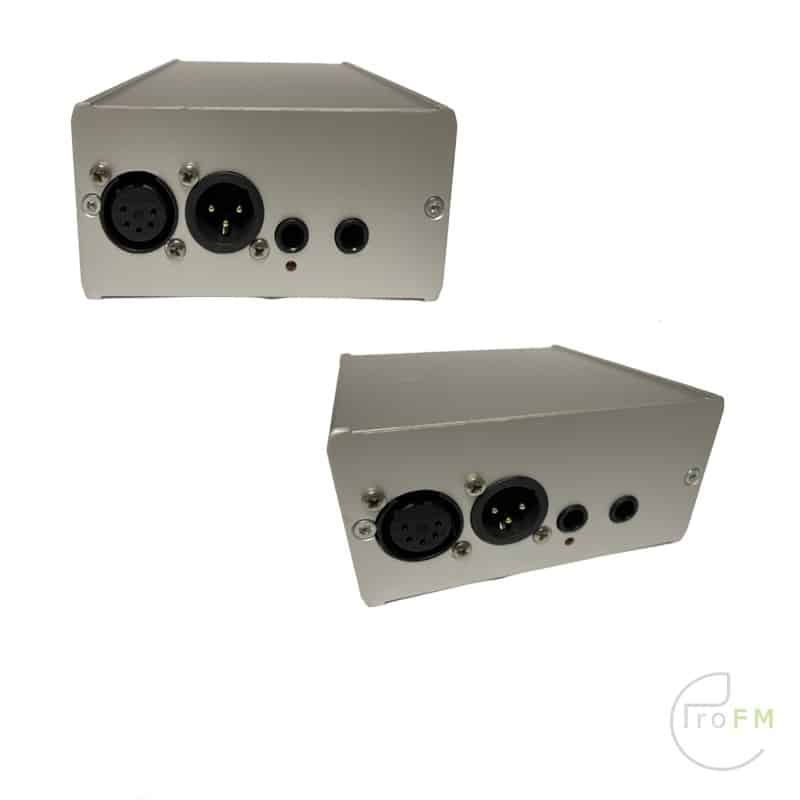

ProFM Broadcast E042 Mic Arm Red Light Switch Double
Introducing the ProFM Broadcast E042 Mic Arm Red Light Switch Double – a versatile solution enhancing your studio control.
This device effortlessly integrates on-air indication for commonly used MiKA. Connect not one, but two mic arms with ease, streamlining your broadcasting setup.
The added convenience of remote in and output ensures no loss of remote/start outputs. Crafted with meticulous attention to detail, the sturdy aluminum housing and effective EM shielding prevent audio signal disturbances.
Power it effortlessly with a simple 12V adapter which is included.
Upgrade your studio control with the ProFM E042 mic arm light controller, where reliability and functionality meet in a compact and efficient design, ensuring seamless on-air experiences.
Input Audio:
5 Pin XLR
– PIN1: Ground (Shield)
– PIN2: Positive (Red)
– PIN3: Negative (Blue)
– PIN4: LED –
– PIN5: LED
Output Audio:
– 3 Pin XLR
– PIN1: Ground (Shield)
– PIN2: Positive (Red)
– PIN3: Negative (Blue)
Remote Control Input:
6,3 mm Stereo Jack (tip and ring)
Remote Control output:
6,3 mm Stereo Jack (tip and ring)
Power Supply:
12 Volt DC
