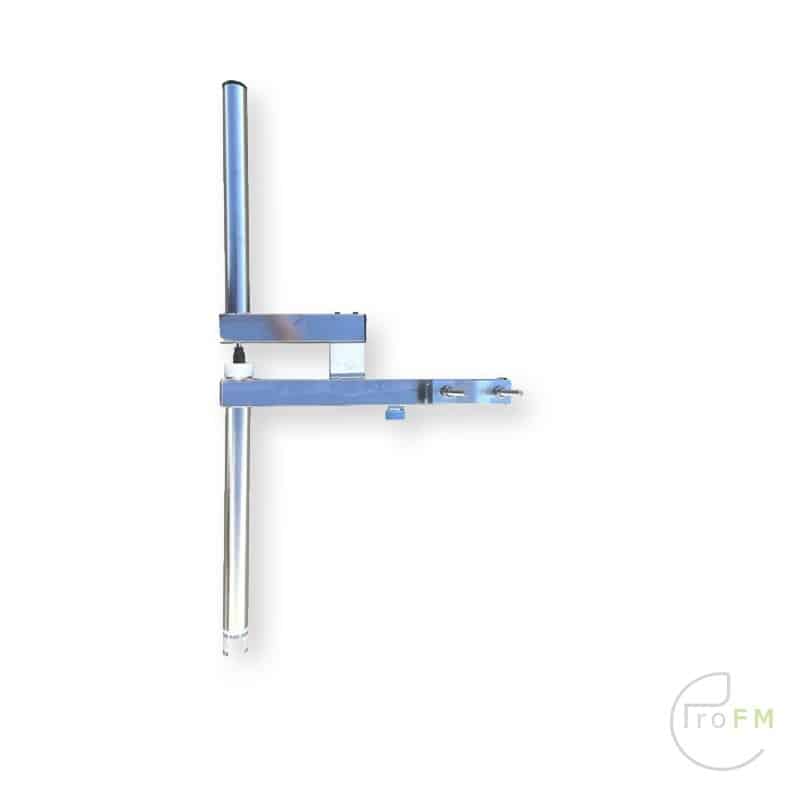

Name: Pro FM BBDAB1 DAB Broadband Dipole Antenna
Brand: ProFM Broadcast
SKU: 692
Availability: InStock

Description

Description
Specifications

Pro FM BBDAB1 DAB Broadband Dipole

Pro FM BBDAB1 DAB Broadband Dipole antenna. Crafted to maximize your broadcasting reach, this cutting-edge antenna is tailored specifically for Digital Audio Broadcasting, ensuring impeccable signal strength and extensive coverage. Elevate your radio transmission capabilities and effortlessly expand your audience base with our state-of-the-art technology.

Designed to deliver crystal-clear DAB reception and superior broadcasting performance, our DAB broadband broadcast antenna guarantees unparalleled signal reliability and extended coverage. With frequency options ranging from 175-210 MHz to 200-240 MHz, you have the flexibility to adapt to various broadcasting needs seamlessly.

Constructed from durable stainless steel, our dipole antenna is built to withstand the rigors of continuous operation, ensuring longevity and reliability. The input connector features a 7/16 female connection, with optional configurations including N female or 7/8, providing versatility to suit your specific setup requirements.

With a maximum power handling capacity of 1600W (with either 7/16 or 7/8 flange), our antenna empowers your broadcasting endeavors with robust performance and efficiency. Trust in the Pro FM BBDAB1 DAB Broadband Dipole antenna to elevate your broadcasting experience, delivering unparalleled signal strength, reliability, and coverage for an immersive listener experience. Upgrade your broadcasting setup today and unlock the full potential of your DAB transmission capabilities.

Max power: 7/16 female 1600 W 7/16 (standard)
N female 500W optional 7/8 connector available
Frequency : 175 / 210 Mhz— 195 / 240 Mhz
VSWR: >1.22:1
Gain * : 2 dBd @ 200 Mhz
Polaritation :Vertical
Weight ; 4 Kgrms
Material:Stainless Steel
Impedance :50 Ohms
Wind load :4 Kgrms @ 160 Km/h
Max wind speed :190 Km / h
Lightning Protection: Grounded

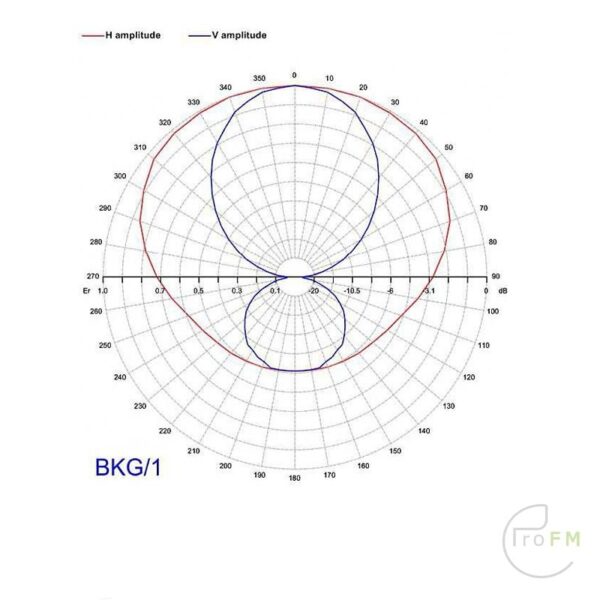

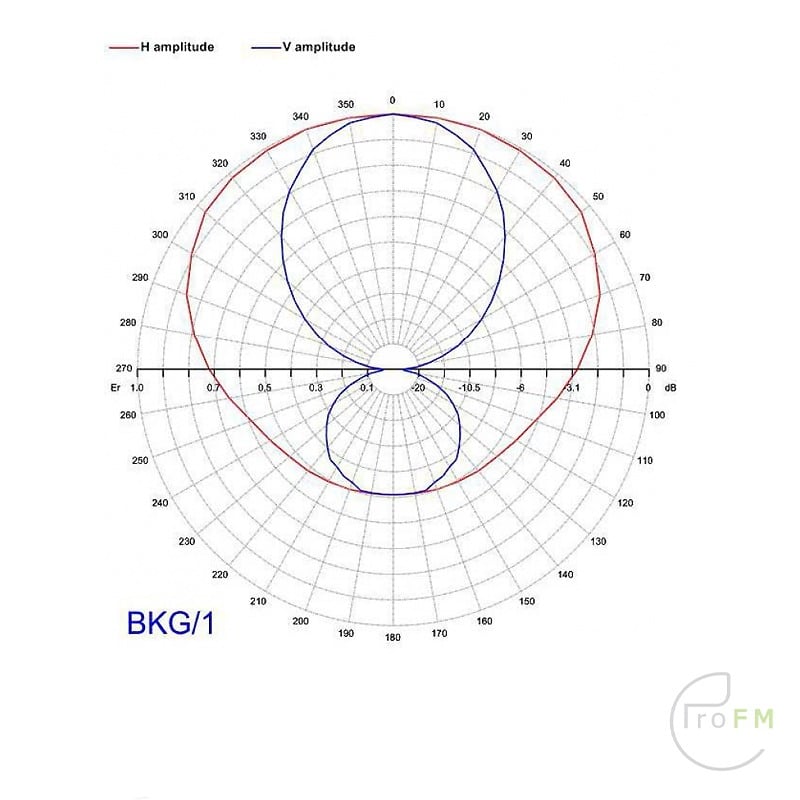

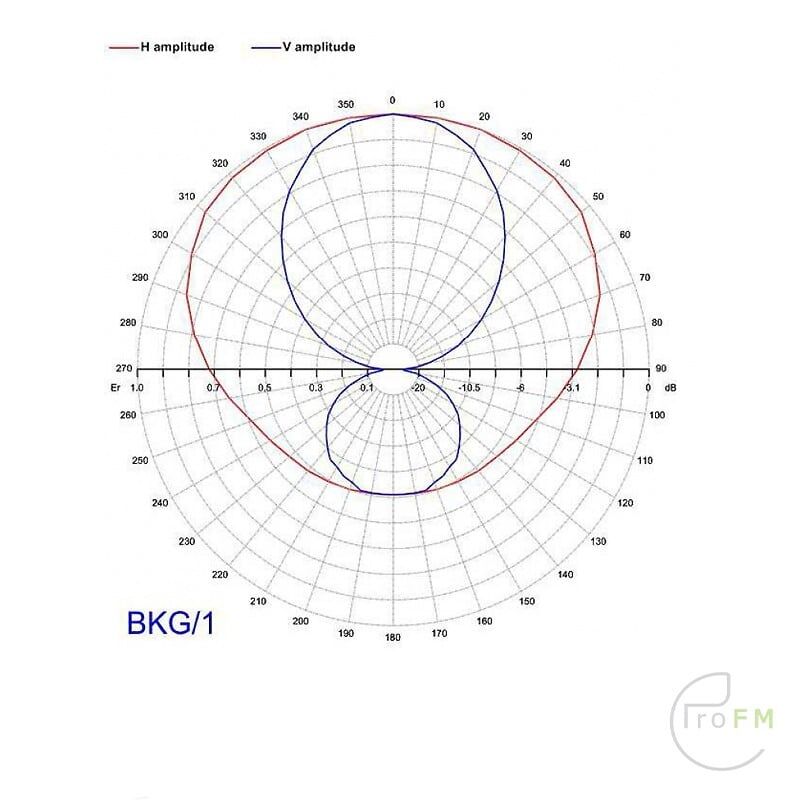

Vertical amplitude : 80º @ -3dB E plane
Mounting Brackets: Masts till 30 / 80 mm
Dimensions: 600 mm X 600 mm x 40m

Description: Pro FM BBDAB1 DAB Broadband Dipole

Pro FM BBDAB1 DAB Broadband Dipole antenna. Crafted to maximize your broadcasting reach, this cutting-edge antenna is tailored specifically for Digital Audio Broadcasting, ensuring impeccable signal strength and extensive coverage. Elevate your radio transmission capabilities and effortlessly expand your audience base with our state-of-the-art technology.

Designed to deliver crystal-clear DAB reception and superior broadcasting performance, our DAB broadband broadcast antenna guarantees unparalleled signal reliability and extended coverage. With frequency options ranging from 175-210 MHz to 200-240 MHz, you have the flexibility to adapt to various broadcasting needs seamlessly.

Constructed from durable stainless steel, our dipole antenna is built to withstand the rigors of continuous operation, ensuring longevity and reliability. The input connector features a 7/16 female connection, with optional configurations including N female or 7/8, providing versatility to suit your specific setup requirements.

With a maximum power handling capacity of 1600W (with either 7/16 or 7/8 flange), our antenna empowers your broadcasting endeavors with robust performance and efficiency. Trust in the Pro FM BBDAB1 DAB Broadband Dipole antenna to elevate your broadcasting experience, delivering unparalleled signal strength, reliability, and coverage for an immersive listener experience. Upgrade your broadcasting setup today and unlock the full potential of your DAB transmission capabilities.
Specifications: Max power: 7/16 female 1600 W 7/16 (standard)
N female 500W optional 7/8 connector available
Frequency : 175 / 210 Mhz— 195 / 240 Mhz
VSWR: >1.22:1
Gain * : 2 dBd @ 200 Mhz
Polaritation :Vertical
Weight ; 4 Kgrms
Material:Stainless Steel
Impedance :50 Ohms
Wind load :4 Kgrms @ 160 Km/h
Max wind speed :190 Km / h
Lightning Protection: Grounded
Vertical amplitude : 80º @ -3dB E plane
Mounting Brackets: Masts till 30 / 80 mm
Dimensions: 600 mm X 600 mm x 40m

Additional information

Weight	5 kg
Dimensions	70 × 70 × 20 cm
