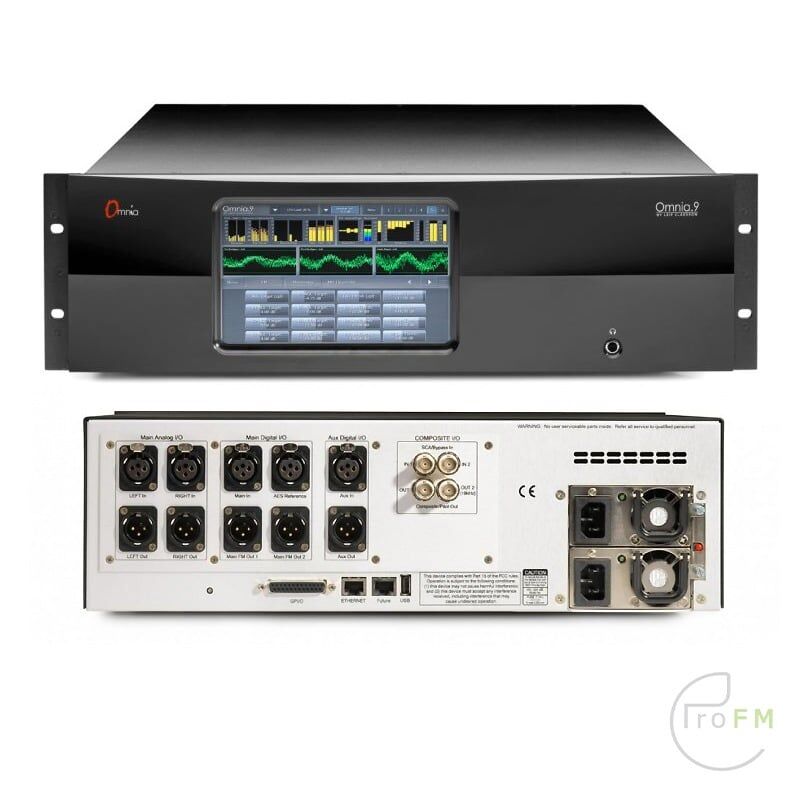

Omnia.9 Broadcast Audio Processor

Omnia.9 Broadcast Audio Processor

Experience unparalleled audio quality with the Omnia.9 Broadcast Audio Processor: simultaneous FM/HD cores, “Undo” technology, declipping, multiband expansion, all in a sleek 3-RU unit.

Description

Omnia.9 Broadcast Audio Processor

Omnia.9 is the most powerful and flexible multi-transmission platform audio processor in the world. One Omnia.9 can be configured for FM/AM, dual FM, up to 3 DAB signals, and a separate streaming engine all in one 3RU chassis. With the clear, clean sound that the Omnia.9 is known for, this processor is the choice of stations from classical to hot CHR and everything in between. The newest MKII upgrade includes Livewire+ AES67 I/O, an even more advanced final clipper, and additional logging capabilities.

Main Features:

  • – Simultaneous separate processing cores for FM and (Optional) HD1, HD2 and HD3.
  • – Each processing core is separately fully adjustable and has selectable 4, 5, 6 or 7 bands
  • – Psychoacoustic Composite Embedder allows up to 140% audio peaks in stereo at 100% total modulation.
  • – Contains exclusive “Undo” technology, a source declipping algorithm and program-adaptive multiband expander which removes distortion from source material. This corrects over-processed CDs, so common in today’s contemporary music.
  • – Multiband downward expansion (source noise reduction)
  • – 3-stage wideband AGC with adjustable sidechain equalization
  • – Program-dependent multiband compression
  • – Multiband look-ahead limiting
  • – Adjustable dynamic bass clipping (future feature)
  • – Selectable phase linear high pass filter, 15, 30 or 45 Hz
  • – (For Digital) Two-band final look-ahead limiting
  • – Selectable phase linear (high latency) or low latency (talent air monitoring capable) modes
  • – Fully automatic program-dependent declipper and multiband expander for damaged content such as loud CDs
  • – Optional streaming encoding built in for Primary Digital (HD) and Secondary (HD2) and Tertiary (HD3). Supports encoding to MP3 (Mpeg-1 Layer 3), MP2 (Mpeg-1 Layer 2), AAC, HE-AAC (including RTSP/3G for streaming to mobile phones), Ogg Vorbis, WMA and WMA Pro.
  • – 7 inch front panel touch screen
  • – Full remote control.
  • – On-screen keyboard with several layouts (QWERTY, QWERTZ, AZERTY, Dvorak and ABC sequential) for easy setup and preset name typing
  • – Optional RDS encoder, dynamically updateable
  • – Selectable SSB (Single Sideband) stereo encoder
  • – HTTP push support for automation, such as dynamic RDS and streaming song titles, preset recall
  • – Dayparting (scheduled preset selection) (future feature)
  • – Studio Output with very low latency for talent monitoring
  • – Dual independent power supplies
  • – Composite pass-through (relay bypass) for your backup processor

SPECIFICATIONS

Frequency Response

  • /-0.5dB 20Hz to 15kHz, 17.5kHz in extended mode

Signal to Noise Ratio

  • Greater than -80dBu de-emphasized, 20Hz to 15kHz

System Distortion

  • Less than 0.01% THD below pre-emphasis, inaudible above

Stereo Separation

  • 65dB minimum, 20Hz to 15kHz, 70dB typical

Digital Output Level

  • Adjustable from -24.0dBFS to 0.0dBFS in 0.1dB increments

Stereo Baseband Output

  • Adjustable from -2dBU to 22dBU (0.1dB increments) into 600-Ohms, 20-Ohm output impedance

A/D Conversion

  • Crystal Semiconductor CS5361, 24 bit 128x over-sampled delta sigma converter with linear-phase anti-aliasing filter.
  • Pre-ADC anti-alias filter, with high-pass filter at <10 Hz

D/A Conversion

  • Crystal Semiconductor CS4391, 24-bit, 128x oversampled

External Sync Input

  • Per AES11 Digital Audio Reference Signal (DARS), reference for digital output sample rate. Range is 32kHz to 96kHz.

Analog I/O

  • Two balanced, EMI filtered XLR connectors

Stereo Generator Connections

  • Four 75-Ohm BNC female, two inputs, two outputs
  • (FM style only) AES/EBU In & External Sync

Digital I/O

  • AES/EBU via four XLR connectors for Main and Aux Digital programs (two stereo in, two stereo out)

Ethernet

  • Shared RJ45 supporting 100 and 1000 BASE-T Ethernet connections

Power Requirements

  • 100-264 VAC, 47-63Hz autosensing

Power Connector

  • IEC male, detachable 3-wire power cords supplied

Power Supply

  • Internal dual redundant, hot-swappable

Environmental

  • Operating: 0 to 50 degrees C
  • Non-operating: –20 to 70 degrees C.
Description

Omnia.9 Broadcast Audio Processor

Omnia.9 is the most powerful and flexible multi-transmission platform audio processor in the world. One Omnia.9 can be configured for FM/AM, dual FM, up to 3 DAB signals, and a separate streaming engine all in one 3RU chassis. With the clear, clean sound that the Omnia.9 is known for, this processor is the choice of stations from classical to hot CHR and everything in between. The newest MKII upgrade includes Livewire+ AES67 I/O, an even more advanced final clipper, and additional logging capabilities.

Main Features:

  • – Simultaneous separate processing cores for FM and (Optional) HD1, HD2 and HD3.
  • – Each processing core is separately fully adjustable and has selectable 4, 5, 6 or 7 bands
  • – Psychoacoustic Composite Embedder allows up to 140% audio peaks in stereo at 100% total modulation.
  • – Contains exclusive “Undo” technology, a source declipping algorithm and program-adaptive multiband expander which removes distortion from source material. This corrects over-processed CDs, so common in today’s contemporary music.
  • – Multiband downward expansion (source noise reduction)
  • – 3-stage wideband AGC with adjustable sidechain equalization
  • – Program-dependent multiband compression
  • – Multiband look-ahead limiting
  • – Adjustable dynamic bass clipping (future feature)
  • – Selectable phase linear high pass filter, 15, 30 or 45 Hz
  • – (For Digital) Two-band final look-ahead limiting
  • – Selectable phase linear (high latency) or low latency (talent air monitoring capable) modes
  • – Fully automatic program-dependent declipper and multiband expander for damaged content such as loud CDs
  • – Optional streaming encoding built in for Primary Digital (HD) and Secondary (HD2) and Tertiary (HD3). Supports encoding to MP3 (Mpeg-1 Layer 3), MP2 (Mpeg-1 Layer 2), AAC, HE-AAC (including RTSP/3G for streaming to mobile phones), Ogg Vorbis, WMA and WMA Pro.
  • – 7 inch front panel touch screen
  • – Full remote control.
  • – On-screen keyboard with several layouts (QWERTY, QWERTZ, AZERTY, Dvorak and ABC sequential) for easy setup and preset name typing
  • – Optional RDS encoder, dynamically updateable
  • – Selectable SSB (Single Sideband) stereo encoder
  • – HTTP push support for automation, such as dynamic RDS and streaming song titles, preset recall
  • – Dayparting (scheduled preset selection) (future feature)
  • – Studio Output with very low latency for talent monitoring
  • – Dual independent power supplies
  • – Composite pass-through (relay bypass) for your backup processor
Specifications

SPECIFICATIONS

Frequency Response

  • /-0.5dB 20Hz to 15kHz, 17.5kHz in extended mode

Signal to Noise Ratio

  • Greater than -80dBu de-emphasized, 20Hz to 15kHz

System Distortion

  • Less than 0.01% THD below pre-emphasis, inaudible above

Stereo Separation

  • 65dB minimum, 20Hz to 15kHz, 70dB typical

Digital Output Level

  • Adjustable from -24.0dBFS to 0.0dBFS in 0.1dB increments

Stereo Baseband Output

  • Adjustable from -2dBU to 22dBU (0.1dB increments) into 600-Ohms, 20-Ohm output impedance

A/D Conversion

  • Crystal Semiconductor CS5361, 24 bit 128x over-sampled delta sigma converter with linear-phase anti-aliasing filter.
  • Pre-ADC anti-alias filter, with high-pass filter at <10 Hz

D/A Conversion

  • Crystal Semiconductor CS4391, 24-bit, 128x oversampled

External Sync Input

  • Per AES11 Digital Audio Reference Signal (DARS), reference for digital output sample rate. Range is 32kHz to 96kHz.

Analog I/O

  • Two balanced, EMI filtered XLR connectors

Stereo Generator Connections

  • Four 75-Ohm BNC female, two inputs, two outputs
  • (FM style only) AES/EBU In & External Sync

Digital I/O

  • AES/EBU via four XLR connectors for Main and Aux Digital programs (two stereo in, two stereo out)

Ethernet

  • Shared RJ45 supporting 100 and 1000 BASE-T Ethernet connections

Power Requirements

  • 100-264 VAC, 47-63Hz autosensing

Power Connector

  • IEC male, detachable 3-wire power cords supplied

Power Supply

  • Internal dual redundant, hot-swappable

Environmental

  • Operating: 0 to 50 degrees C
  • Non-operating: –20 to 70 degrees C.
Video

Additional information

Weight 13 kg
Dimensions 60 × 50 × 20 cm
