Description

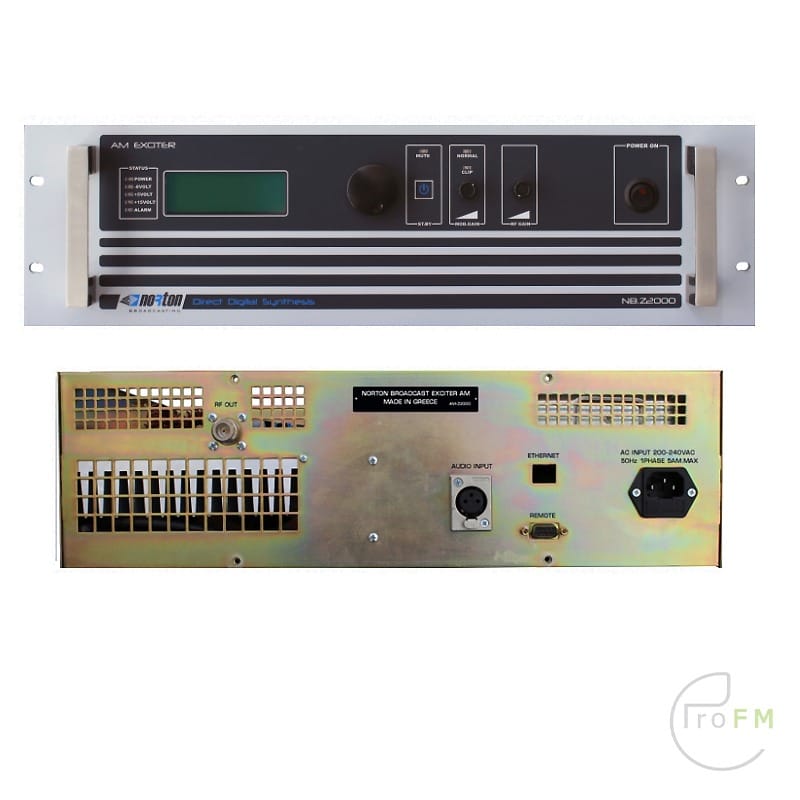

Norton Broadcast 100 W AM DDS TRANSMITTER NB.Z2000/ AM Broadcast.
The NB.Z2000 is a compact size transmitter for AM frequencies with excellent functionality, with an adjustable RF output of 100W RMS (400W PEP). Direct digital synthesis technology guarantees a pure and stable RF carrier frequency. The frequency synthesizer with dial-up frequency selection allows fast tuning to a new carrier frequency. It is an ideal solution for short-range radio stations.
This state-of-the-art DDS-controlled Am transmitter is specially made for LPAM stations
And excellent for use in Low Power arrangement.
The power is adjustable from 0 to 100 watts of carrier power.
Type transmitter: AM EXCITER (DDS)
RF Power output: 100W RMS (400W PEP)
RF Output connector: N-Type
Variable output: From 0 to 100 watts RMS (0 to 400 watts P.E.P)
Output impedance: 50 Ohm.
Efficiency: 62%
Frequency range: 500KHz – 2000KHz.
Frequency step: 100kHz – 10KHz – 1KHZ (SELECTIVITY)
Frequency stability: /- 2 ppm over temperature range.
BFO Calibration : -50Hz to 50Hz.
Spurious and Harmonic: -73 DB Relative to carrier.
Filter Audio: NRSC
Basic standart version: 10KHz. (Option: 4-6Khz)
Total Harmonic Distortion: Better than 2,8% (THD), 30Hz για 10,00Hz at modulation referenced 100 Watt.
Modulation capability: 110% Positive peak modulation at rated power.
Working A.C input: 190-240 V.ac 1Phase, 50Hz-60Hz.
- Description
-
Norton Broadcast 100 W AM DDS TRANSMITTER NB.Z2000/ AM Broadcast.
The NB.Z2000 is a compact size transmitter for AM frequencies with excellent functionality, with an adjustable RF output of 100W RMS (400W PEP). Direct digital synthesis technology guarantees a pure and stable RF carrier frequency. The frequency synthesizer with dial-up frequency selection allows fast tuning to a new carrier frequency. It is an ideal solution for short-range radio stations.
This state-of-the-art DDS-controlled Am transmitter is specially made for LPAM stations
And excellent for use in Low Power arrangement.
The power is adjustable from 0 to 100 watts of carrier power. - Specifications
-
Type transmitter: AM EXCITER (DDS)
RF Power output: 100W RMS (400W PEP)
RF Output connector: N-Type
Variable output: From 0 to 100 watts RMS (0 to 400 watts P.E.P)
Output impedance: 50 Ohm.
Efficiency: 62%
Frequency range: 500KHz – 2000KHz.
Frequency step: 100kHz – 10KHz – 1KHZ (SELECTIVITY)
Frequency stability: /- 2 ppm over temperature range.
BFO Calibration : -50Hz to 50Hz.
Spurious and Harmonic: -73 DB Relative to carrier.
Filter Audio: NRSC
Basic standart version: 10KHz. (Option: 4-6Khz)
Total Harmonic Distortion: Better than 2,8% (THD), 30Hz για 10,00Hz at modulation referenced 100 Watt.
Modulation capability: 110% Positive peak modulation at rated power.
Working A.C input: 190-240 V.ac 1Phase, 50Hz-60Hz. - Video
-
