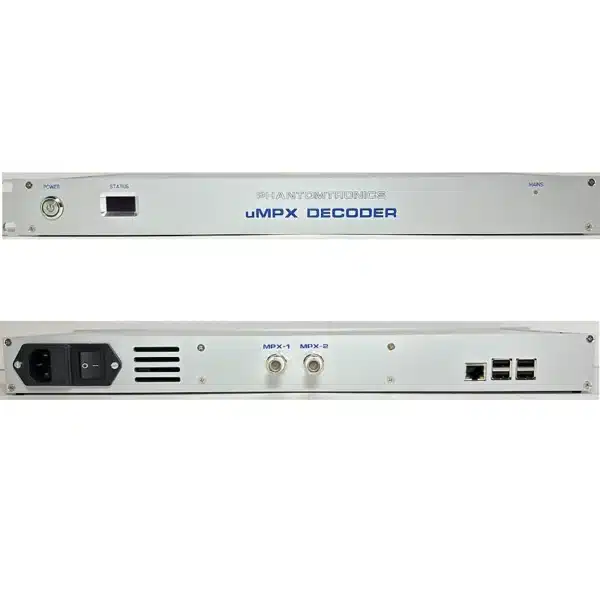

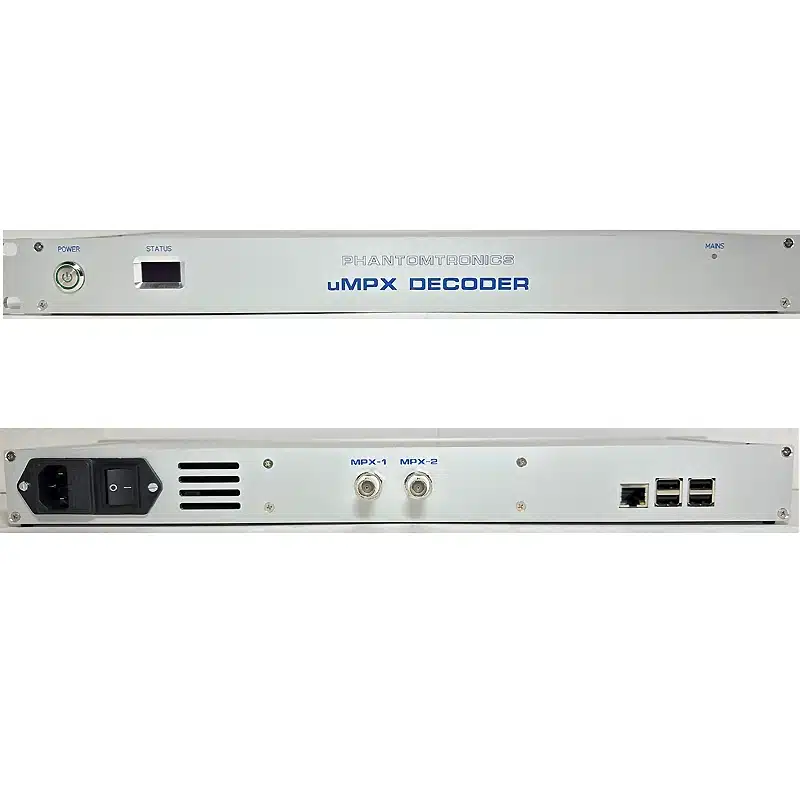

MicroMPX Hardware Decoder Rackmount
uMPX is a revolutionary STL replacement for software and transpor ts your ITU-compatible MPX signal via IP.
Thimeo Audio Technology is based in the Netherlands and has developed this software, but no hardware.
Phantomtronics makes MicroMPX hardware solutions based on ARM computers.
Pros: reliable, Linux-based operating system, low power consumption (max. 10 W), small
This is the19-inch rack-mount version with redundant power supply
Introducing the 19-inch MicroMPX Decoder, delivering high-quality MPX over IP encoding in a compact form.
This innovative solution replaces analog STL systems, providing seamless integration and superior audio performance.
Upgrade your broadcast operations with the MicroMPX Decoder for efficient, reliable, and cost-effective signal transmission.
Main Features:
- Low Bandwidth MPX from 320kb/s (Optional MicroMPX+ from 176kb/s)
- Decoder: Build-in MPX backup player in case of MicroMPX steam failure
- Decoder: MPX output BNC output level adjustable via webinterface
- Build-in Web interface for configuration, monitoring and updating
- Build-in SNMP server for remote monitoring
- Build-in SSH server for remote maintenance
- Security: Webinterface login; IP-Whitelist; MPX-Stream password protection
- Multi-norm Power Supply Adapter included
- Build-in Medical grade Power Supply Unit
- Build-in Uniteruptable Power Supply Unit (approx 8 Hr)
- Optional: Dual network adapter for automatic seamless stream switching in case of network failure
- Optional: GPS Receiver for SFN applications
NOTE!
MicroMPX-license is NOT standard Included! License can be purchased as an option.
So just to be clear, for a full set you need Hardware AND Software licences.
