Description

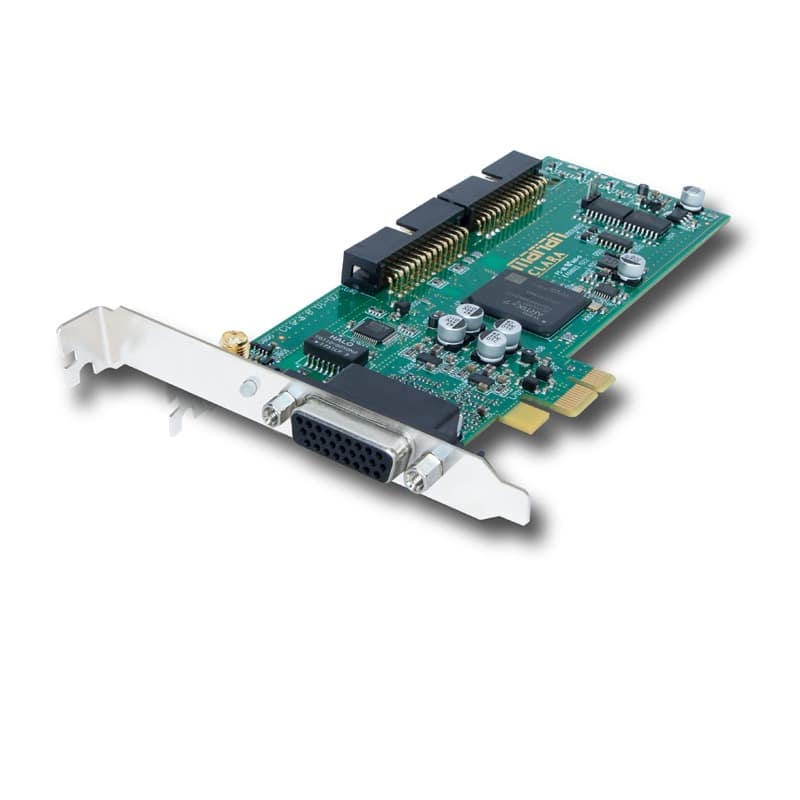

Designed specifically for full-time operation in small desktop and server computers, this low-profile system provides a compact digital interface including sample rate converters. The Clara D1 proves to be particularly reliable in professional environments such as broadcast and mastering.
Switchable Samplerate Converter (SRC)
The SRCs, which can be switched on via software, allow any digital input signal to be fed into the sound system regardless of samplerate and clock settings. Thus, even without separate synchronization lines, any digital devices may be connected effortlessly.
Sound system with a +
The “+” version includes an extension that adds a word clock input and output and 2 MIDI inputs and outputs to the sound system. This expansion card is connected to the sound card via a ribbon cable and can therefore be freely positioned in one of the slots of the computer housing.
Fast and Reliable Multi-Client Driver Suite
The continuously enhanced driver includes multi-client support for ASIO 2.2 as well as multi-channel WDM audio / WASAPI with the lowest latencies in all software environments. This ensures that multiple audio applications can access the sound system simultaneously via the same or different driver interfaces.
Features
- 24 Bit / 192 kHz Resolution
- 1 AES/EBU In- and Output (4 channels)
- 2 MIDI In- and Outputs (“+” version)
- Low Profile for Server-, Mini- oder Media Computer* long slot bracket for normal cases included
- Balanced XLR Connectors
- Switchable Input SRC with 144 dB Dynamic Range
- Compatible with current Thunderbolt PCIe Adapters
- Wordclock / Superclock Output (“+” version)
- free life-long quality support
Technical specifications
- PCIe Audio Interface
- 1 Lane (PCIe 1x) according to PCI Express Base Specification 2.1
- Temperature Range: -25 °C bis +60 °C
- PCIe Busmaster DMA with Direct ASIO Support
- Sample Resolutions of 8 to 32 Bit towards the Audio Application
- Switchable Input SRC with 144 dB(A) Dynamic Range and 1:16 / 16:1 Conversion
- Beast DSP powered
- 64 Freely configurable DSP Channels: Input, TDM- and Playsignals
- Flexible Routing of Input- and Playback Signals to Outputs
- TDM SyncBus with 32 Channels
- Multi-Card Support
Digital Inputs
- 1 AES/EBU (2 Channels)
- Up to 32 Channels via TDM SyncBus
- XLR to D-Sub Adapter Cable
- BNC WordClock (“+” version)
- 2x MIDI (“+” version)
Digital Outputs
- 1 AES/EBU (2 Channels)
- Up to 32 Channels via TDM SyncBus
- XLR to D-Sub Adapter Cable
- BNC WordClock (“+” version)
- 2x MIDI (“+” version)
- Description
- Marian Clara D1 Low Profile AES/EBU Soundcard

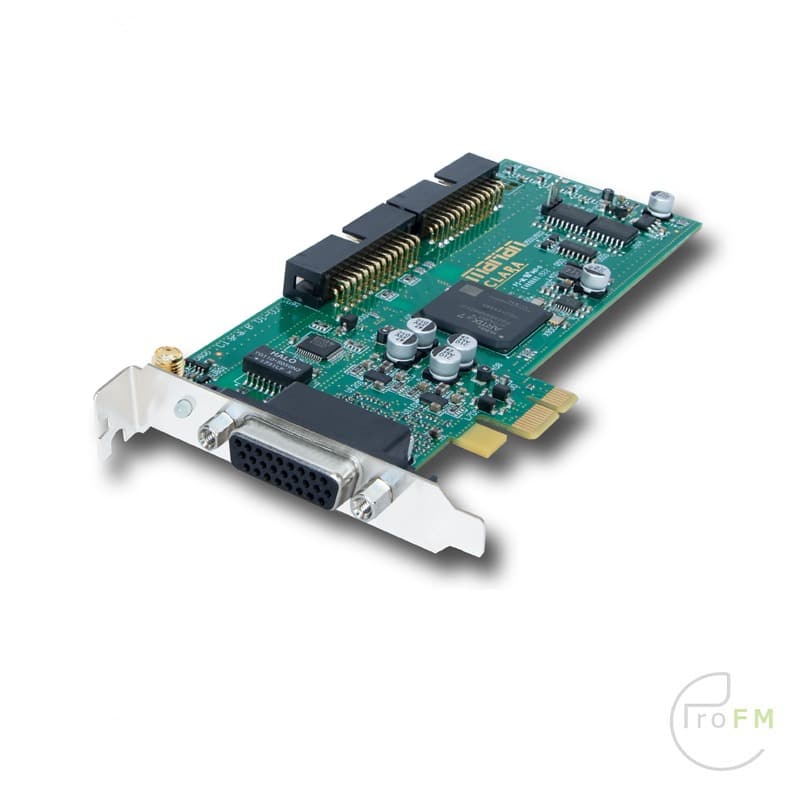

Designed specifically for full-time operation in small desktop and server computers, this low-profile system provides a compact digital interface including sample rate converters. The Clara D1 proves to be particularly reliable in professional environments such as broadcast and mastering.
