Description

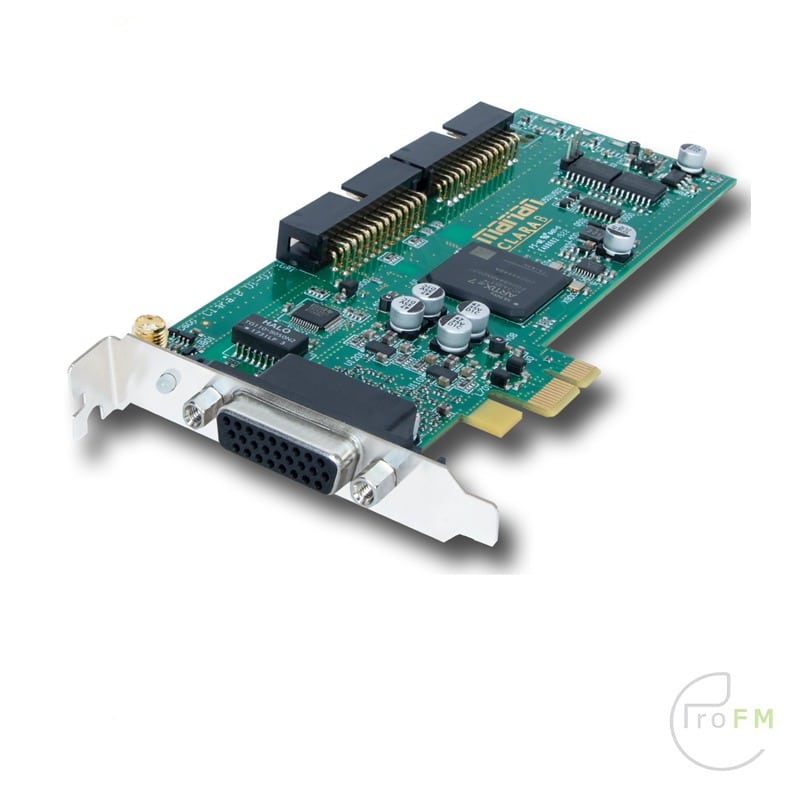

Marian Clara B Soundcard
Small form factor with top quality sound and craftsmanship make the Clara B ideal for mastering and broadcasting.
Available second quarter 2024.
Designed specifically for full-time operation in small desktop and server computers, this low-profile system delivers a useful mix of balanced analog and digital interfaces, sample rate converters, and configurable analog levels. The Clara B proves to be particularly versatile and reliable in professional environments such as broadcast and mastering.
Analog and digital excellence
With 128 dB dynamic range, the analog ports of the Clara B play in the top league of sound. The 32-bit AD/DA converters within a finely tuned analog circuit offer unsurpassed sonic pleasure. A high level of up to +24 dBu provides sufficient headroom at the inputs and sufficient signal at the outputs for any connected device.
Switchable Samplerate Converter (SRC)
The SRCs, which can be switched on via software, allow any digital input signal to be fed into the sound system regardless of samplerate and clock settings. Thus, even without separate synchronization lines, any digital devices may be connected effortlessly.
Sound system with a +
The “+” version includes an extension that adds a word clock input and output and 2 MIDI inputs and outputs to the sound system. This expansion card is connected to the sound card via a ribbon cable and can therefore be freely positioned in one of the slots of the computer housing.
Fast and Reliable Multi-Client Driver Suite
The continuously enhanced driver includes multi-client support for ASIO 2.2 as well as multi-channel WDM audio / WASAPI with the lowest latencies in all software environments. This ensures that multiple audio applications can access the sound system simultaneously via the same or different driver interfaces.
Features
- 24 Bit / 192 kHz Resolution (digital connections)
- 32 Bit / 384 kHz Resolution (Analog Connectors)
- 1 AES/EBU In- and Output (4 channels)
- 2 Analog In- and Outputs (4 Channels)
- 2 MIDI In- and Outputs (“+” version)
- Auto Mute of Outputs on Start-up of Computer
- Low Profile for Server-, Mini- oder Media Computer* long slot bracket for normal cases included
- Balanced XLR Connectors
- Switchable Input SRC with 144 dB Dynamic Range
- Beast DSP Mixer with EQ
- Cascadeable (via TDM SyncBus)
- Compatible with current Thunderbolt PCIe Adapters
- Wordclock / Superclock In- and Output (“+” version)
- Windows Drivers
- free life-long quality support
Technical specifications
- PCIe Audio Interface
- 1 Lane (PCIe 1x) according to PCI Express Base Specification 2.1
- Temperature Range: -25 °C bis +60 °C
- PCIe Busmaster DMA with Direct ASIO Support
- Sample Resolutions of 8 to 32 Bit towards the Audio Application
- Switchable Input SRC with 144 dB(A) Dynamic Range and 1:16 / 16:1 Conversion
- Beast DSP powered
- 64 Freely configurable DSP Channels: Input, TDM- and Playsignals
- Flexible Routing of Input- and Playback Signals to Outputs
- TDM SyncBus with 32 Channels
- Multi-Card Support
- Sync sources: Internal, 1x AES/EBU, TDM SyncBus
- Other Synchronization Sources: Wordclock (MWX Version)
Analog Inputs

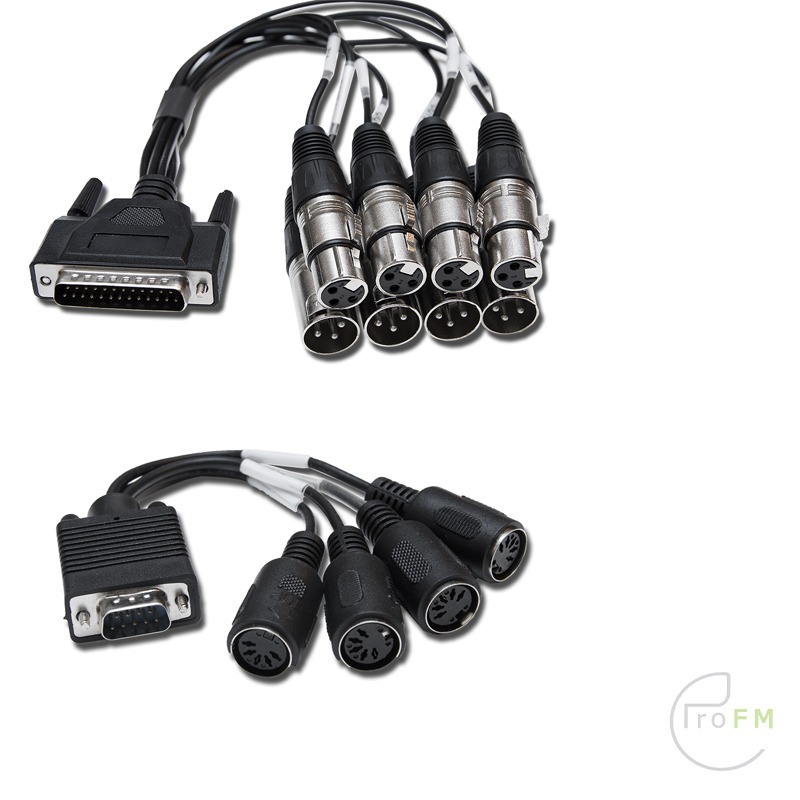

- 2 Channels via XLR D-Sub Adapter Cable
- Max. Level: +15 dBu / +24 dBu Configurable ex Factory
- Impedance: 15 kOhm
- SNR: 125 dB(A)*as per data sheet. measurement following
- THD: 115 dB(A)as per data sheet. measurement following
Analog Outputs
- 2 Channels via XLR D-Sub Adapter Cable
- Max. Level: +15 dBu / +24 dBu Configurable ex Factory
- Impedance: 75 Ohm
- SNR: 128 dB(A)*as per data sheet. measurement following
- THD: 120 dB(A)*as per data sheet. measurement following
Digital Inputs
- 1 AES/EBU (2 Channels)
- Up to 32 Channels via TDM SyncBus
- XLR to D-Sub Adapter Cable
- BNC WordClock (“+” version)
- 2x MIDI (“+” version)
Digital Outputs
- 1 AES/EBU (2 Channels)
- Up to 32 Channels via TDM SyncBus
- XLR to D-Sub Adapter Cable
- BNC WordClock (“+” version)
- 2x MIDI (“+” version)
