Jünger Audio D*AP4 VAP – 2 Channel Voice Audio Processor

Jünger Audio D*AP4 VAP – 2 Channel Voice Audio Processor

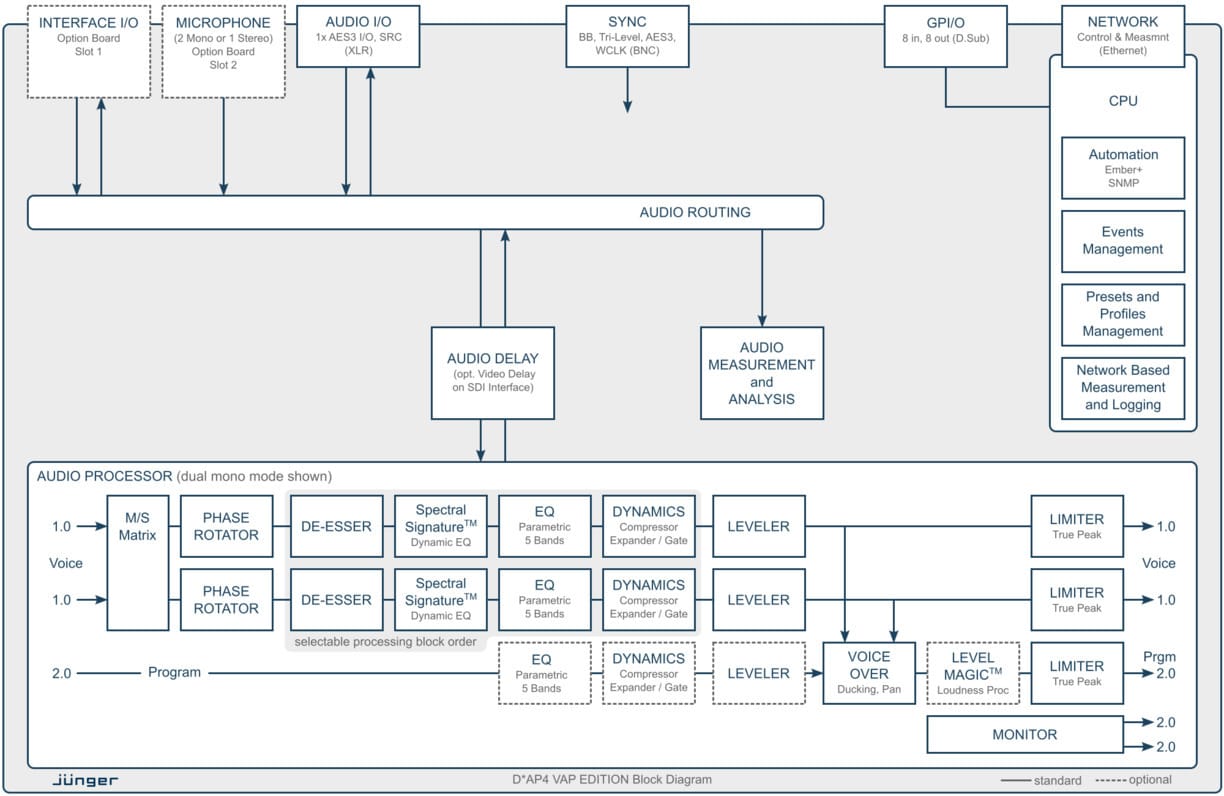

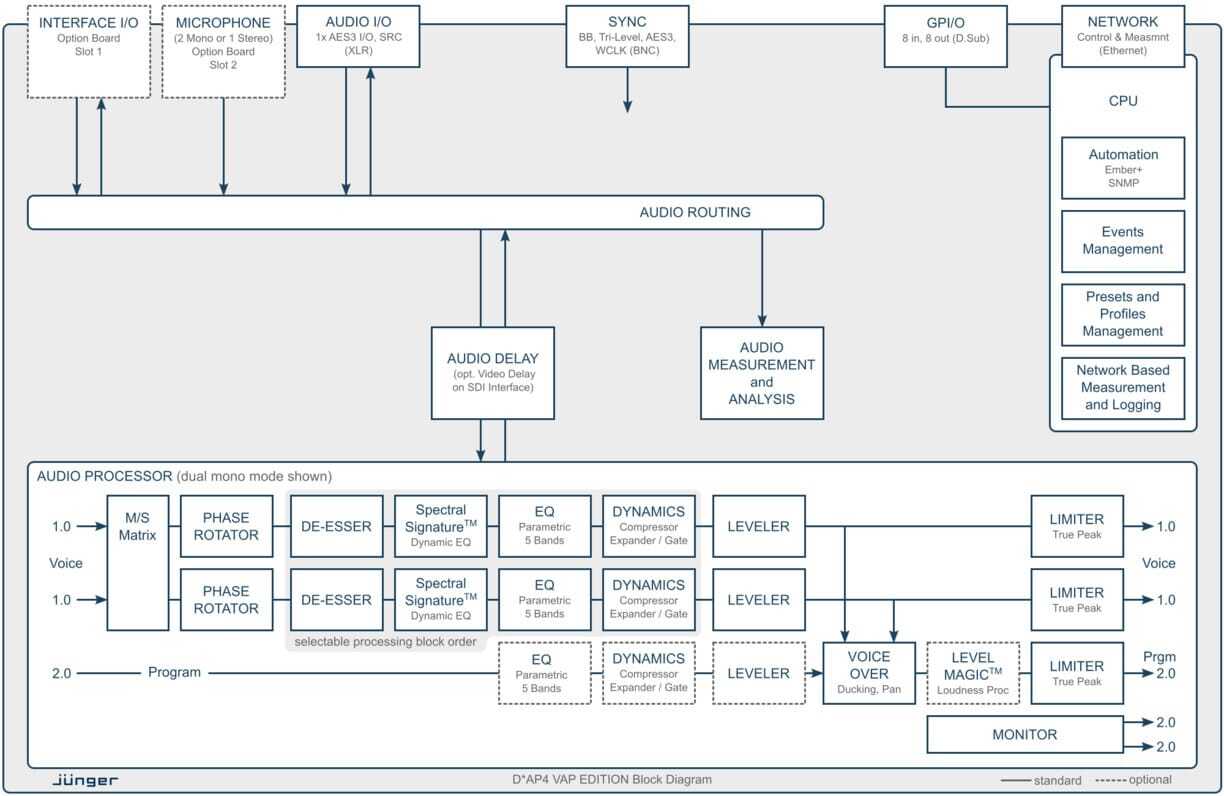

Aimed at applications including radio broadcast, TV voice over and audio post production, the D*AP4 VAP is designed to ensure that vocal quality and accuracy is always maintained at its best from program to program and day to day. The D*AP4 VAP features a two channel voice signal path and separate stereo program path for either standalone voice processing, or to provide automatic or manual integration of voice and program signals. An optional microphone pre-amp allows direct input to the dedicated voice path to maintain complete control of the overall voice presentation. The range of on-board signal processing comprises of:

• Mid/Side Matrix

As a creative tool, the M/S Matrix uses two mics placed closely together to capture and produce variable width stereo recordings.

• Phase Rotator

The Phase Rotator automatically detects imbalanced audio waveforms and restores symmetry to prevent transients that may unnecessarily trigger downstream processing.

• De-Esser

The De-Esser greatly reduces the effect of excessive sibilance from spoken voices.

• Parametric and Dynamic EQ

A 5-band Parametric EQ is coupled with Spectral Signature dynamic equalizer, a powerful creative tool allowing adaptive control of spectral balance. Incoming audio is analyzed and its spectral structure is compared to a predetermined “reference” curve. This allows dynamic EQ corrections to be applied only if necessary to achieve a consistent sound image and tonal balance.

• Dynamics

In addition to a traditional upward compressor, a threshold based downward compressor is also included. Both types adaptively adjust timing parameters based on the incoming audio structure. An expander/gate effectively removes low-level noise without introducing artifacts.

• Voice Leveler

To assist in loudness based programming, a voice leveler can be used to pre-condition the voice component prior to combining it with the program element.

• Voice Over

Voice Over provides seamless integration of voice and program content in situations such as continuity announcements or video description with automatic ducking.

• Level Magic Loudness Management

Based on a unique multi-loop control principle, the optional Level Magic algorithm provides adaptive wideband loudness control with exceptionally high audio quality that is free of coloration, pumping, distortion or modulation effects. The optional J*AM software displays input v/s output levels and can log long term values to a destination folder anywhere on the network.

• System Integration

All system parameters are remotely accessible allowing the unit to be integrated and remotely operated by broadcast control systems. An advanced built-in Event Management tool allows the remote loading of parameter presets either by hotkeys on the optional X*AP RM1 remote panel, by 8 onboard GPI/O’s or by network commands using the Ember+ control protocol. This makes it easy to assign individual settings to each user and re-call them instantly.

• Web Configuration

A web interface allows easy and intuitive setup and configuration from anywhere in your network. On screen metering and measurements are available for easy reference.

• Mobile User Interface

A dedicated “mobile” UI is tailored specifically for smaller displays such as tablets or smartphones and offers fast access to user profiles and commonly required functions such as Cough Cut and Voice Over.

• Interfaces and System Security

Audio I/O’s range from on board native AES/EBU to optional 3G SDI including video delay, MADI, Dante® audio over IP, analog and high quality mic pre-amps. Power fail bypass relays are fitted as standard and with dual redundant PSU’s and SNMP integration, the unit ensures maximum operational safety and peace of mind for today’s critical 24/7 radio and TV broadcast or audio production facilities.

Features:

• Dual mono or stereo voice channel configuration
• 2 channel program path in addition to voice channels
• Algorithms specialized for voice processing
• Sophisticated user profile management
• De-Esser
• 5 band Parametric EQ and Spectral SignatureTM dynamic EQ
• Dynamics with upward/downward compressor and expander/gate
• Voice leveler
• Voice Over functionality
• True peak limiting
• Optional Level Magic loudness management compliant with all current standards and recommendations
• Optional loudness logging software (J*AM)
• Ethernet connectivity for set up and control via web browser
• External control via network or GPI/O’s
• Power-fail bypass relays

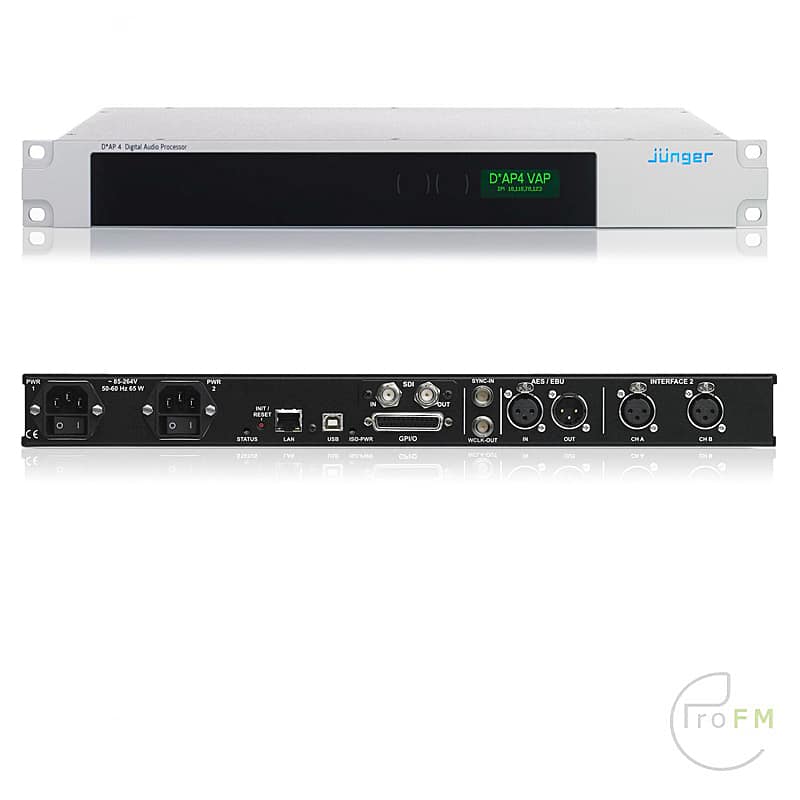

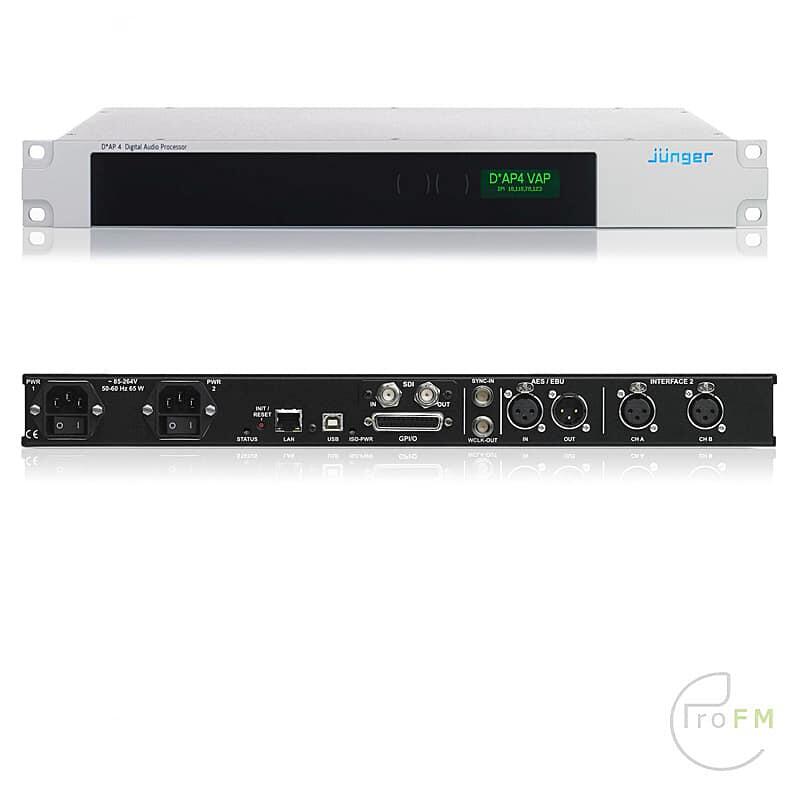

• 19”, 1RU device, redundant PSU

General
• 2 channel voice processor (mono or stereo)
• 2 channel program path processing
• 2 channel monitor output
• Expandable by hard and software options

Audio Sample Rate
44.1, 48, 88.2, 96kHz, (32 … 196kHz @ input with SRC)
±150ppm sync input capture, ±25ppm master-sync stability
Relevant specifications comply with AES3-X-2009, IEC 60985 and
AES11-2009
2 channels (1 stereo input), XLR-3 connector
24bits, transparent forwarding of PCM and compressed audio (w/o SRC)
24bits, PCM, sample rate converter (SRC) activated
Impedance 110Ohm, differential
Input level 0.3 … 5Vpp @ 110Ohm differential

AES/EBU Input
Sample Rate Converter (SRC): THD+N -120dB @ 0dBFS, 1kHz
Latency < 0.3ms

AES/EBU Output
Relevant specifications comply with AES3-X-2009, IEC 60985 and AES11-2009
2 channels (1 stereo output), XLR-3 connector
24bits, transparent forwarding of PCM and compressed audio
Impedance 110Ohm, differential
Output voltage 3Vpp (typ.) @ 110Ohm differential
Power fail relay bypass between AES/EBU input and output (can be deactivated by jumper)

Sync Input

Multi-standard synchronization interface for AES/EBU, wordclock or videosync (black burst, tri level), complies with AES11-2009 and relevant audio
or video standards
Connector type: BNC
AES/EBU input 0.3 … 5Vpp @ 75Ohm single-ended
Wordclock input 1 … 5Vpp @ 75Ohm single-ended
Video-sync input 1Vpp (nom.) @ 75Ohm single-ended
Rates supported: 23.975, 24, 24.975, 25, 29.97, 30, 49.95, 50, 59.94, 60fps (SD and HD)
On-board audio ports and master-sync capable option boards may also be selectable as sync source

Sync Output
Wordclock output 2.4V (typ.) @ R = 75Ohm single-ended
Word clock output, complies with AES11-2009
Connector type BNC
Network Interface RJ45 connector, 10/100Mbit Ethernet auto sense, full duplex, auto MDI/X
USB Interface USB 2.0 connector to internal console interface
GPI Signals 8 general purpose inputs (GPI), divided into 2 groups with separate common signal, isolated
Connector type D-Sub25 connector female, same for GPO
Input conditions 3 … 24Vdc, < 5mA
Auxiliary supply 5V (nom.), 200mA (max.), isolated

GPO Signals
8 general purpose outputs (GPO), SPST, divided into 2 groups with
separate common signal, isolated
Connector type D-Sub25 connector female, same for GPI
Output conditions 24Vac/dc (max.), 120mA (max.)

Technical data
Audio :24bit sigma-delta A/D-converter
Audio Sample Rate :44.1, 48, 88.2, 96kHz
2 channels, selectable for microphone or line level
Connector type XLR-3

Inputs
Input level (max.) (0dBFS equiv.)
Mic: 14dBu @ 0dB gain
Line: 22dBu @ 0dB gain, pad attenuation -10dB
Impedance Mic: 9kOhm (typ.), differential
Line: 20kOhm (typ.), diff., pad attenuation -10dB
THD+N -88dB @ -1dBFS, 1kHz, 0dB gain
Dynamic range > 110dB (RMS)
Crosstalk attenuation > 110dB @ 1kHz (typ.)
CMRR > 60dB @ 1kHz (typ.)
Equivalent input noise -126dBu (RMS) (typ.) @ 65dB gain
Frequency response 20Hz … 22kHz (< ±0.1dB) @ 48kHz
20Hz … 43kHz (< ±0.1dB) @ 96kHz
Preamp gain 0dB, 10 … 65dB in 1dB steps
Pad attenuation -10dB
Phantom Power 48V (nom.) enable per input channel, individual short-circuit protection
General Features
• Floating, balanced analog inputs
• Electrical isolation between both channels and device
• Digitally controlled input gain 0 … 65dB

Expansion Slots
1 general purpose expansion slot for option boards, 1 dedicated expansion slot for 2 microphone inputs [O_DAP_AMIC_a]

Power Supply
Dual power supply, automatic fail over, 85 … 264Vac, 50 … 60Hz, 58W (max.)

Environmental
Operating temperature 0 … 50ºC, fan cooled,
Non-operating -20 … 70ºC,
Humidity < 90%, non-condensing

Physical
19″, 1 RU, 27 cm depth, net weight ca. 5kg, shipping weight ca. 7.5kg
