Description

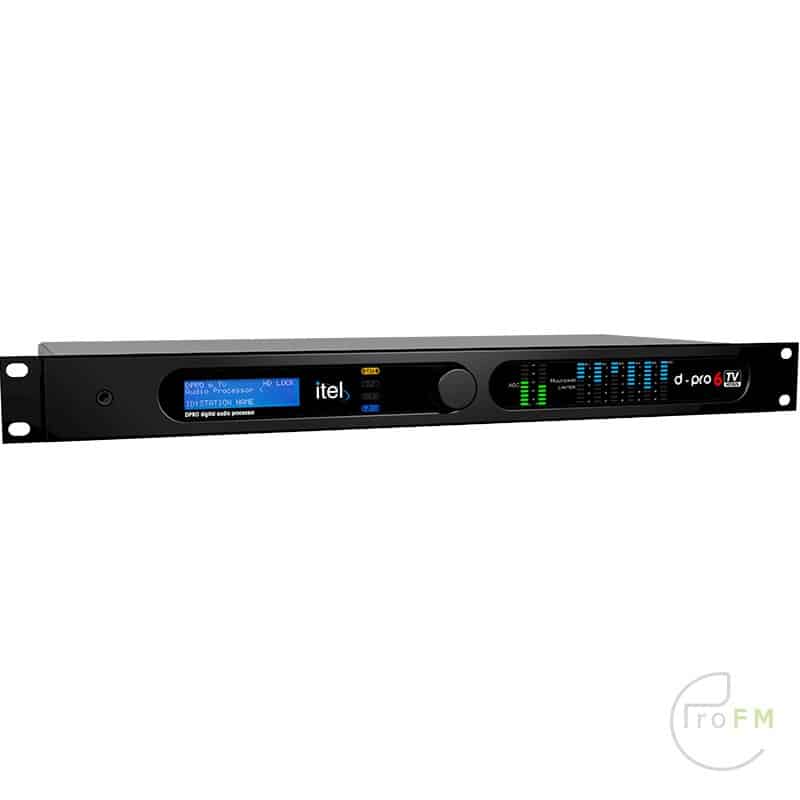

Itel DPRO6 6 Band TV Digital Audio Broadcast Processor
D-PRO6 TV is a digital multiband audio processor optimized for television broadcasting.
The audio processing chain comprises a two bands AGC which feeds the six bands limiter-compressor, followed by a final clipper-limiter operating at 96KHz, optimized for distortion masking, thus obtaining a cleaner and clipping artifacts free sound.
The audio processing are realized through DSPs, allowing a stable operation over time and the possibility to implement new functions through software updates.
The loudness limiter can equalize the perceived loudness among different audio program sources such as live shows, commercials, films, music videos.
It operates according to the ITU-R BS.1770 standard.
The D-TV version is equipped with SDI audio embedder-deembedder with automatic bypass in case of failure.
This version can process the audio stream already embedded into the SDI (SD – HD – 3G) signal, or can be used as an audio embedder to insert the audio coming from an external source into the SDI signal.
An adjustable delay line will help in lip-syncing the embedded audio to the incoming video.
All outputs will be bypassed to their respective inputs in case of malfunction.
Analog audio input
Sampling frequency 48KHz/24bits
Input level +12/-12dBu
XLR connectors, electronically balanced
Digital audio input
Accepts AES/EBU and SPDIF sample rates from 32 to 96KHz, XLR connector with balanced transformer
Analog audio output
Output level +12/-12dBu
XLR connectors, electronically balanced
Digital audio output
AES/EBU 48KHz, with balanced transformer
Headphones output
1/4″ front panel jack
Output: 100mW RMS over 50 ohm
Latency
Audio processor 8mS
SDI Interface
compatible with SD / HD / 3G formats
1 SDI BNC 75 ohm input
3 SDI BNC outputs, one with auto bypass in case of equipment failure
Loudness control ITU-R BS.1770 standard
Remote control
All functions can be managed remotely with an included software.
Interfaces
RS-232 (standard on all models)
Ethernet streaming card (optional)
Ethernet UDP card (optional)
Power supply
100-240VAC 50/60Hz
Physical
1 x 19″ rack unit
44mm x 483mm x 156mm
Weight 2,5 Kg
- Description
-
Itel DPRO6 6 Band TV Digital Audio Broadcast Processor
D-PRO6 TV is a digital multiband audio processor optimized for television broadcasting.
The audio processing chain comprises a two bands AGC which feeds the six bands limiter-compressor, followed by a final clipper-limiter operating at 96KHz, optimized for distortion masking, thus obtaining a cleaner and clipping artifacts free sound.
The audio processing are realized through DSPs, allowing a stable operation over time and the possibility to implement new functions through software updates.
The loudness limiter can equalize the perceived loudness among different audio program sources such as live shows, commercials, films, music videos.
It operates according to the ITU-R BS.1770 standard.The D-TV version is equipped with SDI audio embedder-deembedder with automatic bypass in case of failure.
This version can process the audio stream already embedded into the SDI (SD – HD – 3G) signal, or can be used as an audio embedder to insert the audio coming from an external source into the SDI signal.An adjustable delay line will help in lip-syncing the embedded audio to the incoming video.
All outputs will be bypassed to their respective inputs in case of malfunction.
- Specifications
-
Analog audio input
Sampling frequency 48KHz/24bits
Input level +12/-12dBu
XLR connectors, electronically balancedDigital audio input
Accepts AES/EBU and SPDIF sample rates from 32 to 96KHz, XLR connector with balanced transformerAnalog audio output
Output level +12/-12dBu
XLR connectors, electronically balancedDigital audio output
AES/EBU 48KHz, with balanced transformerHeadphones output
1/4″ front panel jack
Output: 100mW RMS over 50 ohmLatency
Audio processor 8mSSDI Interface
compatible with SD / HD / 3G formats
1 SDI BNC 75 ohm input
3 SDI BNC outputs, one with auto bypass in case of equipment failureLoudness control ITU-R BS.1770 standard
Remote control
All functions can be managed remotely with an included software.Interfaces
RS-232 (standard on all models)
Ethernet streaming card (optional)
Ethernet UDP card (optional)Power supply
100-240VAC 50/60HzPhysical
1 x 19″ rack unit
44mm x 483mm x 156mm
Weight 2,5 Kg
