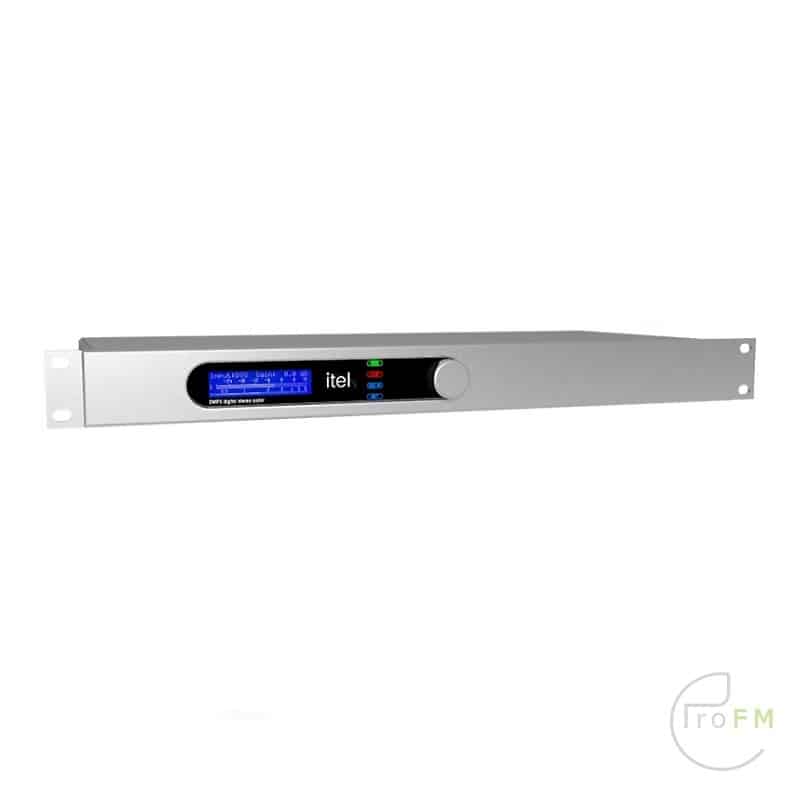

Itel DMPX Digital Stereo – RDS Encoder

DMPX is a stereo coder with RDS generator able to handle dinamic content as Radiotext and Radiotext plus. DSP-based digital architecture ensures excellent audio signal processing and high signal noise ratio.

The automatic back-up system between the various input sources makes it possible to easily achieve an effective redundancy of available signals. The software give you the possibility of quickly manage (and even remotely) all the operational parameters, save on disk and recall different basic configurations.

Designed for quick and complete use at emission sites, all parameters can be viewed and edited from the front panel, allowing technical personnel to be able to operate quickly even in the absence of PCs.

Features:

• Stereo Encoder
• Dynamic RDS encoder
• Audio backup system
• can be controlled via software (also remotely).

Analogic audio inputs

Samplerate 48KHz/24bits
Level 12/-12dBu
Connectors XLR, electronically balanced

Digital audio input

AES/EBU or SPDIF samplerate frequency from 32 to 96KHz
Connector XLR, balanced with transformer

Audio input on streaming IP

Format: AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
IP Streaming from TCP, UDP, RTP, Multicast
USB Flash Memory Interface
Level 12/-12dBu

Mpx input

Connector BNC
Input passthru 0 dBu

Composite output MPX

level 6/-6dBu (control step 0,1dB)

Preenphasys Off,50µS,75µS

Stereo separation >66dB

connector BNC
Reference output 19KHz, 1Vpp

RDS Coder

Block PI,TP,TA,DI,PS,RT,RT ,CT,AF-A,AF-B,PTY
Injection adjustable level from 0 to 6KHz, with step of 100Hz
Radiotext and dynamic PS controlled by software (MS Windows) included

RDS output level

0-1Vpp

Software e remote control

Software included for operative systems Windows XP, 7,8.x,10
RS-232 connector DB9F
Ethernet 10/100 connector RJ45

Power supply

100-240VAC 50/60Hz

Dimensions and Weight

1 rack unit 19″ (44mm x 483mm x 156mm)
2Kg
