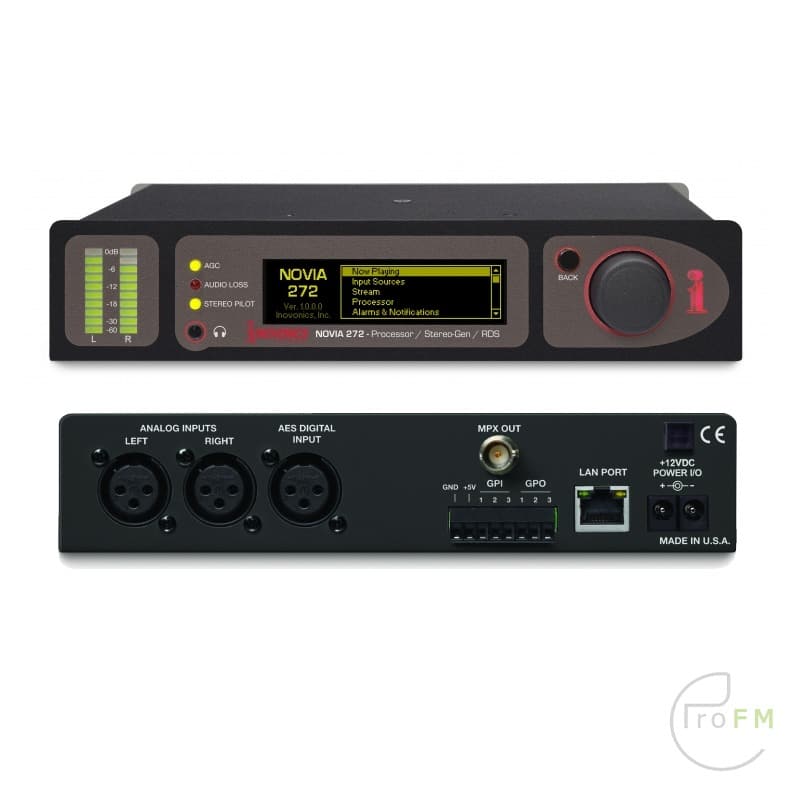

Inovonics 272 NOVIA FM Stereo Processor/FM Broadcast

With particular stress on ease of installation and use, the NOVIA 272 incorporates intuitive, multi-language menu-driven setup, as well as an IP/browser interface compatible with any PC or mobile device. Multiple factory and user-defined processing presets streamline the setup process. IP connectivity also provides local and email failure alarms, plus support for SNMP operation.

The NOVIA 272 accepts both program line and streaming inputs and allows remote IP audio monitoring.
The 272’s Web interface will allow complete setup and control of the unit from your PC, tablet or smartphone.

Features

• Gated and ‘windowed’ gain-riding AGC
• Unique, adjustable ‘syllabic leveling’
• 3 bands of dynamic compression with selectable crossovers
• 4 sections of parametric EQ plus an effective ‘Bass Punch’ feature
• Independent ‘Density’ and ‘Smooth/Loud’ adjustments
• GPIOs, Web/email/SNMP for controls and alarms
• Built-in real time clock and headphone jack
• Analog, AES-digital, streaming in; MPX/streaming out
• Complies with North American and European standards
• Adaptable HF limiting and variable composite processing
• Built-in RDS/RBDS; compatible with all automation
• Full function ‘responsive’ Web interface works on desktop and mobile devices

Frequency Response

20Hz-15kHz, ±0.25dB (with an appropriate de-emphasis network)

Distortion

0.02% THD in PROOF mod

Signal-to-Noise

Analog In: >82dB
AES Digital In: >90dB (with an appropriate de-emphasis network)

Pre-Emphasis

75μs or 50μs menu-selectable

Program Line Inputs

Analog: active-balanced (XLR) accepts line levels between –15dBu and 15dBu; 24dBu clipping
AES Digital: (XLR) accepts line levels between 0dBFS and –30dBFS at sampling rates between 32kHz and 96kHz
IP Streaming: accepts Icecast/SHOUTcast MP3, Ogg and AAC streams

Composite/MPX Output

75Ω (BNC); adjustable between 1V p-p and 6V p-p 6% – 12% stereo pilot injection; 3% – 8% RDS/RBDS subcarrier injection

Program Signal Latency (Delay)

Approx. 3.75ms

Network Port

TCP/IP network connection (RJ45) for remote setup / operation and in/out audio streaming; full support for SNMP control

GPIO Ports

3 GPI, 3 GPO with assignable functions and logic polarity

Headphone Jack

Front-panel (TRS) 3.5mm

Internal Test Tone Generator

20Hz-20kHz; variable frequency and amplitude

Alarms

Local (GPIO) closures, browser interface, SNMP and SMS/email alarms for analog, digital and stream audio loss; maintains daily, weekly, monthly logs

Scheduler

Dayparting is simplified with an onboard real-time clock and preset-selection programming.
AGC: ±15dB capture range; gated with dual-rate ‘windowed’ operation
Leveling: variable ‘syllabic’ 2:1 compression
EQ: 4-sections of parametric equalization
Bass ‘Punch’: variable bass enhancement
Compression: 3-bands with selectable crossovers, variable master and individual band drive controls, plus r.m.s./peak ‘density’ adjustment
Final Peak Control: no-clip feed-forward wideband limiting and independent FM pre-emphasis protection limiting
Composite Clipping: 0dB – 3dB adjustable MPX clipping depth (exclusive of stereo pilot and RDS/ RBDS subcarrier)

RDS/RBDS
Static & dynamic support for artist and song title display in PS and RT fields

Power Requirement

12VDC at 400mA (2.1mm x 5.5mm coaxial); inline switchmode power supply included

Mounting Options

An optional rack adapter mounts one or two NOVIA or other Inovonics half-rack units in a standard 19-inch, 1U rack space

Size and Weight

1.6”H x 8”W x 6”D; 5 lbs shipping weight
