Description

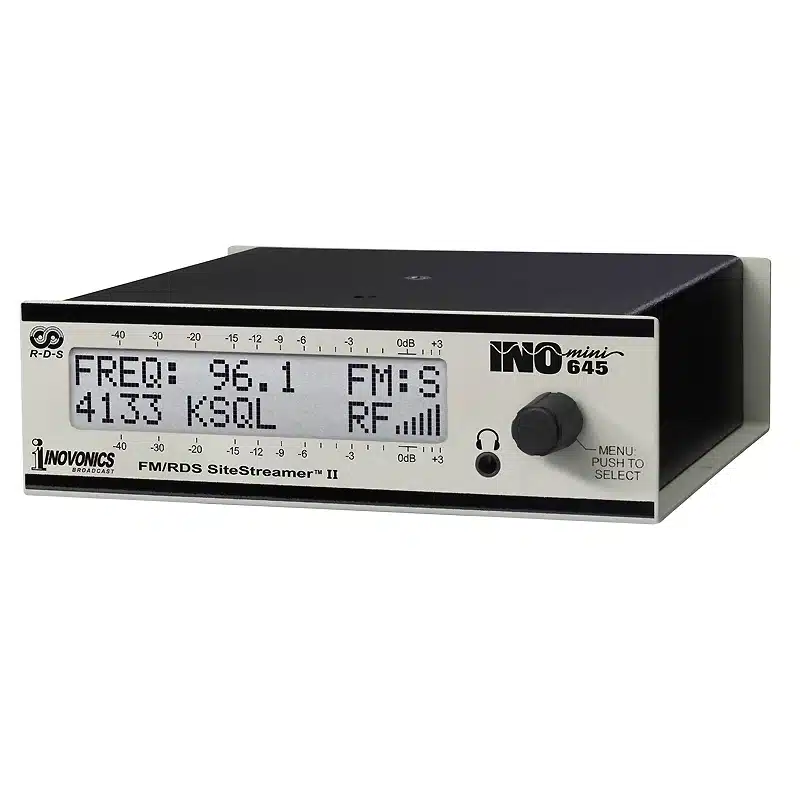

Inovonics INOmini 645 FM/RDS SiteStreamer II
The INOmini 645 FM SiteStreamer™ II is a new generation of SiteStreamer web-enabled receivers for remote signal monitoring. The 645 FM SiteStreamer II picks-up where its predecessor left-off with a sensitive SDR-based tuner, improved LCD display, high-quality streaming for multiple remote listeners, improved metering for both off-air and Auxilliary reception, more alarm options, 2 levels of password protection, and much, much more. The popular INOmini SiteStreamers are web-enabled receivers for remote signal monitoring. They´re great confidence monitors for remote transmitter or translator sites – allowing radio engineers and broadcasters to monitor their sites from any Web-enabled device such as – PC, Tablet, or SmartPhone.
Features
- Tunes the Extended FM band: 64MHz to 108MHz.
- Monitor both off-air radio and Aux audio levels simultaneously with meters.
- Enhanced audio streaming capabilities allowing up to 10 simultaneous remote listeners.
- Streaming is HE-AACv2 for improved audio quality and UDP streaming is supported for skimmers and recording.
- FM BandScanner that displays station RDS information.
- Aux Audio loss can be Alarmed.
- StationRotation™ – monitor all station presets by ‘round robin’ sequencing, each with its specific alarm parameters. Select which presets to include in StationRotation.
- Flashing-red front-panel alarms and rear-panel ‘tallies’ indicate RDS Loss or PI Error, Low Signal and Audio Program Loss.
- Password protection with two access levels.
- Remote firmware updates.
- User Manual is available on the Web interface.
Specifications
Tuning Range
Extended FM band: 64MHz to 108MHz in 100kHz steps.
Antenna Input
75-ohm ‘F’
Receiver Sensitivity
≤10uV for 50dB monaural SNR.
Audio Frequency Response
±1dB, 30Hz–15kHz; 50μs/75μs de-emphasis.
Program Line Input

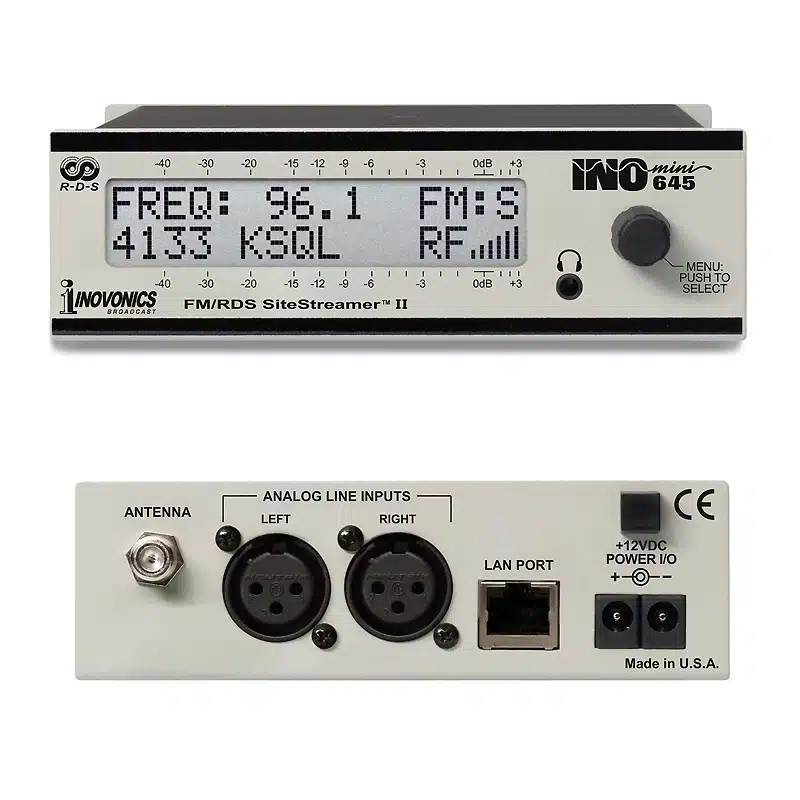

Active-balanced (XLR) left/right analog inputs; internal jumpering for +4dBu or –10dBu “zero-VU” levels; local and remote switching between off-air and line feeds.
Network Connection
LAN (RJ-45) jack accepts universal TCP/ IP connection to Local Area Network, and via router to the Internet.
Power Requirement
12VDC at 140mA (2.1mm x 5.5mm coaxial); inline switchmode power supply included.
Mounting Options
An optional rack adapter mounts one, two or three INOmini format units in a standard 19-inch, 1U rack space.
Size and Weight
1.6”H x 5.5”W x 5.5”D; 4 lbs. shipping weight.
Environmental
Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.
