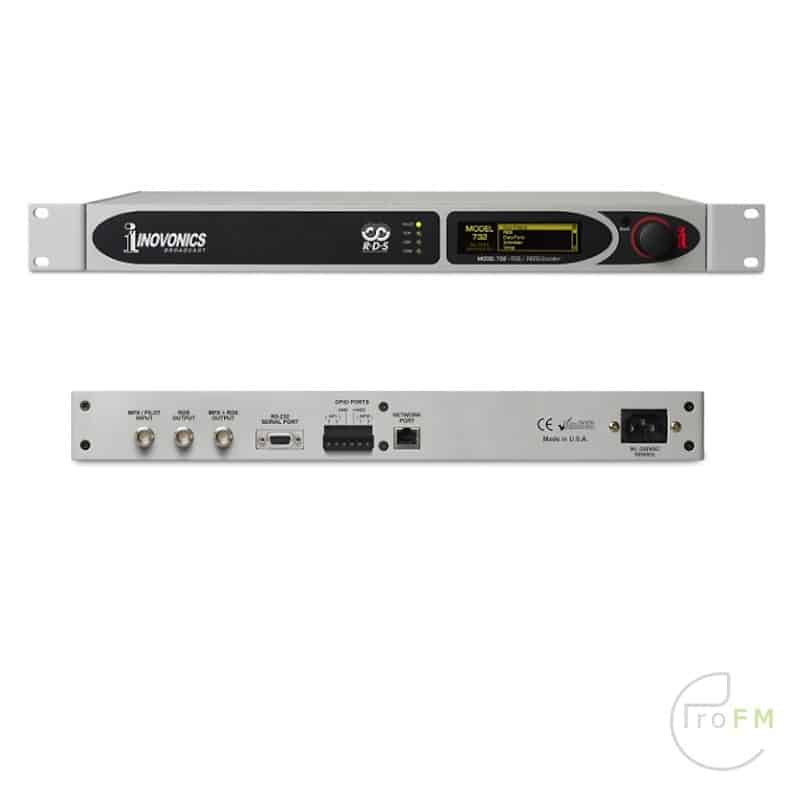

Inovonics 732 – Advanced Dynamic RDS Encoder/FM Broadcast

The new 732 Advanced Dynamic RDS Encoder takes RDS to new level adding greater funcionality, and incorporating the latest RDS technology.

The 732 the provides all the tools broadcasters need to ensure an engaging and dynamic RDS presence. It connects with virtually any playout system, broadcasting song title, artist information, station ID’s and much more to listener radios. With enhanced RT tagging with variable replacement capability.

The 732 is controlled in real-time via a dynamic Web interface or through a large front panel OLED display with easy to navigate menus. Email alarms for pilot loss and DPS/RT not updating. SNMP support. Firmware is remotely updatable via webserver.

Features

• Separate RDS and MPX RDS outputs for sidechain/loop through
• Assignable GPIO (2x in, 2x out)
• Built in webserver for control/monitoring of all parameters
• OLED display with easy to navigate menus
• Email Alarms for pilot loss and DPS/RT not updated. SNMP support.
• IP whitelisting for automation data ports
• UDP multicast support
• Firmware is remotely updateable via webserver

RDS Applications Supported

PS (Program Service Name) An 8-character station ‘street name’ or 128-character scrolling message (song info, promos, advertising, etc.)
PI (Program Identification) 732 automatically calculates PI codes for the US and Canada
PTY (Program Type) Identifies your station’s format
PTYN (Program Type Name) A further refinement of your type or style of programming
TP / TA (Traffic Program / Traffic Announcement) A utility that calls attention to critical traffic or other emergency situations. Some RDS radios automatically retune to these announcements, even overriding CD or MP3 playback
AF (Alternative Frequencies) Up to 25 frequency entries for rebroadcast ‘translators.’
RT (RadioText) A 64-character block of plain-text messaging that can be called-up on the faceplate of some RDS radios. RadioText is separate from, and in addition to, scrolling-PS messages
RT (RadioText Plus) An updated standard for song info display
CT (Clock Time and Date) The 732 sends time to RDS radios. The feature is set and updated automatically with an Internet connection
DI (Decoder Information) The mono/stereo data flag
M/S (Music/Speech Switch) The mixed-music or speech-only data flag

Scheduler

Up to thirty, PS, RadioText messages, or commands may be programmed for transmission at specified times on prearranged dates or recurring days of the week.

RDS Data Delay

Scrolling-PS, RT and RT message updates may be delayed in 1-second increments up to 200 seconds to match profanity and transmission diversity delays.

MPX Or Pilot Input

An unbalanced, bridging (BNC) input accepts either the composite/multiplex (MPX) signal (5V p-p, max.) or 19kHz TTL level pilot sync from the stereo generator. The 730 reverts to an internal crystal timebase for monaural transmissions.

RDS Output

An unbalanced, 75-ohm (BNC) outputs the RDS subcarrier to feed a RDS/SCA input.

RDS MPX Output

The RDS subcarrier (at 1/3rd the level of the RDS Output) is internally mixed with the MPX input and the combined signal appears at the encoder output at unity gain.

RDS Injection Level

Subcarrier level is adjustable from zero to 3.7V p-p.

Front-Panel Data Entry

The front-panel OLED and jog wheel allow on-site setup of all operating parameters.

Serial Data Port

A rear-panel RS-232 connector (DB-9) accepts static encoder programming and dynamic messaging from station automation. The 732 accommodates all common data rates between 300 and 115,200 baud.

LAN (IP-Network) Port

A rear-panel Network connector (RJ-45) conforms to TCP/IP networking protocols. Two TCP ports and two UDP port are provided connectivity from multiple data sources.
A built in HTTP server provides control and monitoring of all settings. Firmware updates can be uploaded directly to the unit.
SNMP support allows control and monitoring of all settings.
Emails can be sent for various alarm conditions.

TA Switching

The temporary TA flag is set either by a software command or with a contact closure through a rear-panel terminal strip. The 732 features a programmable TA-timeout utility to preclude TA flag violations.

Power Requirements

88VAC-264VAC, 48Hz-63Hz; (‘universal’); 12W

Size and Weight

· 23” x 16” x 2” (2U); 8 lbs
· 584mm x 406mm x 51mm ; 3.6 kg
