Inovonics 647 INOmini AM Site Streamer II

Call for price

Inovonics 647 INOmini AM Site Streamer II

The Inovonics 647 INOmini AM SiteStreamer II is a new generation of SiteStreamer web-enabled receivers for remote signal monitoring. The 647 AM SiteStreamer II has a sensitive SDR-based tuner, improved LCD display, high-quality streaming for multiple remote listeners, improved metering for both off-air and Auxiliary reception, more alarm options and much more.

Coming Soon!

Description

Inovonics 647 INOmini AM SiteStreamer II

The Inovonics 647 INOmini  AM SiteStreamer™ II is a new generation of SiteStreamer web-enabled receivers for remote signal monitoring. The 647 AM SiteStreamer II picks-up where its predecessor left-off with a sensitive SDR-based tuner, improved LCD display, high-quality streaming for multiple remote listeners, improved metering for both off-air and Auxiliary reception, more alarm options, 2 levels of password protection, and much, much more. The popular INOmini SiteStreamers are web-enabled receivers for remote signal monitoring.
The Inovonics 647 INOmini AM Site Streamer II is a great confidence monitor for remote transmitter or translator sites – allowing radio engineers and broadcasters to monitor their sites from any Web-enabled device such as – PC, Tablet, or SmartPhone.

Features

  • Monitor AM broadcasts from any remote point
  • Full dynamic browser support of all operating features, including audio streaming, through the dynamic Web Interface
  • Monitor both off-air radio and Aux audio levels simultaneously with meters.
  • StationRotation™ – monitor all station presets by ‘round robin’ sequencing, each with its specific alarm parameters. Select which presets to include in StationRotation.
  • BandScanner™ shows a spectrum plot of all or part of the AM Broadcast band.
  • Sends instant error messages via email or SMS text; logs signal and audio loss

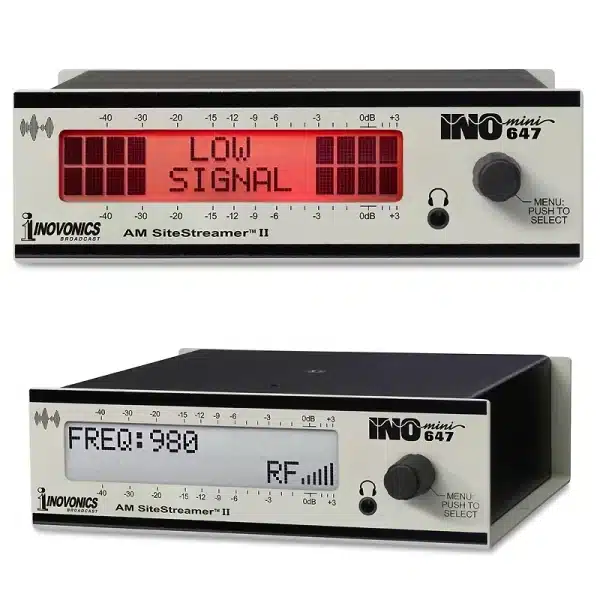

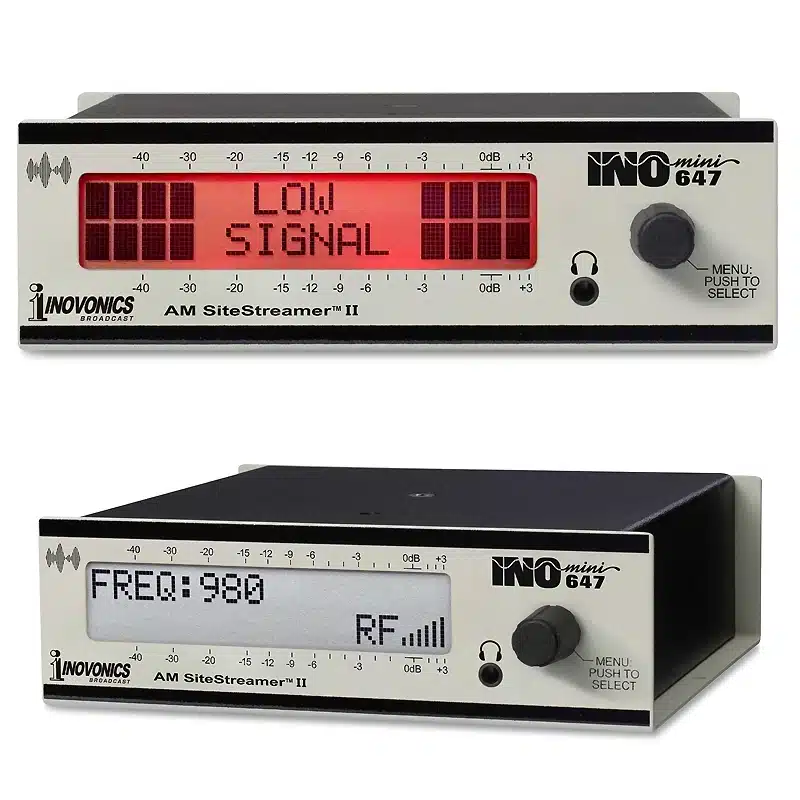

  • Flashing-red front-panel alarms and rear-panel ‘tallies’ indicate Carrier Loss and Audio Program Loss.
  • Password protection with two access levels.
  • Remote firmware updates.
  • User Manual is available on the Web interface.

TUNING RANGE
Tuning Range: 520kHz to 1710Hz in 10kHz steps or 531kHz to 1611kHz in 9kHz steps

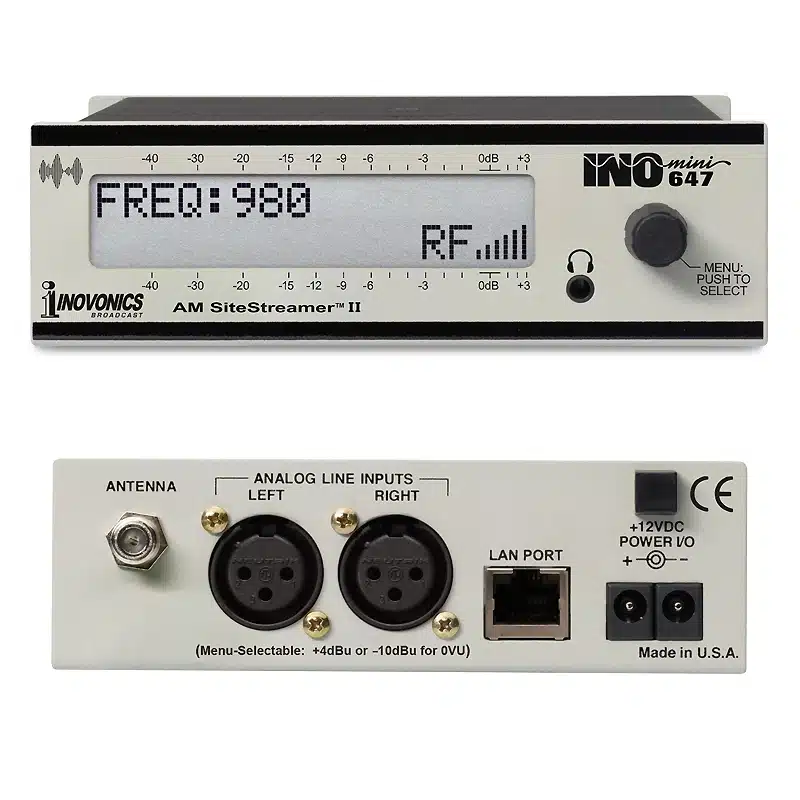

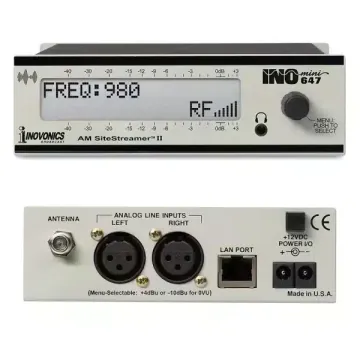

ANTENNA INPUT
Isolated F connector accepts a passive outdoor loop antenna (not included, optionally available)

RECEIVER SENSITIVITY
≤100μV for 40dB SNR with 6kHz BW

AUDIO RESPONSE
Selectable (–6dB): 6kHz, 4kHz, 3kHz, 2kHz

PROGRAM LINE INPUT
Active-balanced (XLR) stereo left/right or dual-monaural analog AUX inputs with menu-selectable 4dBu or –10dBu nominal reference levels. Local and remote switching between off-air and AUX line-in feeds.
Headphone Jack: Front-panel (TRS) 3.5mm

NETWORK CONNECTION
LAN (RJ45) jack accepts universal TCP/ IP connection to Local Area Network, and via router to the Internet

ALARMS
Low Signal and Audio Loss

POWER REQUIREMENT
12VDC at 110mA (2.1mm x 5.5mm coaxial); inline switchmode power supply included. A low-noise linear supply is optionally available as required in certain circumstances.

MOUNTING OPTIONS
An optional rack adapter mounts one, two or three INOmini format units in a standard 19-inch, 1U rack space.

SIZE AND WEIGHT
1.6”H x 5.5”W x 5.5”D; 4 lbs. shipping weight.

Description

Inovonics 647 INOmini AM SiteStreamer II

The Inovonics 647 INOmini  AM SiteStreamer™ II is a new generation of SiteStreamer web-enabled receivers for remote signal monitoring. The 647 AM SiteStreamer II picks-up where its predecessor left-off with a sensitive SDR-based tuner, improved LCD display, high-quality streaming for multiple remote listeners, improved metering for both off-air and Auxiliary reception, more alarm options, 2 levels of password protection, and much, much more. The popular INOmini SiteStreamers are web-enabled receivers for remote signal monitoring.
The Inovonics 647 INOmini AM Site Streamer II is a great confidence monitor for remote transmitter or translator sites – allowing radio engineers and broadcasters to monitor their sites from any Web-enabled device such as – PC, Tablet, or SmartPhone.

Features

  • Monitor AM broadcasts from any remote point
  • Full dynamic browser support of all operating features, including audio streaming, through the dynamic Web Interface
  • Monitor both off-air radio and Aux audio levels simultaneously with meters.
  • StationRotation™ – monitor all station presets by ‘round robin’ sequencing, each with its specific alarm parameters. Select which presets to include in StationRotation.
  • BandScanner™ shows a spectrum plot of all or part of the AM Broadcast band.
  • Sends instant error messages via email or SMS text; logs signal and audio loss
  • Flashing-red front-panel alarms and rear-panel ‘tallies’ indicate Carrier Loss and Audio Program Loss.
  • Password protection with two access levels.
  • Remote firmware updates.
  • User Manual is available on the Web interface.
Specifications

TUNING RANGE
Tuning Range: 520kHz to 1710Hz in 10kHz steps or 531kHz to 1611kHz in 9kHz steps

ANTENNA INPUT
Isolated F connector accepts a passive outdoor loop antenna (not included, optionally available)

RECEIVER SENSITIVITY
≤100μV for 40dB SNR with 6kHz BW

AUDIO RESPONSE
Selectable (–6dB): 6kHz, 4kHz, 3kHz, 2kHz

PROGRAM LINE INPUT
Active-balanced (XLR) stereo left/right or dual-monaural analog AUX inputs with menu-selectable 4dBu or –10dBu nominal reference levels. Local and remote switching between off-air and AUX line-in feeds.
Headphone Jack: Front-panel (TRS) 3.5mm

NETWORK CONNECTION
LAN (RJ45) jack accepts universal TCP/ IP connection to Local Area Network, and via router to the Internet

ALARMS
Low Signal and Audio Loss

POWER REQUIREMENT
12VDC at 110mA (2.1mm x 5.5mm coaxial); inline switchmode power supply included. A low-noise linear supply is optionally available as required in certain circumstances.

MOUNTING OPTIONS
An optional rack adapter mounts one, two or three INOmini format units in a standard 19-inch, 1U rack space.

SIZE AND WEIGHT
1.6”H x 5.5”W x 5.5”D; 4 lbs. shipping weight.
