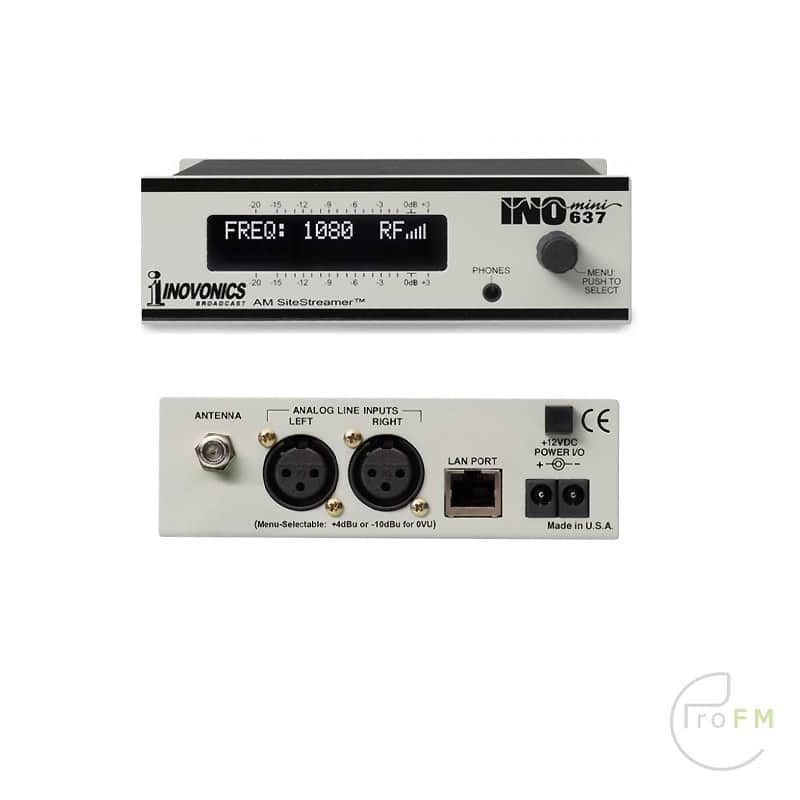

Inovonics 637 INOmini AM SiteStreamer/ AM Receiver
The INOmini 637 SiteStreamer is a Web-enabled medium-wave AM broadcast receiver for remote signal monitoring. Installed at a broadcast transmitter site, or at any remote location with an Internet connection, the unit streams audio from single or multiple (sequenced) off-air sources, or from a hard-wired program audio feed, back to any computer, tablet or mobile device.
The browser-accessed Web Interface enables remote tuning and source switching, displays audio levels, and allows setup and display of alarm logs. The SiteStreamer also dispatches instant email or text message alarm notifications selectively to multiple personnel.
Features
- Monitor AM broadcasts from any remote point
- BandScanner shows a spectrum plot of all or part of the AM Broadcast band.
- ‘Station Rotation’ can monitor multiple station presets by ‘round robin’ sequencing, each with its specific alarm parameters.
- AES digital AUX input can monitor hardwired audio program feeds (A/B between source and air).
- Full dynamic browser support of all operating features, including audio streaming, through the dynamic Web Interface
- Sends instant error messages via email or SMS text; logs signal and audio loss
- Easy setup and operation; full SNMP support
- Email/SMS error messaging; SNMP support
- Headphone jack
TUNING RANGE
Tuning Range: 520kHz to 1710Hz in 10kHz steps or 531kHz to 1611kHz in 9kHz steps
ANTENNA INPUT
Isolated F connector accepts a passive outdoor loop antenna (not included, optionally available)
RECEIVER SENSITIVITY
≤100μV for 40dB SNR with 6kHz BW
AUDIO RESPONSE
Selectable (–6dB): 6kHz, 4kHz, 3kHz, 2kHz
PROGRAM LINE INPUT
Active-balanced (XLR) stereo left/right or dual-monaural analog AUX inputs with menu-selectable 4dBu or –10dBu nominal reference levels. Local and remote switching between off-air and AUX line-in feeds.
Headphone Jack: Front-panel (TRS) 3.5mm
NETWORK CONNECTION
LAN (RJ45) jack accepts universal TCP/ IP connection to Local Area Network, and via router to the Internet
ALARMS
Low Signal and Audio Loss
POWER REQUIREMENT
12VDC at 110mA (2.1mm x 5.5mm coaxial); inline switchmode power supply included. A low-noise linear supply is optionally available as required in certain circumstances.
MOUNTING OPTIONS
An optional rack adapter mounts one, two or three INOmini format units in a standard 19-inch, 1U rack space.
SIZE AND WEIGHT
1.6”H x 5.5”W x 5.5”D; 4 lbs. shipping weight.
