Description

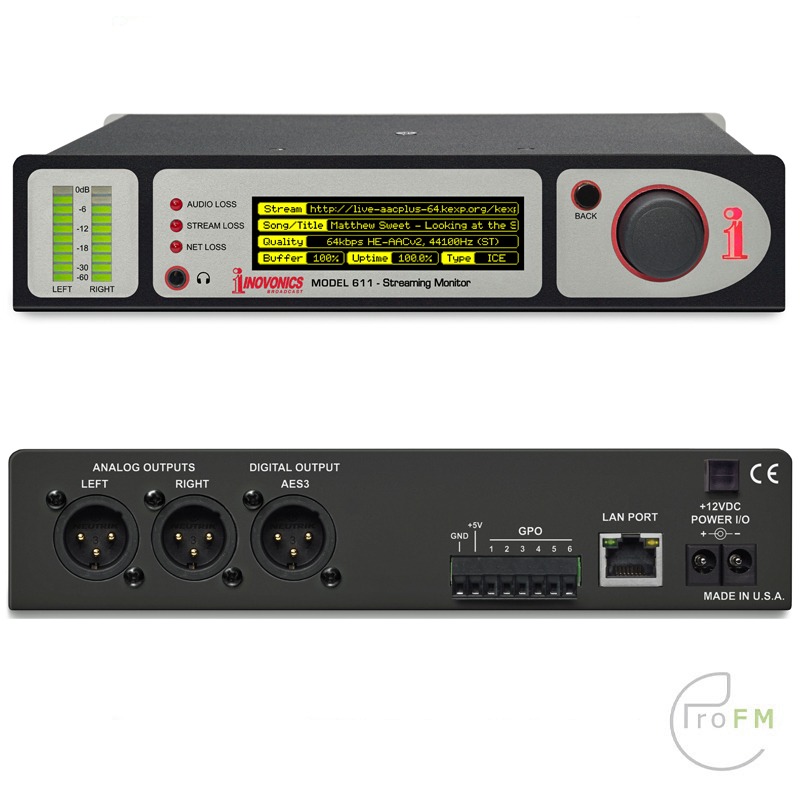

Inovonics Model 611 Network Streaming Monitor
The Inovonics 611 is our second generation dedicated hardware solution for uninterrupted monitoring of network streaming audio, such as online Internet radio and other streaming applications..
The world of streaming has progressed over the years and the new 611 is designed to meet the technological challenges of today with greater processing power and advanced functionality.
Like its predecessor, the 611 Streaming Monitor provides balanced analog and AES-digital outputs, self-logging alarms that constantly check for audio loss, stream loss and Internet loss. If the stream is lost for whatever reason, the 611 continuously strives to reconnect. Online alarm notifications alert personnel with e-mail or text messages.
Features
- Support for HTTP and HTTPS streams.
- Stream formats: Icecast/Shoutcast, HLS (Raw, MPEG-TS, fMP4).
- Stream Rotation – the 611 will rotate through preset streams sequentially monitoring one stream at a time.
- Failover Support: Preset back-up streams with customizable failover triggers.
- Easy front-panel setup uses jog-wheel menu navigation and the front-panel readout. The corresponding Web interface offers a detailed presentation and additional options.
- Adjustable output levels for Analog L/R and AES-digital
- Alarms & notifications via email or SMS for audio loss, stream loss, internet loss, and high ping time.
Network Connection
LAN (RJ-45) jack accepts universal TCP/IP connection to Local Area Network, and via router to the Internet. Supports HTTP and HTTPS connections.
Audio Formats Supported
MP3 to 320kbps; Ogg Vorbis to 320kbps; AAC-LC to 320kbps; HE-AAC-v1 to 128 kbps; HE-AACv2 to 64kbps.
Streaming Formats Supported
Icecast/Shoutcast; HLS; Raw (MPEG-TS and fMP4).
Metadata Decoded and Displayed
Stream Type; Stream Name; Stream Owner; Song/Title; Format; Container; URL; Connected URL; Buffer; Uptime; Codec; Bitrate; Sample Rate; Status.
Metering and History
Webpage interface bargraph readout of Left, Right, L+R and L–R levels; up to 24-hour graphic rolling history of L/R audio levels, buffer utilization and pinging exceptions.
Program Audio Output(s)
Adjustable balanced analog Left/Right (XLR), 200-ohm source impedance; adjustable AES3 digital (XLR), 48kHz sampling rate.
HTTP/Icecast Listening Stream Output
Web browser remote-listening stream employs HE-AACv2 encoding and accommodates up to 10 simultaneous listeners.
Headphone Jack
Front-panel headphone jack (3.5mm TRS) with adjustable level.
Alarms
Parameter-adjustable alarms for Audio Loss, Stream Loss, Metadata Not Updated, Underrun, High Ping and Internet Loss alarm functions.
GPO Alarm Tally Outputs
Six individual open-collector NPN transistor outputs for alarm conditions. Outputs each sink 100mA, 40Vdc max., software-assignable for GPO terminal and polarity.
SNMP Compatibility
Setup and operation read/write parameters under SNMP management; downloadable MIB file.
Power Requirement
12VDC, 230mA (2.1mm x 5.5mm coaxial). A universal ‘brick’-type switching power supply that accepts 100-240Vac, 50/60Hz mains is provided.
Mounting Options
An optional rack adapter mounts one or two 611s in a standard 19-inch 1U rack space. A blanking panel and daisy-chain power pigtail are included.
Environmental
Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.
Size and Weight
1.6”H x 8”W x 6”D; 5 lbs. shipping weight.
