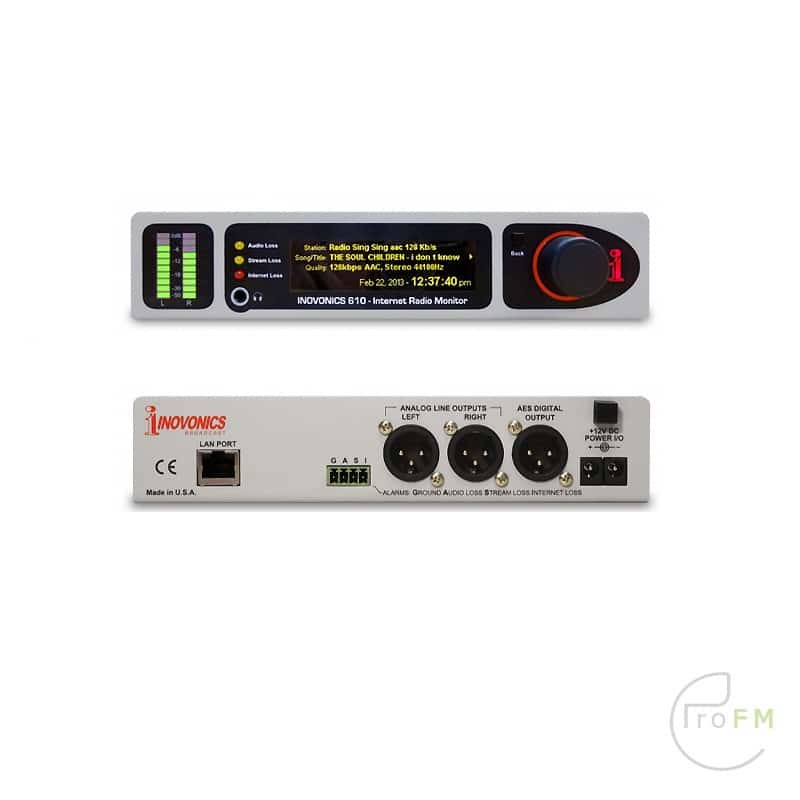

Inovonics 610 Internet Radio Monitor/Studio Gear.

The Inovonics 610 is the first dedicated hardware solution for uninterrupted monitoring of streaming online radio quality and performance. Much more than a consumer-grade ʻInternet Radio,ʼ the 610 provides balanced analog and AES-digital outputs, self-logging alarms that constantly check for audio loss, stream loss and Internet loss, and an easyto-use tuner that decodes audio and displays live metadata for MP3, Ogg Vorbis and AAC formats.
Rear-panel alarm tallies provide local alarms, and online notifications alert personnel with e-mail or text messages when any of the three alarms occurs. The front panel displays left and right audio metering, local LED alarms and an OLED screen with jog wheel for advanced control and editing of all tuning and monitoring parameters. The 610’s Web interface allows complete setup and control of the unit from your PC, tablet or smartphone, and reliable 2-way connectivity is ensured with a built-in Dynamic DNS utility.
Free yourself from uncertainty when it comes to Internet Radio and get an Inovonics 610 Internet Radio Monitor today.

Product Features

• Uninterrupted monitoring of streaming online radio performance.
• Balanced Analog L/R and AES digital program line outputs.
• Automatically decodes and displays live metadata for MP3, Ogg
• Vorbis and AAC formats: Station ID, Song/Program Info, Quality
• (format and bitrate).
• Easy setup & control via front panel OLED screen and jog-wheel.
• Works with SHOUTcast, ICEcast and more.
• Local alarm ʻtalliesʼ plus self-logging alarms continuously check
• for Audio Loss, Stream Loss and Internet Loss.
• Full function remote Web interface email notifications

NETWORK CONNECTION

LAN (RJ-45) jack accepts universal TCP/IP connection to Local Area Network, and via router to the Internet.

POPULAR STREAMING FORMATS SUPPORTED

Icecast and SHOUTcast streaming formats using these encoding standards and rates
MP3 (32kbps – 320kbps)
Ogg Vorbis (32kbps – 500kbps)
AAC (32kbps – 384kbps).

METADATA DECODED/DISPLAYED

Station (streamer’s ID)
Song/Title (artist and title or program name)
Quality (streaming rate, encoding format, mono or stereo and original sampling rate)

PROGRAM AUDIO OUTPUT(S)

4dBu balanced analog Left/ Right (XLR), 200-ohm source impedance; AES digital (XLR), 48kHz sampling rate; Front-Panel Headphone Jack (3.5mm TRS), adjustable.

ALARM TALLIES

Individual open-collector NPN transistor outputs for Audio Loss, Stream Loss and Internet Loss.

POWER REQUIREMENTS

12VDC at 450mA (2.1mm x 5.5mm coaxial); a ‘wall-outlet transformer’ (WallWart®) switching- type power supply appropriate to the destination AC mains voltage is provided.

MOUNTING OPTIONS

An optional rack adapter mounts one or two 610s in a standard 19-inch 1U rack space.

SIZE AND WEIGHT

1.6”H x 8”W x 6.”D; 5 lbs. shipping weight.
