Description

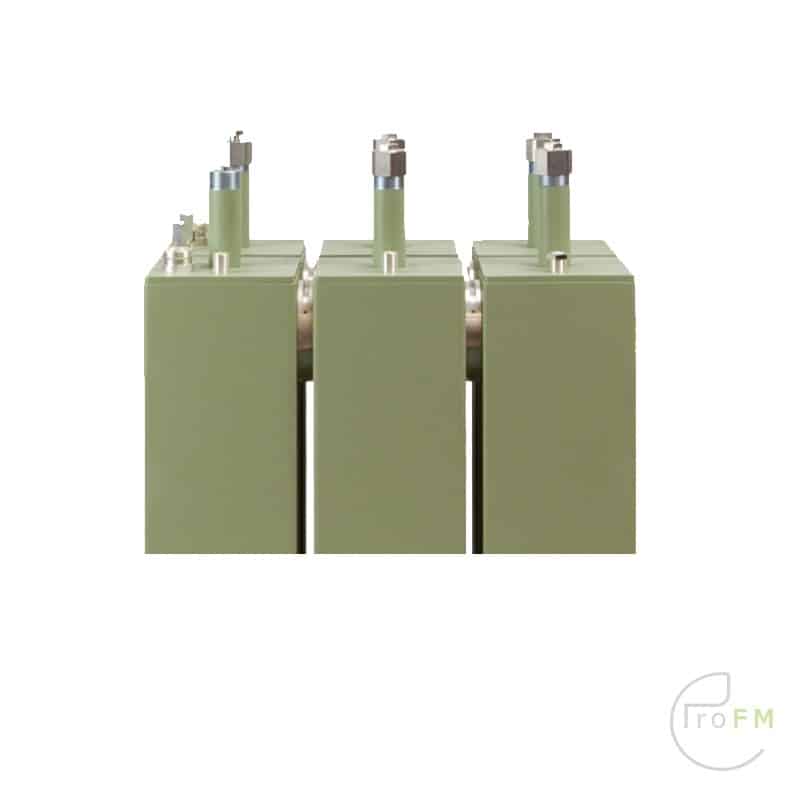

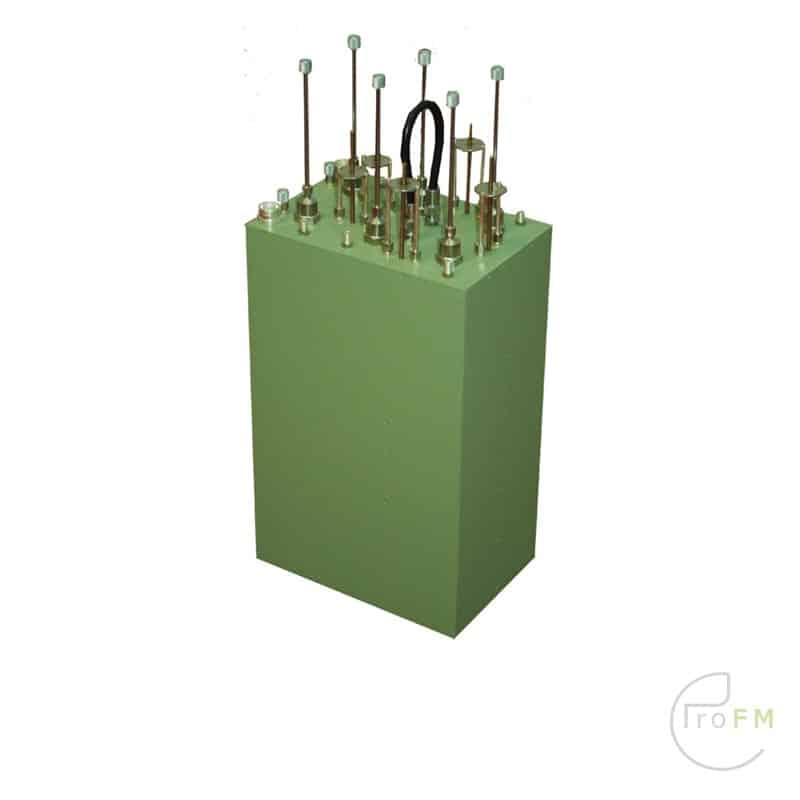

Electrolink DAB BIII Band Pass Filter
Electrolink has expanded its radio filter products to include DAB fi lters. Electrolink is providing filters with up to 8 cavities to meet the strict requirements of both the critical and non-critical masks. All the filters are fully compliant with the Eureka 147 international specification achieved at DAB (170 – 240 MHz) and L Band (1452 -1492 MHz) frequencies at powers ranging from 200 W to 3 kW. All Electrolink fi lters are DAB band tunable and temperature compensated.
The bandpass filters use light alloy and brass construction for stable high power performance.
KEY FEATURES
- Flexible and compact
- Temperature stabilised
- Tunable all over DAB BIII Band
- Light alloy and brass construction
- Square cavity at high mechanical stability
- Thermic stabilization carried out with INVAR
- Silver superfi cial treatments and outer painting
- Mounted in every position
- Natural convection cooling
- Fine tuning
- Low Insertion Loss
- Silver plated components
- Temperature Compensation
- Design for all standard
- Critical Mask tuning available
- Adjacent Channels
- Indoor Application
N / OUT IMPEDANCE OHM: 50
FREQUENCY RANGE MHz :170 – 240
INPUT POWERS :RMS 200 WATT – 3KW
BANDWIDTH :TUNABLE
RETURN LOSS :dB >23
INSERTION LOSS :dB f(0)
Attenuation f(0) ±0.77MHz
Attenuation f(0) ±0.97MHz
Attenuation f(0) ±1.15MHz
Attenuation f(0) ±3.00MHz
<0,9dB
≤1dB
≥15dB
≥40dB
≥55dB
TEMPERATURE RANGE :°C -10 / 50
DIMENSIONS :mm 217 x 322 x 731(H)
WEIGHT :Kg 12
INPUT/OUTPUT CONNECTORS: EIA 7/16” (F) or EIA 7/8” (F)
