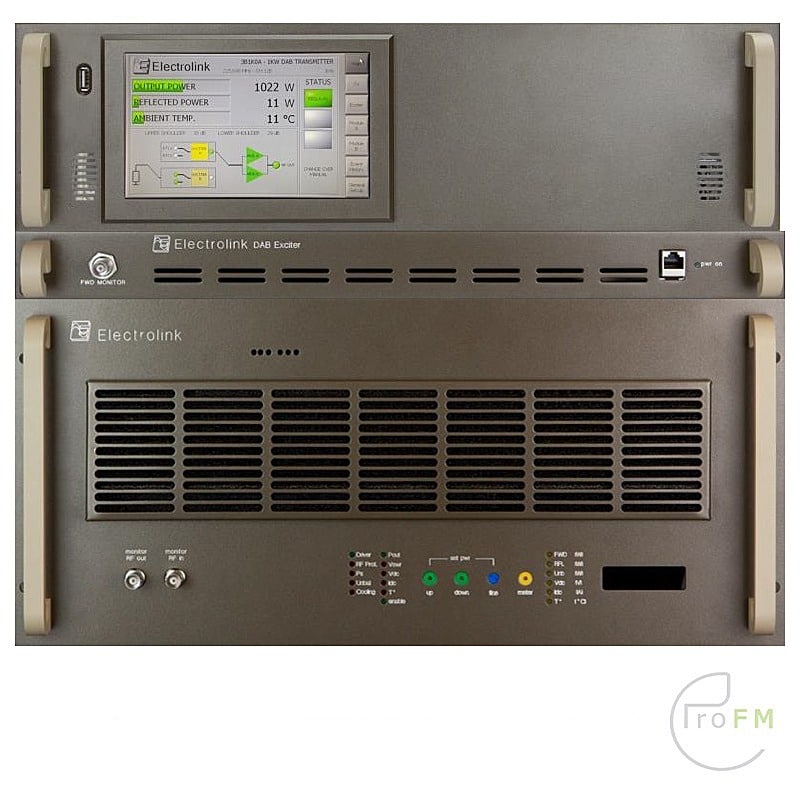

Electrolink 3B1K0A DAB+ Transmitter 1000 Watt
Compact DAB transmitter for use of local / regional DAB+ low-scale multiplexes in the Netherlands, Belgium and United Kingdom.
Simple operation via touch screen. Low power model with 1000 Watt output power.
Built in state of the art DAB modulator, EDI input and GPS receiver.
The new generation of DAB low power line provides todays broadcasters with outstanding benefits and cost saving thanks to high efficiency and easy operation.
The colour touch screen display allows easy access to all adjustable parameters which are well available via webserver and snmp.
A professional solution that meets broadcasters needs from small community radio to big goverment networks.
Features:
- DAB/DAB+ MODULATOR WITH EXCELLENT SPECIFICATIONS
- STAND-ALONE UNIT ON 19”COMPACT FRAME
- FULLY BROADBAND SOLID STATE AMPLIFIERS
- MFN, SFN OPERATION
- DIGITAL ADAPTIVE PRECORRECTION
- SEAMLESS INPUT SWITCHING (2XETI NI OR NA)
- EDI INPUT AVAILABLE AS OPTION
- INTERNAL GPS RECEIVER AVAILABLE AS OPTION
- EFFICIENT LOW NOISE FORCED AIR COOLING
- REMOTE CONTROL/MONITORING VIA SNMP/WEB
- USER-FRIENDLY TOUCH SCREEN DISPLAY
- EASY INSTALLATION, STARTUP AND MAINTENANCE
- OUTPUT POWER 1000 WATT
- AVAILABLE IN 12,24 or 40 RU FRAME
GENERAL SPECIFICATIONS
FREQUENCY RANGE VHF BII I (174 240 MHz)
STANDARDS DAB: EN 300 401 v1.4.1, DMB : EN TS 102 428 v1.1.1
ETI INTERFACE: ETSI TS 300 799 v1.5.1, EDI ENCAPSULATION: TS 102 693
AVAILABLE INPUTS ETI (NI) & ETI (NA) 2x BNC 75 Ohm, EDI RJ45 (OPTIONAL)
OPERATING VOLTAGE 230 VAC ± 10%, 50/60 Hz
POWER FACTOR > 0.95
POWER CONSUMPTION 2000W typical (@1000W)
OUTPUT RF CONNECTOR DIN 7/8 EIA
OPERATING TEMPERATURE 5°C to 45°C
HUMIDITY 95% NON C ONDENSING
INSTALLATION HEIGHT UP TO 25 00 mt ASML
RF SPECIFICATIONS
RF OUTPUT POWER MAX 1100 W
DAB MODES I, II, III, IV
OPERATING NETWORK MFN, SFN
SHOULDERS > 30 dB
MER > 28 dB
V SWR MAX 1.4 :1
RF EMISSION S COMPLIANT WITH EN 302 077 1 2
FREQUENCY REFERENCES
BUILT IN REFERENCE 10MHz OCXO
EXTERNAL REFERENCE 10MH z , 1PPS
FREQUENCY STABILITY BETTER THAN 1×10 ¯⁹ (PERIOD 24 h)
ON BOARD GPS RECEIVER AVAILABLE AS OPTION
REMOTE CONTROL AND MONITORING SYSTEM
ETHERNET, WEB SERVER AND SNMP
AVAILABLE OPTIONS
- EDI INPUT
- SATELLITE INPUT
- ON BOARD GPS RECEIVER
