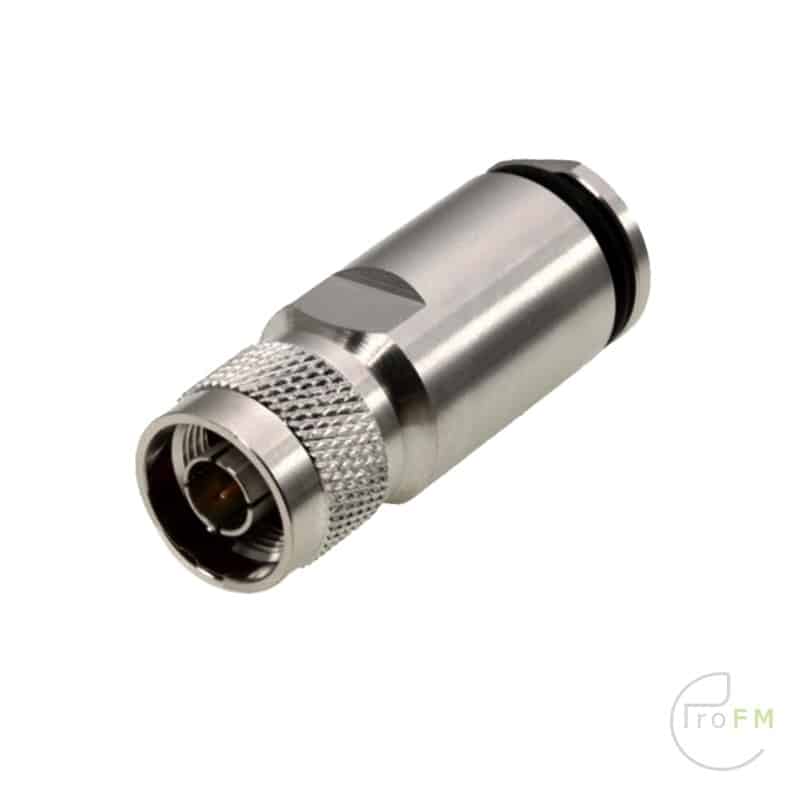

This SSB’s N-connector  is suitable for Ecoflex-15 and Ecoflex-15 Plus. This connector offers an alternative to the previous coaxial connectors with a nickel surface. This Pro connector is equipped with a high-quality alloy of copper, tin and zinc (white bronze).
In contrast to the nickel coating, this triple alloy has improved hardness and higher wear resistance. This means that more torque is possible before wear occurs.

Another advantage of the new connector is the higher intermodulation resistance. Passive intermodulation (PIM) in passive components such as coaxial connectors is usually caused by poor contact transitions, the use of ferromagnetic materials such as nickel or by metal oxidation and contact contamination. The new copper-tin-zinc alloy is not ferromagnetic and exhibits lower passive intermodulation at high transmission frequencies compared to nickel. Thanks to its superior corrosion and oxidation resistance, the new connector has a long service life, even under harsh environmental conditions.

In terms of adjustment, the new connector scores well below 20dB over the entire frequency range. Unlike connectors containing nickel, it has no allergenic effect.

Features

• Coax type: Ecoflex 15/15 PLUS / SeaTex 15/15 PLUS Heatex
  Inner conductor: solderless
  Outer guide: screws
  Contact pin surface: gold plated
  Insulation TEFLON® (PTFE)
  Seal: silicone
  Housing for surface connectors and other metal parts CuSnZn alloy (white bronze)
  Wave resistance: 50 Ohm
  Return loss: <-20 dB up to 6 GHz
  Minimum insulation resistance: ≧ 5000 MΩ
  Minimum dielectric strength (KV rms 50Hz): 1000 V rms
  Inner conductor contact resistance: ≦ 1.0 mΩ
  Outer conductor contact resistance: ≦ 1.0 mΩ
  RoHS compliant

Package contents

1x SSB N-Male Pro Ecoflex-15/Plus

Mechanical specifications:
Electrical specifications:
Life time (plug cycles) ≥ 500
Insulating sleeve / Insulator PTFE
Pressure seal / Gasket Rubber / Rubber
Gasket in mating face / Gasket in mating face Silicone / Silicone
Surface / Surface CuSnZn3
Metal parts excl. pin / Metal parts excl. pin Brass / Brass
Pin (diamagnetic) / Pin (diamagnetic) CuSn6; QSn6.5-01 (C51900)
Surface pin / Surface pin Gold plated / Gold plated
Temperature range / Operating temperature -45°C / +155°C
Weight / Weight 88 g
RoHS compliant / RoHS compliant Yes / Yes
Protection class / Protection class IP 67
Operating voltage / Working voltage ≤ 1000 V RMS
Impedance / Impedance 50 Ω
Insulation resistance / Insulation resistance ≥ 5 GΩ
Frequency up to / Frequency up to 11 GHz
Inner contact resistance / Inner contact resistance ≤ 1.5 mΩ
Outer contact resistance / Outer contact resistance ≤ 1.0 mΩ
