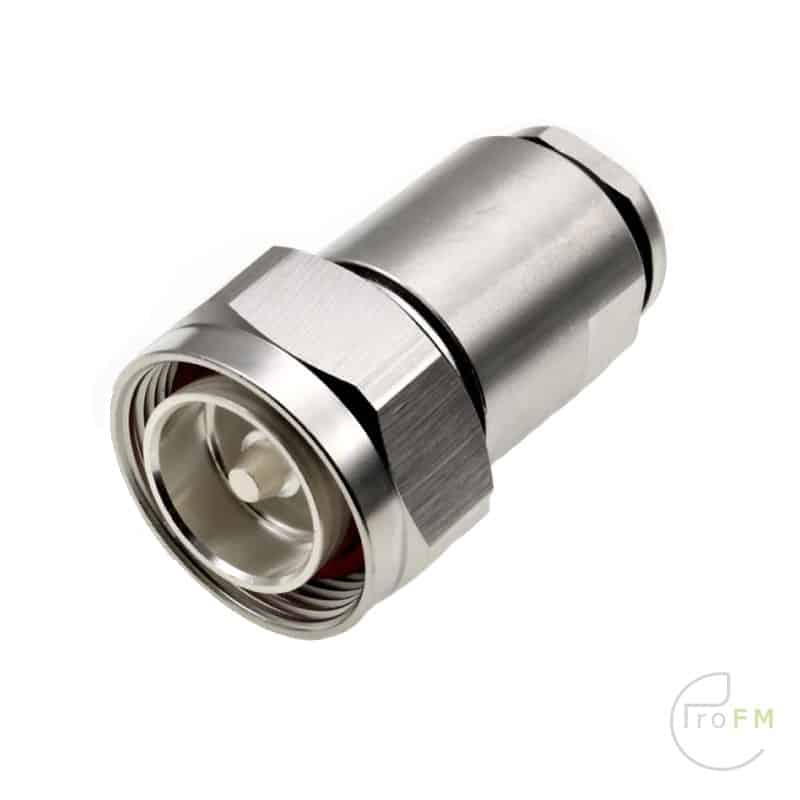

Ecoflex15 – 7/16 DIN Connector Male
The SSB 7-16DIN Male clamp connector is ideal for Ecoflex-15, Ecoflex-15 Plus and LMR 600 coaxial cables. This solderless connector is easy to assemble and offers excellent performance with a PTFE insulator and rubber seal. With a nickel plated finish, RoHS compliant, and an IP 65 protection rating, it is suitable for a wide range of conditions. It supports frequencies up to 6 GHz, has an impedance of 50 Ohms, and offers low contact resistance and high return loss for reliable connections. Perfect for professional telecommunications applications.
Features:
- Connector type: 7/16DIN clamp
Suitable for: Ecoflex-15 / Ecoflex-15 Plus / LMR 600
Insulator: PTFE
Gasket: Rubber
O-ring: Rubber
D Gasket in silicone fitting surface
Surface: nickel plated
Metal parts excl. pin CuZn39Pb3
Pin (diamagnetic) silver-plated / silver-plated
Operating temperature -45°C / +155°C
RoHs compliant Standard: IEC 60 169-4
protection class IP 65Package contents :1x SSB 7-16DIN Male clamp connector 70-7398
Connector type: 7/16DIN clamp
Suitable for: Ecoflex-15 / Ecoflex-15 Plus / LMR 600
Insulator: PTFE
Gasket: Rubber
O-ring: Rubber
DGasket in mating surface Silicone
Surface: Nickel-plated
Metal parts excl. pin CuZn39Pb3
Pin (diamagnetic) silver-plated / silver-plated
Operating temperature -45°C / +155°C
RoHs-compliant Standard: IEC 60 169-4
Protection class IP 65
Working voltage ≤ 1000 V RMS
Impedance 50 Ohm
Insulation resistance ≥ 10 GΩ
Frequency up to 6 GHz
Internal contact resistance ≤ 0.4 mΩ
Outer contact resistance ≤ 1.5 mΩ
Coupling torque: 25-35 Nm
Return loss:
≤ -45.9dB@1GHz
≤ -36.3dB@3GHz
≤ [email protected]
Insertion loss: ≤ 0.05 dB
Weight 146g
Mounting information
Inner conductor: to clamp / Inner conductor: to clamp
Outer conductor: to screw / Outer conductor: to screw
