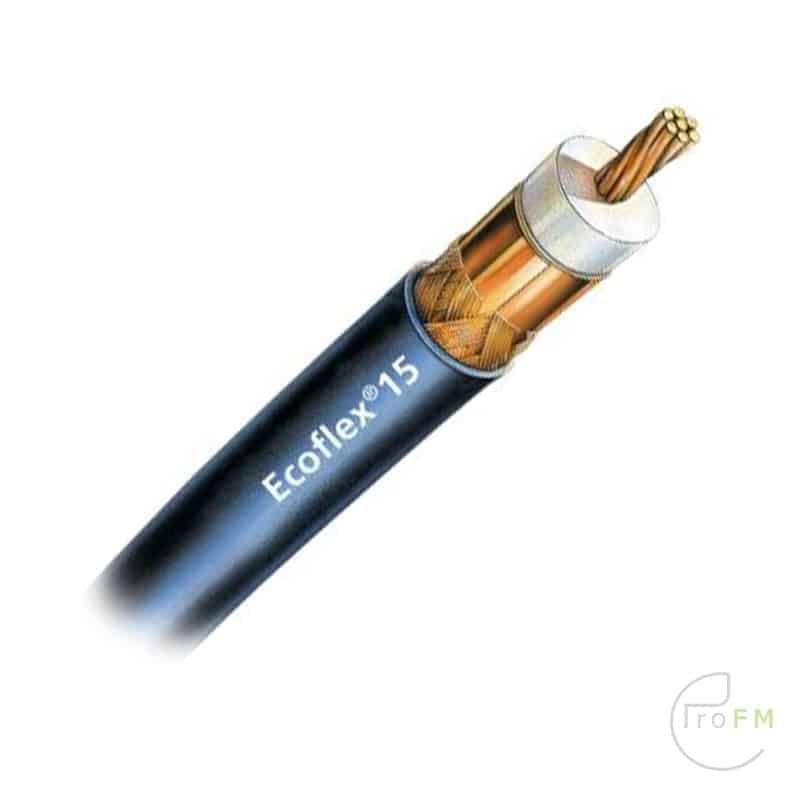

Ecoflex 15 Coax Cable

Ecoflex 15 Coax Cable

ECOFLEX 15 is a flexible, low-loss coaxial cable specifically designed for use up to 6 GHz. Advanced manufacturing techniques combined with the use of a low-loss PE-LLC Dielectric yields a foaming rate of more than 70% resulting in very low attenuation. ECOFLEX 15 sets the new standard between flexible coaxial cables.

The flexibility of ECOFLEX 15 is further enhanced through the use of a stranded, oxygen-free copper center conductor. Use of proprietary techniques, continuous center conductor calibration and compression as well as the application of a precoating results in low losses and good impedance matching. Further advantages of the cable include the use of double shielding which is constructed of overlapping copperfoil plus an additional tight woven copper braid. A screening efficiency of > 90 dB@ 1 GHz is realized.

The copperfoil has an applied PE-coating which prevents foil cracking due to short radius bends, and black PVC sheath of ECOFLEX 15 is uv-stabilized. In addition to a full compliment of standard connectors, an easy to use solder free N-connector has been specially developed for ECOFLEX 15. Connector installation only takes a few minutes and requires no special tools. ECOFLEX 15 is the right choice when a low loss, highly flexible microwave rated cable is required. It’s economical price makes it the clear leader for today’s demanding applications.

Price per meter

Construction

Centre conductor stranded copper, oxygen free
7 x 1,55 mm
Centre conductor Ø 4,5 mm
Dielectric low loss compound PE
Dielectric Ø 11,3 mm
Outer conductor 1 copperfoil, PE coated
Shielding factor 100%
Outer conductor 2 copper braid, 72%
Sheath black PVC, uv-resistant
Outer diameter Ø 14,6 mm

Mechanical specifications

Weight (100 m) 25,8 kg
Min. bending radius 70 mm
Temperature range – 40 …. 85 °C
Pulling strength 12 daN
Electrical specifications
Impedance 50 Ohm
Capacity 77 pF/m
Velocity factor 0,86
f 6 GHz
Screening efficiency @ 1 GHz > 90 dB
DC-resistance
Centre conductor 1,56 Ohm/km
Outer conductor 5,15 Ohm/km
RF peak voltage 1,55 kV

Max. power handling (W @40°C)

10 MHz 6450
100 MHz 1970
500 MHz 830
1000 MHz 560
2000 MHz 380
3000 MHz 300
4000 MHz 250
6000 MHz 190

Typ. attenuation (dB/100m@20°C) dB/100ft @20°C

5 MHz 0,6 0,18
10 MHz 0,86 0,26
50 MHz 1,96 0,60
100 MHz 2,81 0,86
144 MHz 3,4 1,04
200 MHz 4,05 1,23
300 MHz 5,0 1,52
432 MHz 6,1 1,86
500 MHz 6,7 2,04
800 MHz 8,6 2,62
1000 MHz 9,8 2,99
1296 MHz 11,4 3,48
1500 MHz 12,4 3,78
1800 MHz 13,8 4,21
2000 MHz 14,7 4,48
2400 MHz 16,3 4,97
3000 MHz 18,7 5,70
4000 MHz 22,3 6,80
5000 MHz 25,7 7,84
6000 MHz 28,8 8,78
