Ecoflex 10 Coax Cable

Ecoflex 10 Coax Cable

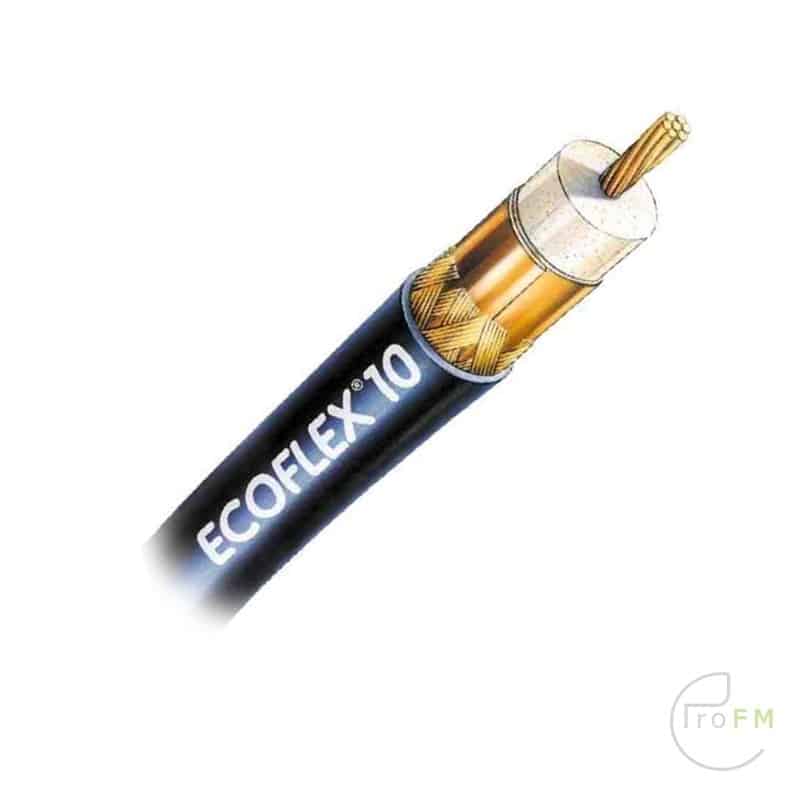

ECOFLEX 10 is a flexible, low-loss coaxial cable specifically designed for use up to 6 GHz. Advanced manufacturing techniques combined with the use of a low-loss PE-LLC Dielectric yields a foaming rate of more than 70% resulting in very low attenuation. ECOFLEX 10 sets the new standard between flexible coaxial cables.

The flexibility of ECOFLEX 10 is further enhanced through the use of a stranded, oxygen-free copper center conductor. Use of proprietary techniques, continuous center conductor calibration and compression as well as the application of a precoating results in low losses and good impedance matching. Further advantages of the cable include the use of double shielding which is constructed of overlapping copperfoil plus an additional tight woven copper braid. A screening efficiency of > 90 dB@ 1 GHz is realized.

The copperfoil has an applied PE-coating which prevents foil cracking due to short radius bends, and black PVC sheath of ECOFLEX 10 is uv-stabilized. In addition to a full compliment of standard connectors, an easy to use solder free N-connector has been specially developed for ECOFLEX 10. Connector installation only takes a few minutes and requires no special tools. ECOFLEX 10 is the right choice when a low loss, highly flexible microwave rated cable is required. It’s economical price makes it the clear leader for today’s demanding applications.

Price per meter

Technical data

Centre conductor … 7 x 1.0 mm
Centre conductor Ø ………………………………….. 2.85 mm
Dielectric …………………………….. PE, low-loss compound
Dielectric Ø ……………………………………………… 7.25 mm
Outer conductor 1 ……………………. copper foil, PE coated
Shielding factor …………………………………………… 100 %
Outer conductor 2 …………………………………copper braid
Shielding factor …………………………………………….. 72 %
Sheath black PVC, UV-resistant
Outer diameter Ø ……………………………………… 10.2 mm
Weight ……………………………………………………..103 g/m
Min. bending radius .. one single bending ………….40 mm
15 repeated bendings ………80 mm
Temperature range …storage …………………-70 to 85°C
installation …………….-40 to 60°C
operation ………………-55 to 85°C
Pulling strength ……………………………………………. 4 daN

Electrical specifications

Impedance ……………………………………………………. 50
Capacity …………………………………………………… 78 pF/m
Velocity factor …………………………………………………0,85
fmax ………………………………………………………….. GHz
Screening efficiency @ 1 GHz ……………………….. > 90 dB
DC-resistance: Centre conductor………………….. 5.4 /km
Outer conductor ………………….. 8.4 /km
RF peak voltage ……………………………………………… 1kV

Typ. attenuation (dB/100 m @ 20°C)

5 MHz …………….. 0.9
10 MHz …………….. 1.3
50 MHz …………….. 2.85
100 MHz …………….. 4.1
144 MHz …………….. 5.0
200 MHz …………….. 5.9
300 MHz …………….. 7.4
432 MHz …………….. 8.9
500 MHz …………….. 9.6
800 MHz …………… 12.4
1000 MHz ………….14.0
1296 MHz ………….16.2
1500 MHz ………….17.6
1800 MHz ………….19.5
2000 MHz ………….20.6
2400 MHz ………….22.9
3000 MHz ………….26.0
4000 MHz ………….30.7
5000 MHz ………….35.1
6000 MHz ………….39.1
8000 MHz ………….46.6

Max. power handling (W @ 40°C)

10 MHz …………3860
100 MHz …………1190
500 MHz …………..510
1000 MHz …………..350
2000 MHz …………..240
3000 MHz …………..190
4000 MHz …………..160
5000 MHz …………..140
6000 MHz …………..130
