Drive in FM / Events Transmitter Package

The Drive in FM / Event Transmitter Package is the ultimate solution for drive-in cinemas, concerts, weddings, festivals and small broadcasters looking for professional transmission options. With its integrated Stereo/RDS and FM audio processor, this transmitter provides high-quality audio output, making every broadcast an unforgettable experience.

Designed as an all-in-one transmitter package, it simplifies installation and operation and meets various outdoor event needs. Whether you’re hosting a drive-in cinema screening, performing a live concert or broadcasting a wedding or funeral ceremony, the Drive in FM / Events Transmitter Package delivers reliable performance.

Key components of this comprehensive package include:

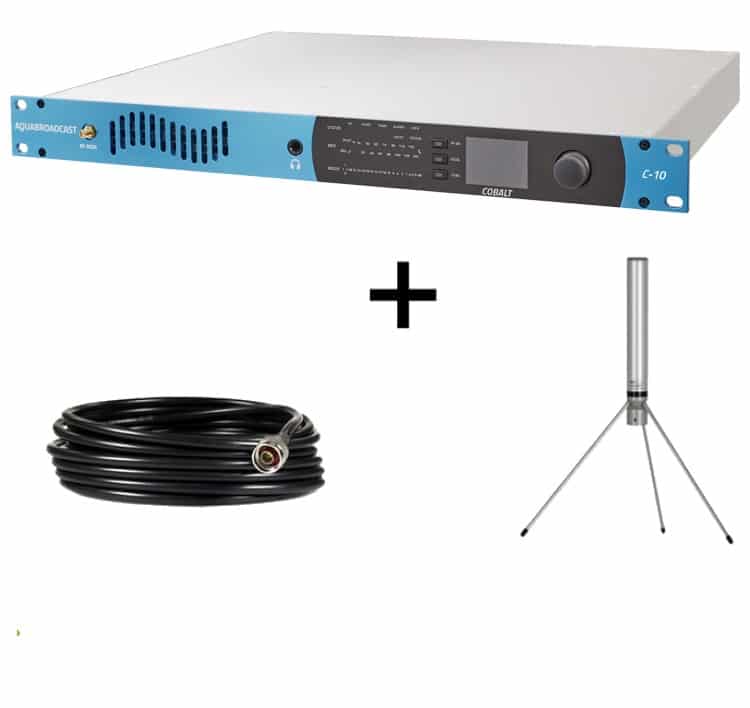

Aqua Broadcast Cobalt C-10 FM transmitter 10 Watt: a top-class digital device with 10 watts output power, DDS Exciter, Stereo Encoder, analog audio inputs, AES/EBU, MPX, Dynamic RDS, 4-band audio processor and SFN functions.
Sirio GP 87-108 LB N FM Antenna: This high-quality antenna is tuned for FM frequencies, enhancing signal reception and transmission efficiency. Its durable construction ensures long-term reliability, even in challenging outdoor environments.
15 Meters Ecoflex 10 Coax Cable with 2 x N-Connector: The included coaxial cable provides seamless connectivity between the transmitter and antenna, offering flexibility in setup and installation. With N-connectors on both ends, it ensures secure connections and minimal signal loss.

It’s important to note that to operate the FM transmitter legally in the Netherlands, a permit must be obtained from the Dutch Media Authority through the Telecom Agency. Compliance with regulatory requirements ensures adherence to broadcasting standards and avoids potential legal issues.

In summary, the Lucoro FMTX5 5 Watt Drive in FM Transmitter package offers a comprehensive solution for outdoor events and small-scale broadcasting needs. With its professional-grade features, seamless integration, and regulatory compliance, it’s the perfect choice for delivering high-quality audio experiences to audiences across various settings.

Technical Specifications Transmitter

Dimensions: 1U 43 H x 482 W x 135 D (mm)
Weight: 1.2kg
Audio input: XLR 600ohm +8dBu
RF output: N female 50ohm
RF monitor: BNC female 50ohm (nominal -40dB)
I/O Control: 9-way D-sub female
Temperature: +0 to +42 C (-20 to +60 C extreme)
Frequency: 87.5 – 108MHz (76MHz to order)
Output Power: 0.3 – 6W
Power stability: Better than 0.25dB
Spurious (76-137MHz): <-100dBc (Fc > 500kHz)
Harmonics & Spurious: <-75dBc (30-1000MHz)
RDS Groups: PS, PTY, TP, TA, PI, RT, AF
Voltage: 100 – 250Vac 50-60Hz

Technical Specifications Antenna

Type: 1/4λ ground plane large band
Frequency range: RADIO band 87-108 MHz @ SWR ≤ 2.5
Impedance: 50Ω
Radiation (H-plane): 360° omnidirectional
Radiation (E-plane): beamwidth @ -3 dB = 78°
Radiation angle: 0°
Polarization: linear vertical
Gain: 0 dBd – 2.15 dBi
Max. Power (CW) @ 30°C: 600 Watts
Grounding protection: All metal parts are DC-grounded, the inner conductor shows a DC short
Connector: N-female

Description

Drive in FM / Events Transmitter Package

Key components of this comprehensive package include:

Aqua Broadcast Cobalt C-10 FM transmitter 10 Watt: a top-class digital device with 10 watts output power, DDS Exciter, Stereo Encoder, analog audio inputs, AES/EBU, MPX, Dynamic RDS, 4-band audio processor and SFN functions.
Sirio GP 87-108 LB N FM Antenna: This high-quality antenna is tuned for FM frequencies, enhancing signal reception and transmission efficiency. Its durable construction ensures long-term reliability, even in challenging outdoor environments.
15 Meters Ecoflex 10 Coax Cable with 2 x N-Connector: The included coaxial cable provides seamless connectivity between the transmitter and antenna, offering flexibility in setup and installation. With N-connectors on both ends, it ensures secure connections and minimal signal loss.

Specifications

Technical Specifications Transmitter

Technical Specifications Antenna

Additional information

Weight	15 kg
Dimensions	120 × 20 × 20 cm
