Description
D&R GSM Phone Hybrid – Wireless GSM hybride interface.
With the D&R GSM Hybrid you can add a simple and effective wireless interface that your reporters can call. With features like HD voice, Echo canceling, digital EQ and application control over USB on your PC it is a nice tool to expand the communication possibilities of your studio with your reporters in the field.Also perfect for your ouside broadcasts or OB van.ofcourse you can also use it in your (mobile) studio to take calls directly from th GSM network when no landline is available.

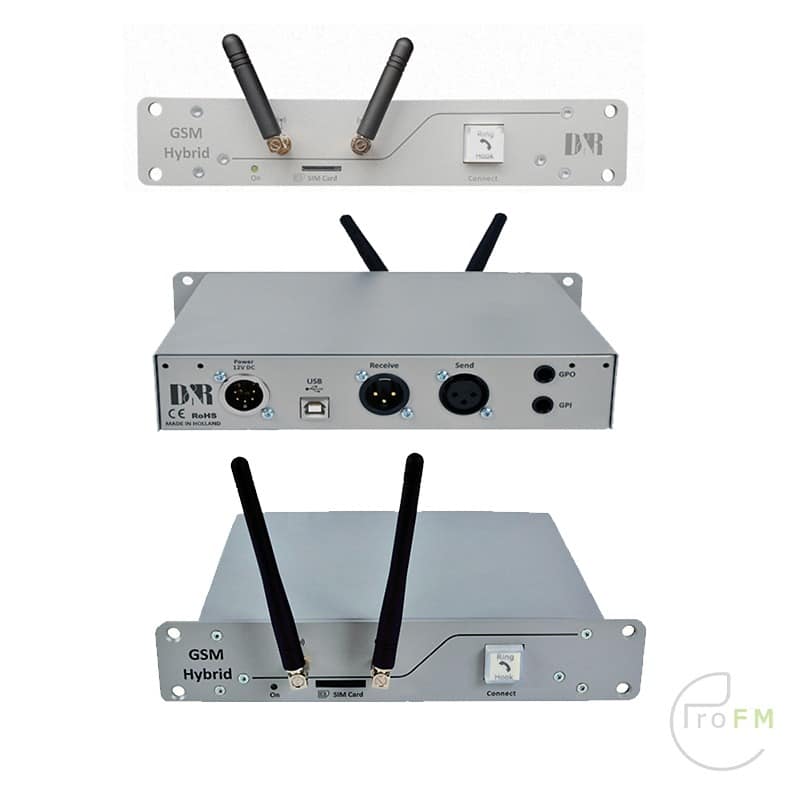

The GSM Hybrid has its own number reporters directly can dial, the call can be taken on the mixing console due to built in GPIO’s. The electronics are housed in a sturdy metal 9.5” rack mount case with antenna’s on the front side for optimum receiver conditions. An external 12 volt power supply adapter is part of the delivery. Software features are in and output metering and level control, phone dialing, number recognition and GSM signal strength indication.
Features:
- HD-Voice (AMR-WB/G722.2)
- Balanced Audio in/Out
- Echo cancelling
- Digital EQ Control
- Configurable AGC
- PC control application via USB
Software:
- Input and output level meters (ppm)
- Input and output gain adjust
- Phone dialling
- Number recognition
- GPIO configuration
- GSM signal strength indicator
Line input:: Balanced, 20kOhm, 22dBu max,
Output:: Balanced, 50Ohm, 21.5dBu max
Frequency response: 50 Hz up to 7000 Hz
USB: USB 1.1
GPO: Opto Fet 60V/550mA, Pmax=500mW
GPI: Pulldown to GND.
Tip:: Use opto coupler
GSM Bands: 900/1800MHz@GSM
Antenna:: SMA connector
DIMENSIONS/WEIGHT
Left-Right: 241mm (9,5 inch)
Front thickness: 3mm
Front to back: 174mm
Height: 44mm (1HE)
Weight: 2kg
Power: 90-230volt 50/60Hz
Voltage: 12Vdc
Supply Current: 1 Amp
