D&R Axite Digital Broadcast 12 Fader Mixer

The broadcasting industry is witnessing a revolutionary transformation with the introduction of the D&R Axite Digital 12 Fader Radio Broadcast Console. Based on the innovative AXUM platform, the AXITE is a state-of-the-art, modular, and completely preprogrammed console designed to meet the dynamic needs of radio broadcast stations. Let’s delve into what makes the AXITE a future-proof investment for your broadcasting needs.

Modular Design for Scalable Growth

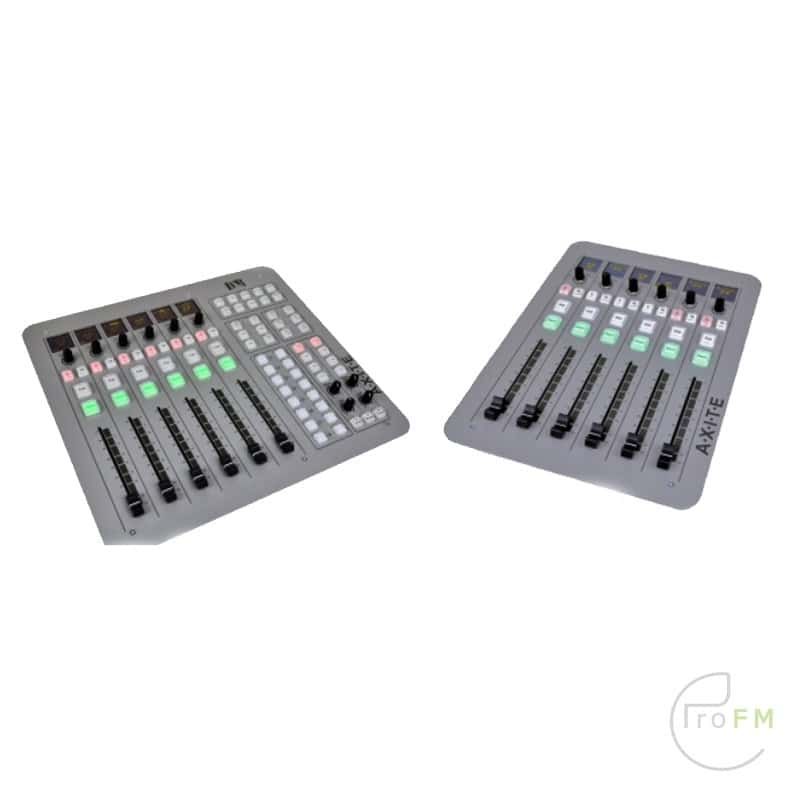

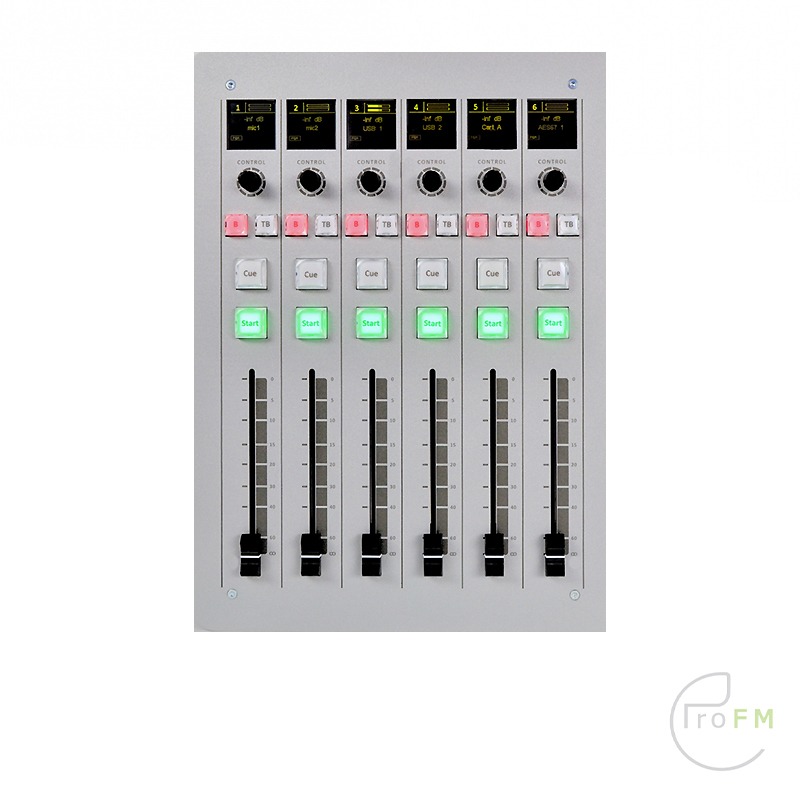

One of the most compelling features of the AXITE is its modular design, which allows for seamless scalability. Whether you’re operating a small local station or a large-scale production, the AXITE can adapt to your needs. Starting from a compact 6 fader desktop setup to a robust 128 fader configuration, this console is equipped to handle productions of any size. The possibility to share I/O cards between systems ensures that the AXITE can grow alongside your organization at any moment.

Unprecedented Control and Customization

Imagine a broadcast console that offers unparalleled flexibility in control. The AXITE turns this imagination into reality by allowing users to customize switches, encoders, and faders to perform a variety of functions. With hundreds of functions readily selectable from a database in your AXITE/AXUM browser, the level of customization at your fingertips is truly remarkable. This feature alone sets the AXITE apart from traditional consoles, offering a personalized broadcasting experience.

Advanced Connectivity and Integration

The AXITE simplifies hardware integration and connectivity. It supports two control surfaces, each with its own CRM sections, in different studios sharing the same I/O rack without any hassle. High-quality, low-cost STP cables ensure a reliable and efficient connection with studio equipment. Furthermore, the AXITE’s internal webpage facilitates remote control of all settings from anywhere in the world, providing flexibility and ease of use.

Robust I/O Capacity and Signal Processing

With Rack ONE and Rack TWO offering extensive I/O capacity and the control surface frame’s scalability up to 128 faders, the AXITE is a powerhouse of connectivity and control. A large matrix of 1280×1280 with advanced signal processing capabilities on up to 128 stereo channels ensures superior sound quality. The console supports sixteen stereo summing mixing buses and sixteen monitor buses, catering to the most demanding production requirements.

Future-Proof Your Broadcast Station with the AXITE

Choosing the D&R Axite Digital 12 Fader Radio Broadcast Console means investing in a future-proof platform that promises to evolve with the broadcasting landscape. Its modular design, customizable controls, advanced connectivity, and robust I/O capacity make the AXITE an ideal choice for radio broadcast stations aiming for excellence in their productions.

Highlights:

• 6 to 126 Alps faders
• Faders can be used for channel faders and buss master faders
• Scalable On-Air/Production Console
• Separated control surfaces and I/O racks

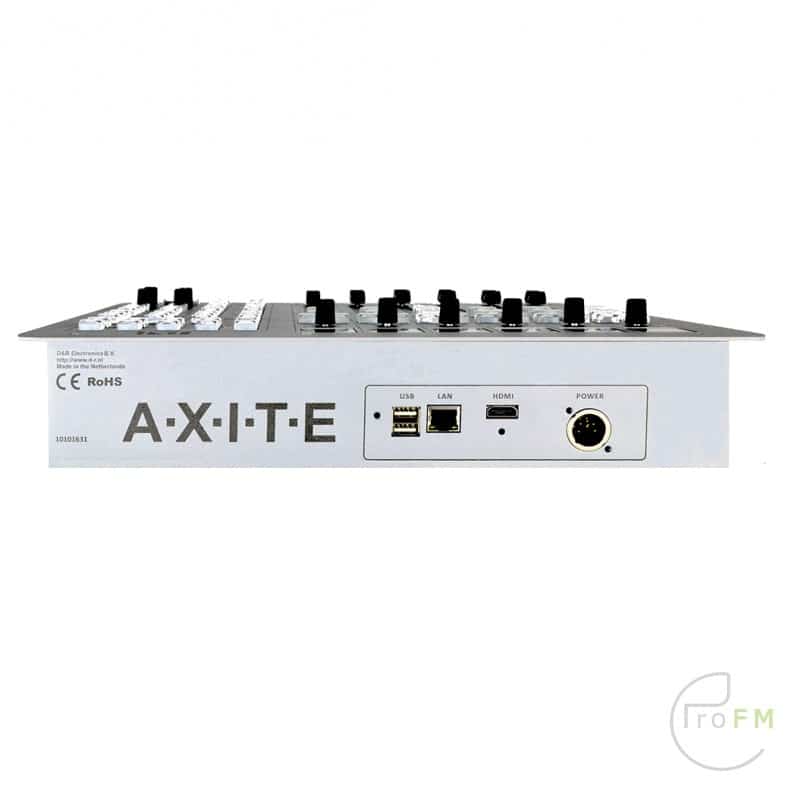

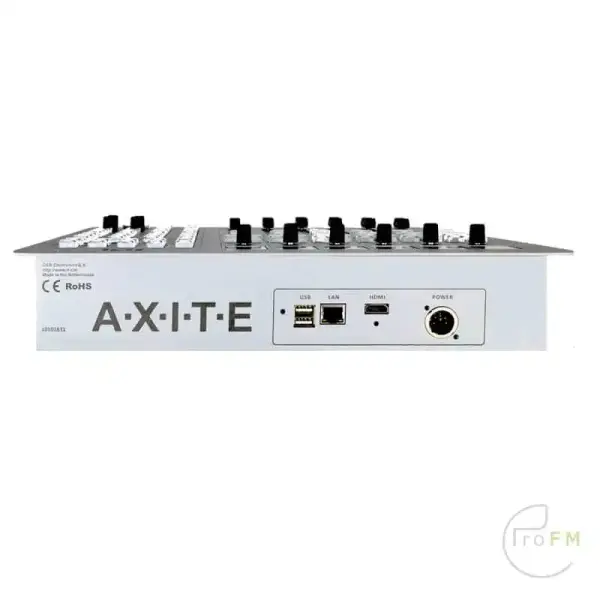

• Control surfaces connected by Ethernet.
• Internal website for console setup. (already pre-programmed in the factory)
• I/O matrix of 1280 x 1280
• 16 stereo summing buses (Prog, Sub, Cue, Comm, 12x Aux) and 4 stereo monitoring buses
• 16 Talk back buses
• 4 stereo monitor buses per DSP card
• Inputs can directly assigned to the outputs
• 128 Stereo DSP channels max (4 DSP Cards inserted)
• Digital gain control
• 6 band comprehensive EQ
• Enhanced Voice Processing built in
• Processing presets
• Module presets
• Console presets
• Direct outputs available
• Converters are 24bit / 96kHz
• Dante Option
• Cobra Net option
• Assignable channel meters in version 3.0
• Pop up Equalizer graphics per channel

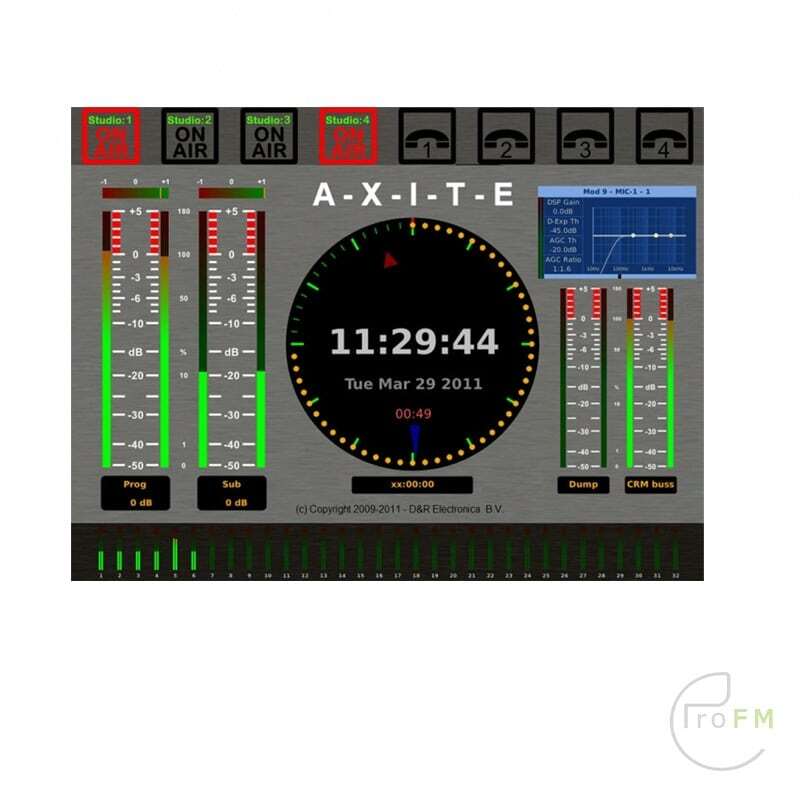

• On-Air indication on screen
• Phone indication on screen
• Phase meters on modules, buses, monitor
• High precision Broadcast Clock
• Redundant power supply optional for both Control Surface and I/O rack
• Optional Remote Control Surface application

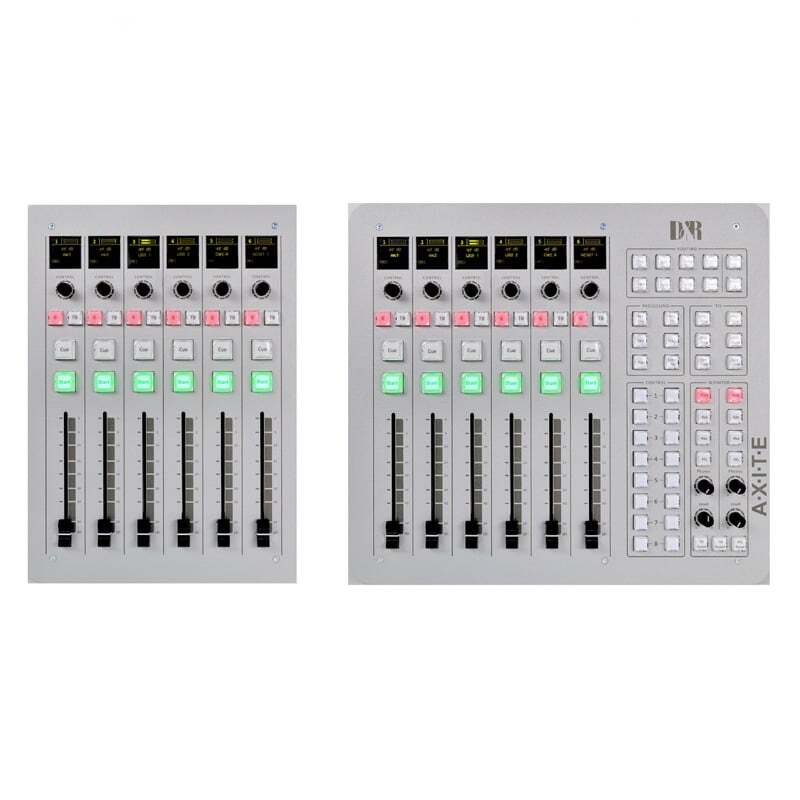

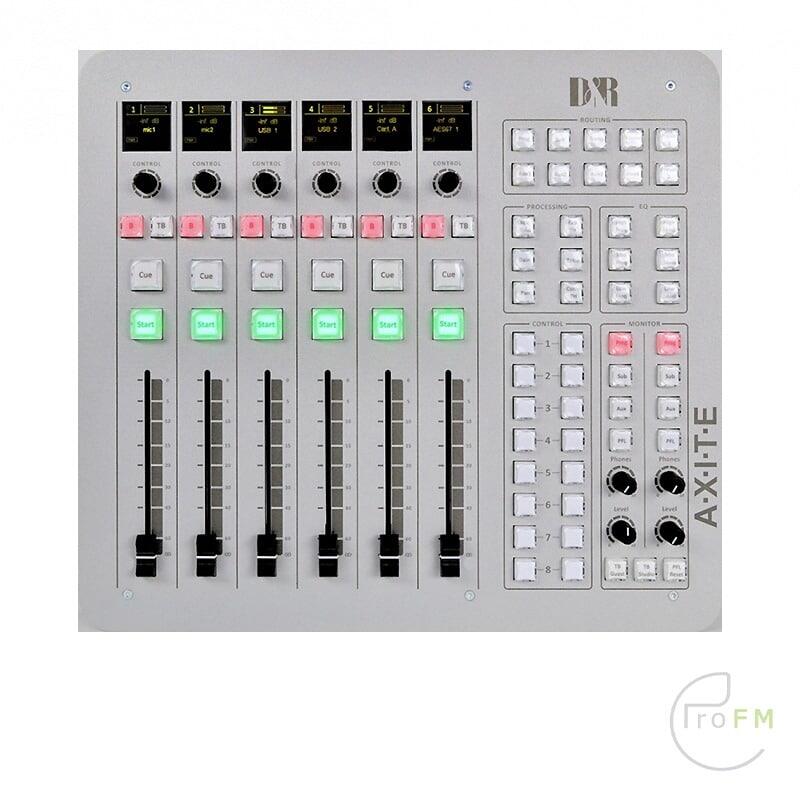

This example configuration of the AXUM digital mixing console has a control surface of 12 Motorfaders and a CRM/Studio section, ready to be used.

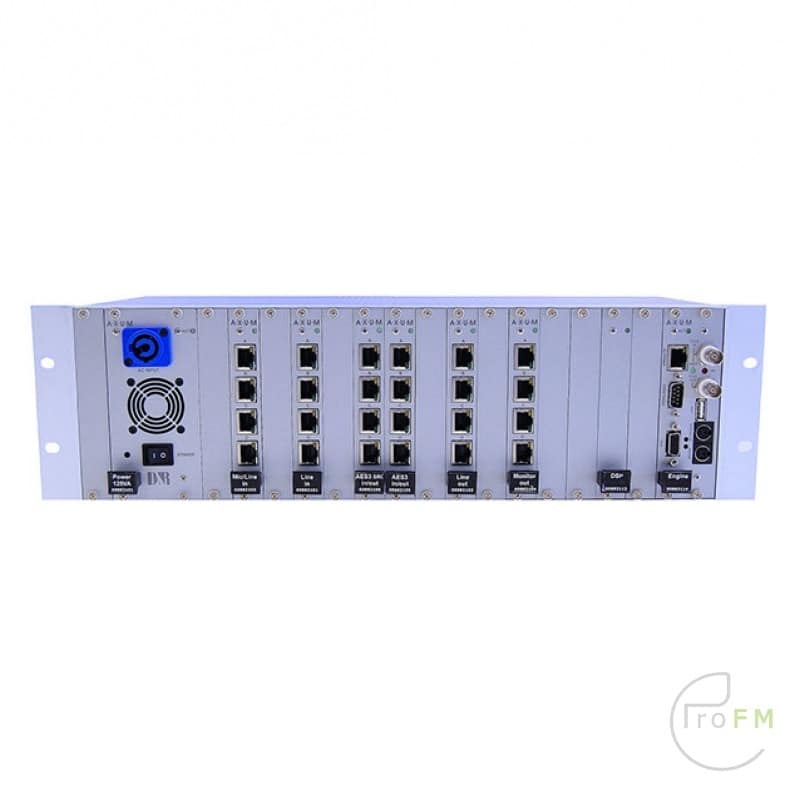

The I/O rack ONE is loaded with the following cards:

• 1x Axum Rack Engine
• 1x Axum Power Supply
• 1x Axum DSP processor for 32 stereo channels
• 1x Mic AD (4xMic input and 8x GPIO
• 2x Line AD (8x mono or 4 stereo line inputs and 8x GPIO)
• 1x Line D/A (8x mono or 4x stereo, 8x GPIO)
• 1x D/D card with sample rate converter (4xAES3 out/in and 8x GPIO)
• 1x CRM D/A Card (2xstereo, 2x Headphone and 8x GPIO)
• 8x Blind frontpanels for more I/O cards
• 4x Break out panels

Available I/O Cards

• MIC-AD, 4 Mic input GPIO on RJ45. (1 slot)
• LINE-AD, 8 Line input (4 stereo) GPIO on RJ45. (1 slot)
• LINE-DA, 8 Line output (4 stereo) GPIO on RJ45. (1 slot)
• DDsrc, 4 stereo Dig in/out, with Sample Rate Converter GPIO on RJ45. (1 slot)
• Telephone Hybrid card (4 lines). (1 slot)
• Firewire Card. (1 slot)
• AES67/USB card (1 slot)
• CRM / Phone output Card (2x balanced stereo line 2x stereo Phones) (1 slot)
• DSP Audio module (32 stereo processing channels, 2 CRM/Studio) (1 slot)
• ENGINE Card, 2 slots (always necessary)
• Power supply card, 3 slots (always necessary)

This example configuration of the AXUM digital mixing console has a control surface of 12 Motorfaders and a CRM/Studio section, ready to be used.
The I/O rack ONE is loaded with the following cards:

• 1x Axum Rack Engine
• 1x Axum Power Supply
• 1x Axum DSP processor for 32 stereo channels
• 1x Mic AD (4xMic input and 8x GPIO
• 2x Line AD (8x mono or 4 stereo line inputs and 8x GPIO)
• 1x Line D/A (8x mono or 4x stereo, 8x GPIO)
• 1x D/D card with sample rate converter (4xAES3 out/in and 8x GPIO)
• 1x CRM D/A Card (2xstereo, 2x Headphone and 8x GPIO)
• 8x Blind frontpanels for more I/O cards
• 4x Break out panels
