Description

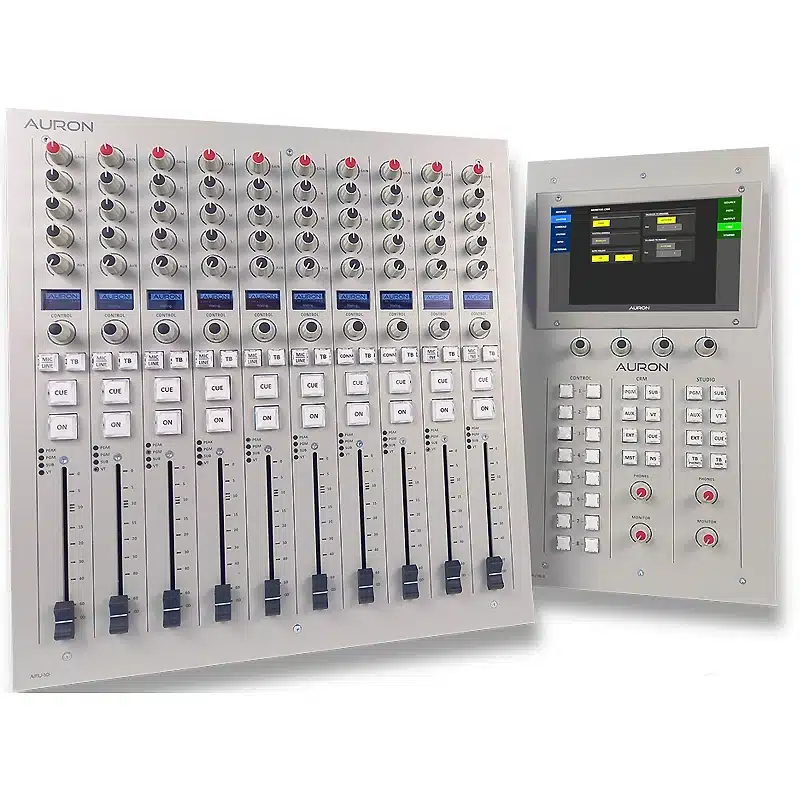

D&R AURON Radio Broadcast Console
Meet AURON, our latest innovation in radio broadcast technology, designed for ultimate flexibility and expansion. With its unmatched bandwidth of over 100kHz for the highest audio resolution imaginable and the many options the AURON will offer you, this console will be a seamless integration into any studio environment.
Versatile AURON fader modules
Choose between the Mic/Line Module for traditional audio or the USB/VoIP Module for digital and networked sources.
Expandable audio slots
The AURON’s dual card slots offer flexible I/O options, including Telco (POTS), WPC (Wireless Phone Channel), AES input, RIAA phono, and Multichannel Dante (8 channel stereo).

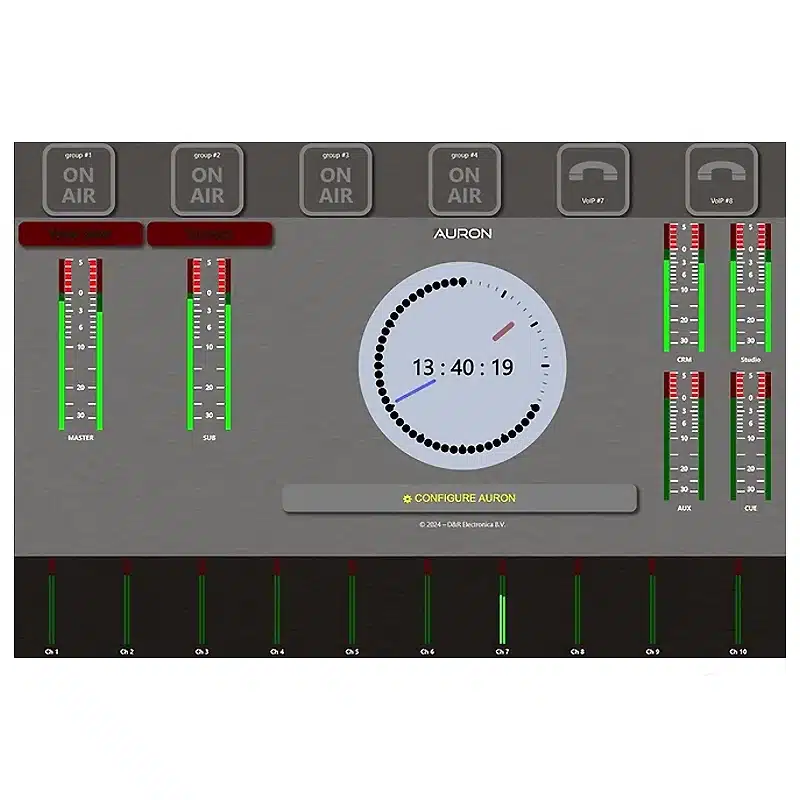

7-Inch LCD touchscreen
The Master module’s touchscreen provides intuitive control over customizable settings and routing.
OLED module displays
Clear OLED displays above each encoder make channel selection and programming effortless.
Network integration
The AURON Master module connects directly to your network for seamless integration.
GPOs for external control
Backplane GPO’s allow easy control of Studio remotes and On-Air lights.
Premium fader options
All channels feature smooth K-Alps faders, with an option for motorized faders for precise audio control.

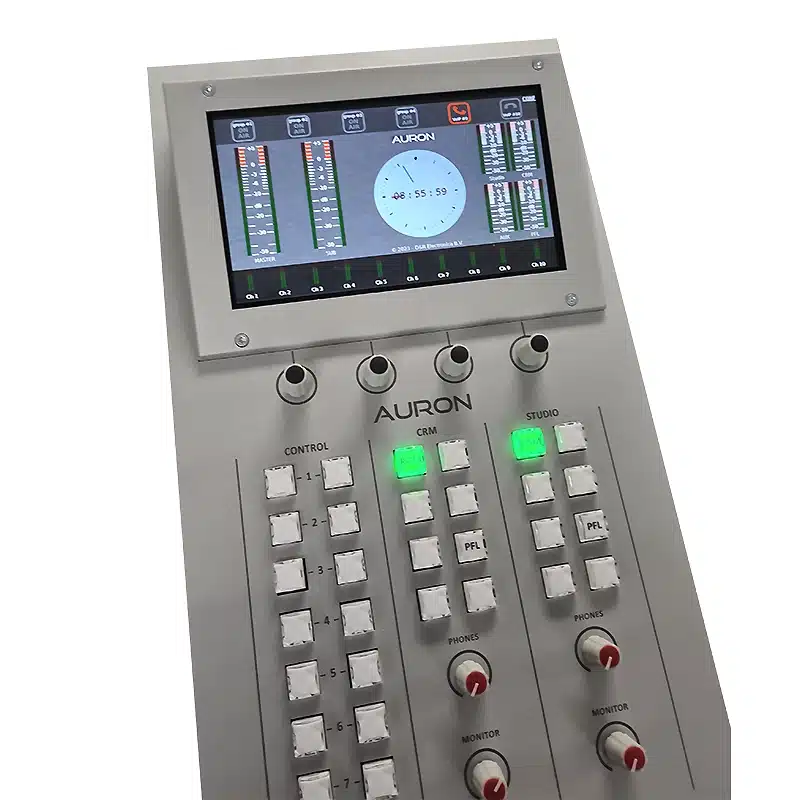

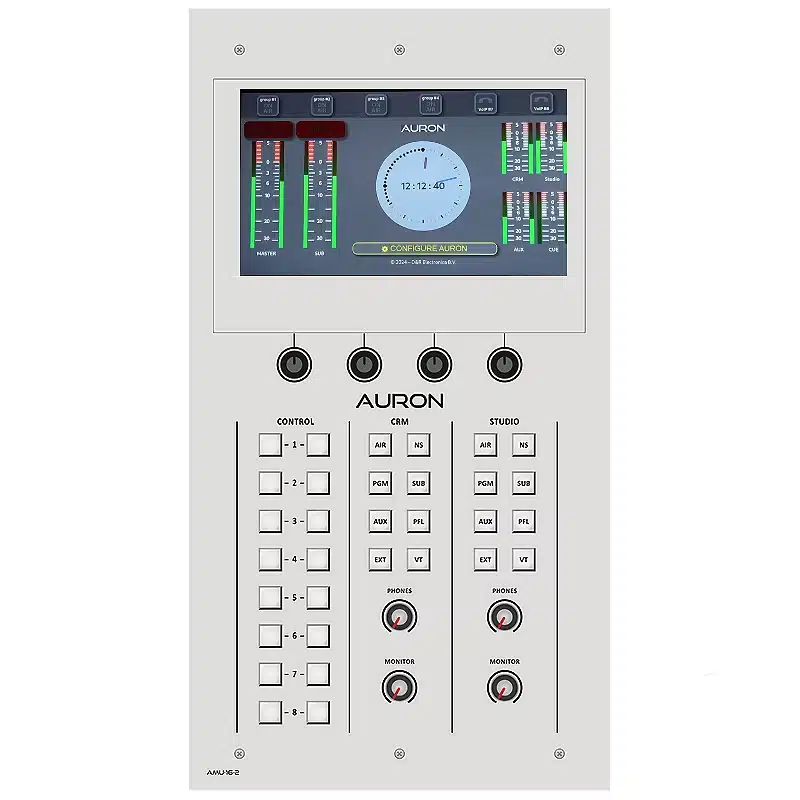

AURON: master module:
LCD display:A 7-inch color touchscreen paired with encoders and general-purpose control buttons, offering flexible operation of software applications and audio monitoring.
4 encoders: To manage various functions displayed on the integrated LCD screen above
Studio section: Here, you can select and control all input sources for the Studio Monitor, giving you complete oversight of the studio’s audio environment
CRM (Control Room Monitor) section: This section lets you manage all input sources for the Control Room Monitor.
Control section: A bank of 16 switches allows you to easily trigger jingles in your playout software, providing quick access to essential audio elements.

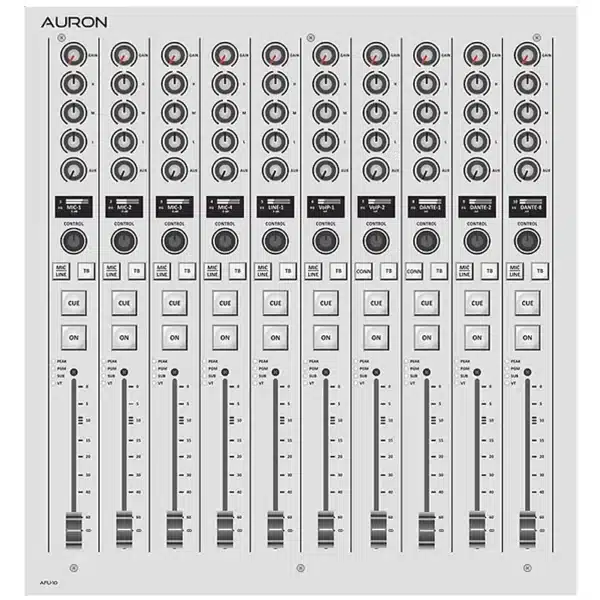

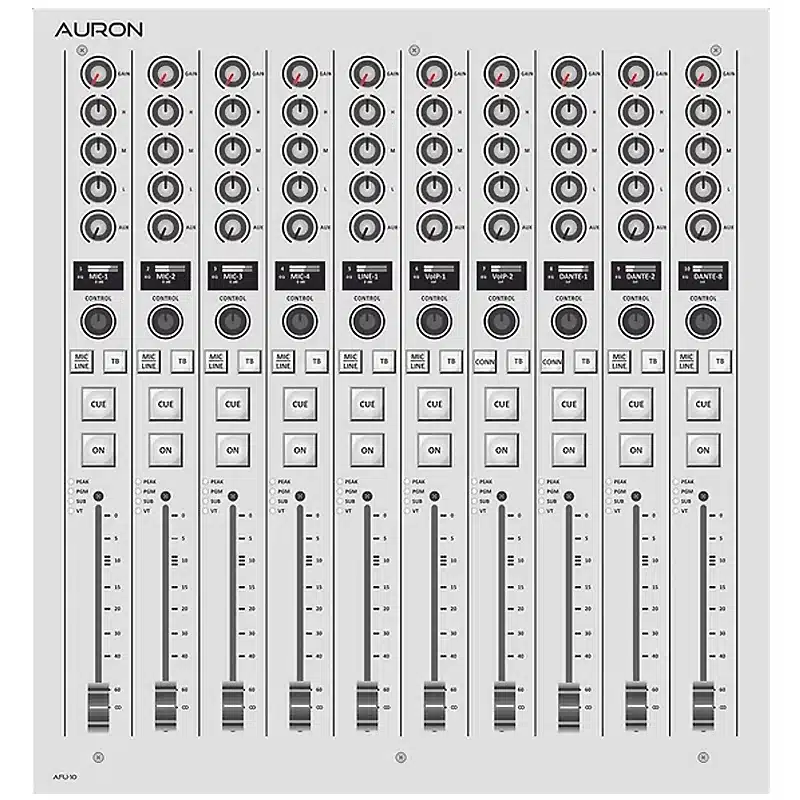

The AURON fader unit
This is the AURON 10-channel fader unit. One of these units are always needed with a Master unit as a standard package.
If more channels are needed, you can always add another 10-channel fader unit easily with a 44P cable to the first 10-channel fader unit.
Two different kind of modules (cards) are available on this moment, configured by yourself inside these 10 channel slots:
1- The MIC / Line card:
Connect microphones, stereo line inputs, and studio remotes directly with this card.
It includes internal access to expansion slots, a 4-step software-programmable gain for precise control, low-noise optimization, switchable phantom power for condenser mics, and an insert jack for adding extra sound processing.
2- The USB / VoIP / Line card:
This card allows you to connect USB and line inputs, with added VoIP functionality over USB, perfect for managing clean feeds to callers.
It also provides balanced input and clean feed output connections for external telecom devices, like telephone hybrids.
With Direct Talk and fader start features, your broadcasting workflow becomes more efficient and seamless.
AURON: options:
These extra options give you the opportunity to configurated your AURON yourself according to the technical needs that exist in your studio.
- Choose your module: Whether you’re working with traditional audio sources or digital/networked inputs, the AURON has you covered. Select between the Mic / Line Module for classic audio connections or the USB / VoIP Module for digital and networked sources.
- Choose your slot:The AURON’s dual card slots provide a wide range of I/O options, including Telco (POTS), WPC (Wireless Phone Card), AES input (available soon), RIAA phono (available soon), and Multichannel Dante (8 channel stereo).
- Choose your fader: Each channel features smooth K-Alps faders, with an optional upgrade to motorized faders for those who demand precise audio control.
- Choose your units: For most setups, a single Master module and a 10-channel fader unit are all you need. Need more channels? Simply daisy-chain additional fader units for expanded capabilities.
- Choose your breakout panel: The AURON uses the industry-standard RJ45 connectors with STP (Shielded Twisted Pair) cables, ensuring a reliable and interference-free connection to I/O racks.
- Our proven breakout system, with balanced ¼” Jacks and XLR connectors on the front and shielded RJ45 connectors on the back, makes connecting your digital audio components easy.
- Choose your external devices: For an even more integrated setup, consider adding our On-Air Light and Studio Remote unit, designed to seamlessly connect with and enhance your AURON mixer.
AURON: software:
AURON is working on DNR OS (DNR Operating System), a custom-built operating system designed specifically for D&R products, providing a robust and efficient embedded Linux environment.
Based on Buildroot, DNR OS is tailored to meet the unique needs of audio processing and broadcast equipment.
AURON: software Key features and requirements:
Remote updating: Easily update the system software remotely to ensure your equipment is always up-to-date. - Splash logo at start-up: A custom splash logo appears during boot-up for a professional, branded experience.
- Small footprint: Designed to use minimal system resources, ensuring smooth operation even on limited hardware.
- Fast boot time: Optimized for quick start-up, getting your system up and running without delay.
- Easy configuration: Customize the OS (Operating System) easily with a menu-driven interface for selecting and configuring packages.
- Hardware compatibility: Currently supports Compute Module v3, with potential future support for CM4 for optional Stereo Tools processing.
- Automatic process start: Automatically and orderly starts essential Auron processes, including the gateway, logger, address, and engine, ensuring reliable operation.
DNR OS (DNR Operating System) is engineered to provide a seamless, efficient, and customizable operating environment for D&R’s high-performance audio products.
The AURON offers advanced control and automation capabilities through its support for API integrations, such as Ember+ and WS-JSON.
These protocols enable seamless communication between the console and external software systems, allowing broadcasters to customize, automate, and extend the functionality of their AURON setup.
Ember+ (Evolving Media Broadcast) is a widely-used open standard protocol designed for remote control and automation of broadcast equipment.By integrating Ember+ with the AURON, you can achieve full control of the console’s settings and functions remotely.
Key features of Ember+ integration:
-
-
Ember+ enables real-time control of AURON’s faders, input levels, and routing. Operators can adjust levels, mute channels, or modify signal routing remotely through a compatible Ember+ controller or software interface.
-
-
Customizable signal routing:
-
With Ember+, you can dynamically route audio signals between different sources and destinations on the console. This allows for complex setups, such as automatically switching between different input sources based on preset conditions.
-
-
Synchronization with broadcast systems:
-
Ember+ allows AURON to synchronize with other broadcast equipment, such as routers, audio processors, and video switchers. Through a unified control system, all devices can be controlled and monitored from a single interface.
-
-
Remote management:
-
AURON can be monitored and managed from remote locations via Ember+, providing flexibility for off-site producers and engineers. Operators can adjust settings without physical access to the console.
-
Use cases for Ember+:
Automated broadcast workflows: Create preset broadcast workflows that automate fader movements, signal switching, and audio processing during live broadcasts.
-
Remote studio control: Manage multiple studio setups or remote broadcast locations from a central control room using Ember+ integration.
-
Custom interface development: Build custom user interfaces or control applications that interact with the AURON console via Ember+ for a tailored user experience.
WS-JSON Protocol Integration
WS-JSON (WebSocket-JSON) is another protocol supported by the AURON, providing a flexible and lightweight communication interface through WebSockets using JSON data structures. WS-JSON is ideal for real-time communication between the console and web-based applications or other external systems.
Key features of WS-JSON integration:
-
Real-time control and feedback:
-
WS-JSON allows for instant, bi-directional communication between AURON and external applications. You can send control commands to the console and receive real-time feedback, such as fader positions, input levels, and other status indicators.
-
-
Web-based application integration:
-
The WS-JSON protocol makes it easy to build custom web applications that interact with the AURON system. This allows for remote control interfaces accessible via any web browser, providing flexibility for broadcasters working in distributed environments.
-
-
Streamlined communication:
-
By using WebSockets, WS-JSON ensures low-latency communication, ideal for live broadcast scenarios where timing is critical. Data exchanged through JSON is lightweight, making it efficient for real-time updates without heavy bandwidth consumption.
-
-
Custom automation:
-
You can build custom automation systems using WS-JSON to trigger specific actions on the AURON console, such as adjusting audio levels, switching inputs, or starting recordings, based on external events or triggers from other systems.
-
Use cases for WS-JSON:
Remote web-based control panels: Develop browser-based control panels for remote producers or engineers to manage AURON’s input and output channels.
-
Real-time monitoring dashboards: Create real-time dashboards that display the status of the console, including live metering and error reporting, for quick oversight of ongoing broadcasts.
-
Third-party application Integration: Integrate AURON with third-party broadcast management systems, such as automation software, playlist schedulers, or logging systems, using WS-JSON to control the console remotely.
AURON: web interface:
The D&R AURON radio broadcast console provides seamless integration of external audio sources through its intuitive web interface. This will walk you through configuring external inputs, such as microphones, line inputs, and auxiliary sources, ensuring optimal performance and flexibility in your broadcast setup.
Price for this example configuration: AURON Master + 10 Channel unit K-ALPS faders with 8x Mic-Line and 2x USB-VoIP + Break out Panel
