D&R Airence-6 Main Fader Broadcast Production Console / Mixer.

The D&R AIRENCE USB is designed to be the focal point for local radio production work in the studio or… at home. It’s understandable features makes it the ideal companion for rapid on-the-spot radio programs. The AIRENCE is compact, reliable and 19″” rack mounting ideal for production rooms. It can also double as an On-Air mixer or implemented as your own Internet Internet Radio station. If your budget is tight start with the 6 channel version which is a complete system to begin with. And it never becomes obsolete as it can be used as pre-production mixer, if, at a later date, you fit in a larger On-Air mixer. And.. if more inputs are needed hook up the AIRENCE-EXT and instantly you have 6 more triple inputs with each giving you a low noise Mic and 2x stereo line inputs under control. The Cue buss is of course linked. Not enough? Buy another 6 channel unit to expand to 18 or even more input channels. Every unit is individually powered by a modern digitally switched power supply to create high efficiency in power consumption. Also power supply redundancy is an option because the power supply unit is external.

CONTROL SECTION

On the right side of the mixer you see 24 illuminated (green/red or yellow) switches. These switches can be used to control functions in your Radio Automation such as starting jingle machines and switching between live and NON stop. Recording a voice track while ON-AIR is one of the possibilities.A built in USB controller, specially tailored by D&R and programmable by yourself, to make radio even more exciting.

SOFTWARE

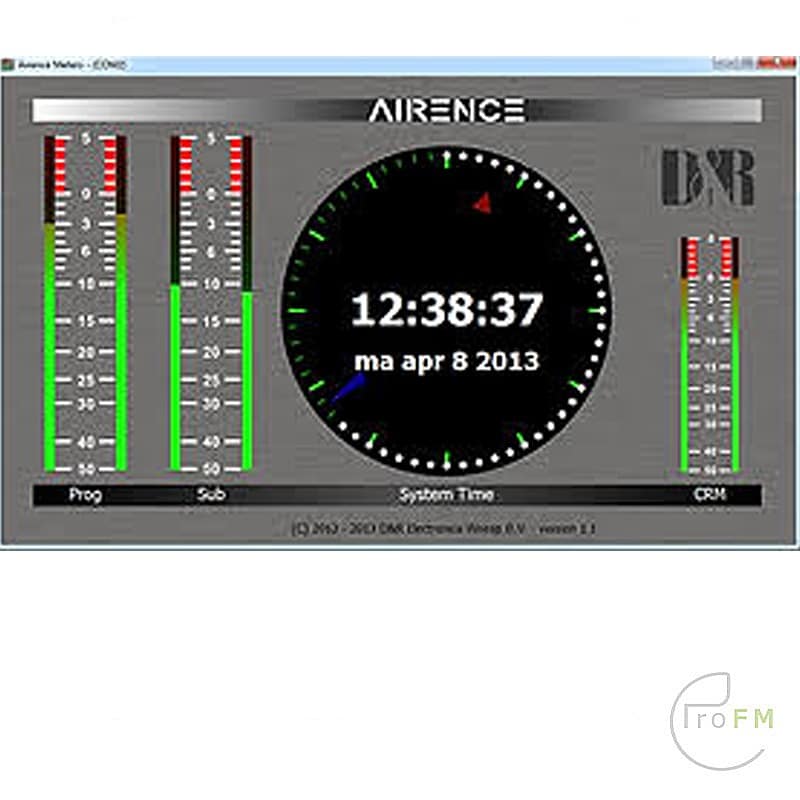

The AIRENCE sends out control signals over USB based on the HID protocol. This means that the main output signals can be displayed on a TFT screen in a beautiful meter application. Both Program and Sub stereo signals are shown on a high resolution PPM. A smaller separate stereo meter shows all signals heard through the CRM speakers. At the same time this software application shows you a professional looking Radio clock that is synchronized by the nearest NTP server over he Internet.

MIC, LINE, USB AND TELEPHONE IN-OUTPUTS.

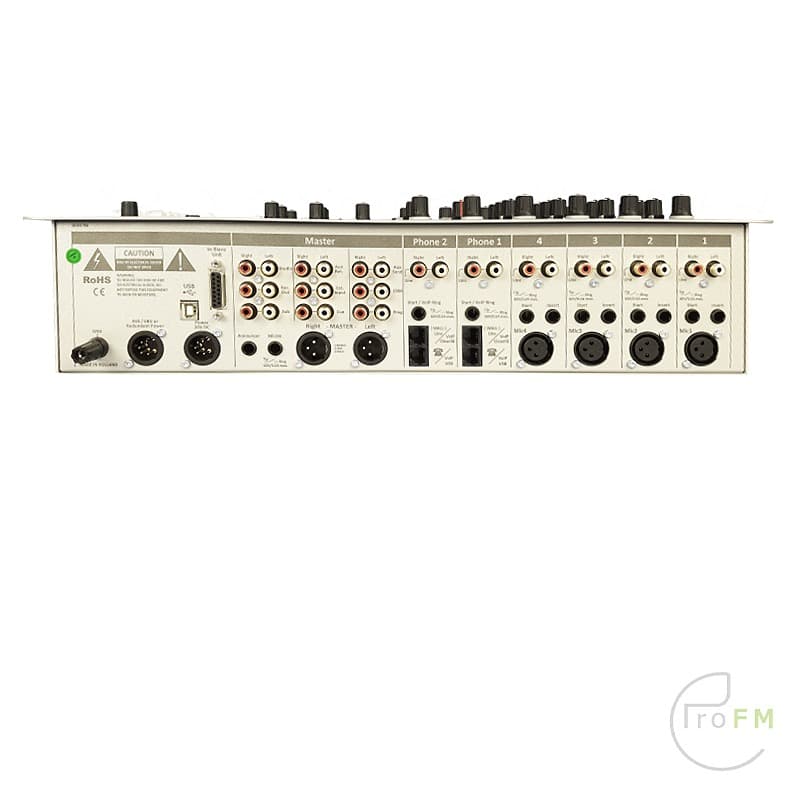

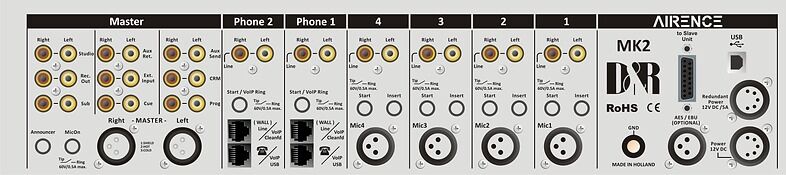

This brand new AIRENCE-USB model has 4 balanced mic inputs ( 48 phantom is standard) with inserts for signal processors, 6 stereo line inputs, 4x USB channels and 2x Telephone Hybrids. One physical USB connection is the interface to transfer 4 stereo audio channels from and to your PC. Channel 5 and 6 have, apart from the stereo line input, also RJ-11 connectors to interface with an analog telephone line and a common dial unit. High quality built in Hybrids with R and C balance and direct Talk back to the Hybrid channels makes conversation with callers very easy. The illuminated front panel ON switch is wired in series with the built in mechanical faders start enabling selection of a play-out start either by fader or via the ON switch. Fader start generates in the Mic mode a Mic-on signalling to switch ON-Air lights. There is a 3 band Equalizer on channel 1-4 and on all 6 Triple input channels of the Extender Unit. The stereo Aux send can be set pre or post fader. All high quality mic inputs have low cut jumpers.

EXTENSIVE MASTER SECTION DE-SIGNED WITH RADIO IN MIND.

The D&R Airence 6 Fader USB Broadcast Mixer has all the master controls such as 100 mm stereo master faders, stereo Aux send and return, monitor master with “”follow phones”” and a phones output with a split listen function. There is a balance control to continuously adjust the volume between main output and stereo Cue signal. In addition, there is a special Radio On-air/production section featuring: Self-op switching (Mute Active) to automatically cut control room level when the D.J. mic is active. A special Studio output that normally follows main output but can be switched so that the main output, or any cue signal that is selected, can be heard when in the “”follow phones”” mode. Also here is a Speaker Mute-Activation possible when presenters use loudspeakers in the studio room. You might have noticed that the channels have Sub and Program routing. It means that production (voice tracking) can be done on the sub output while ON-AIR. The AIRENCE can also be used for production while ON-AIR when it is put into the NON-STOP mode. A single switch routes one of the 4 USB channels directly to the main outputs A large Talkback switch activates the built-in electret talkback microphone for communication.
