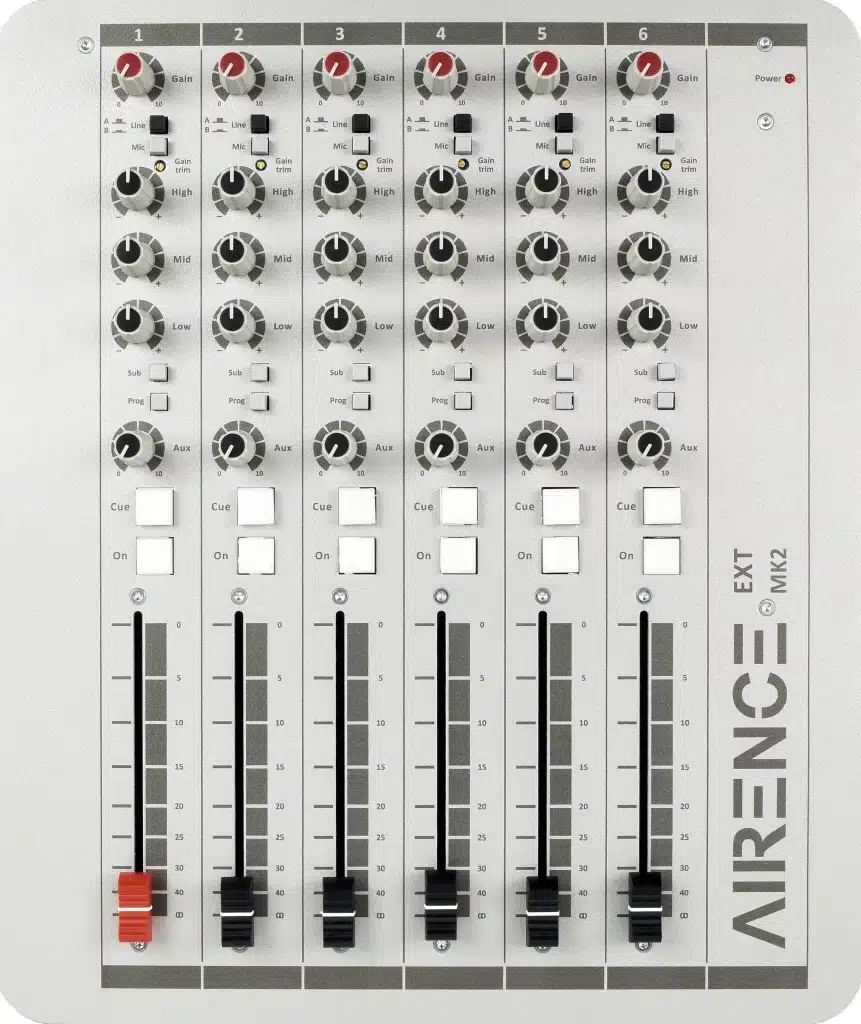

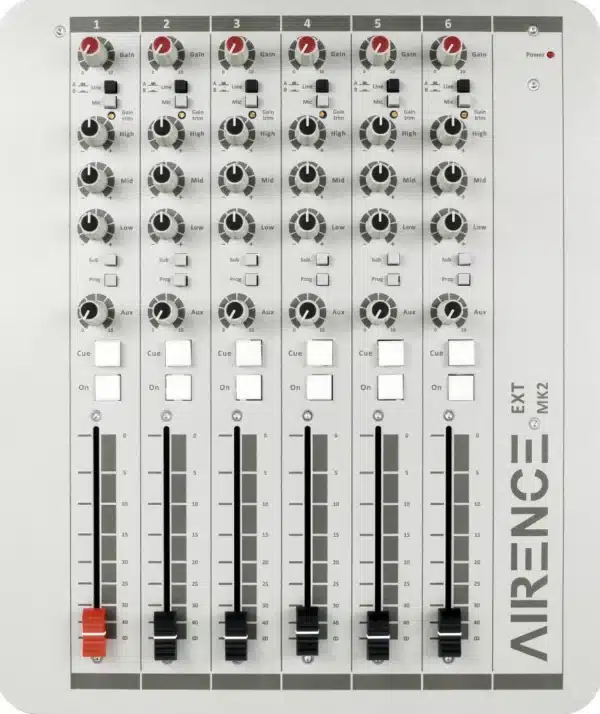

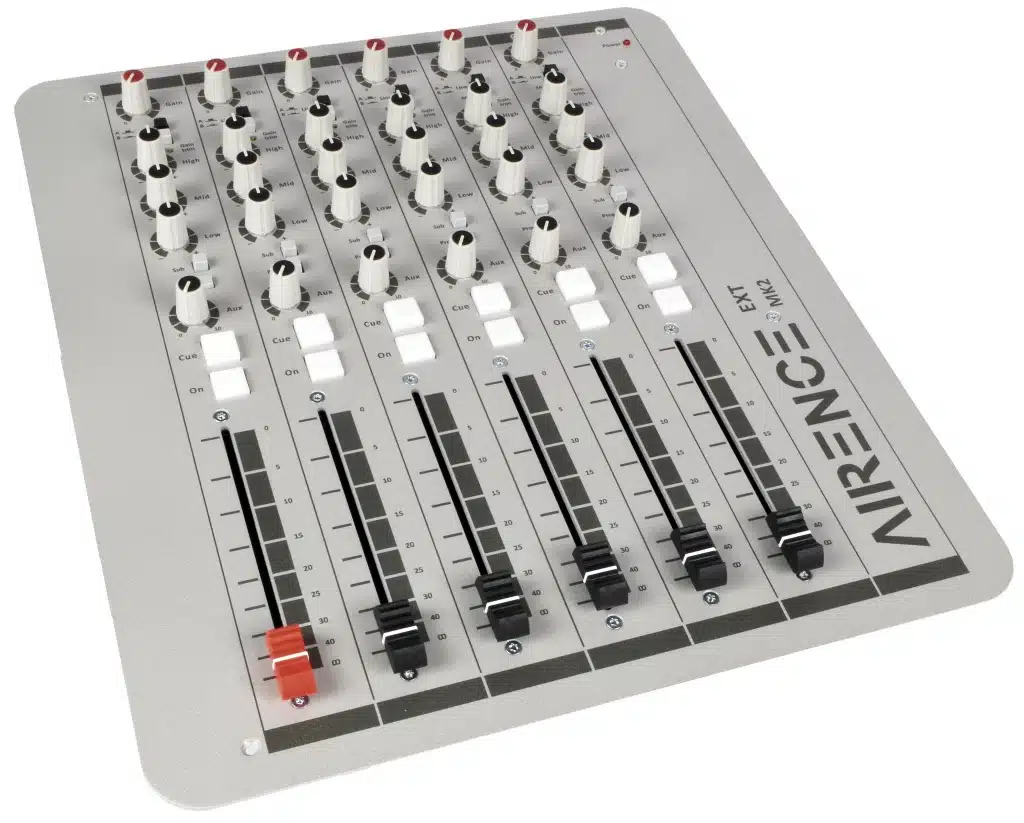

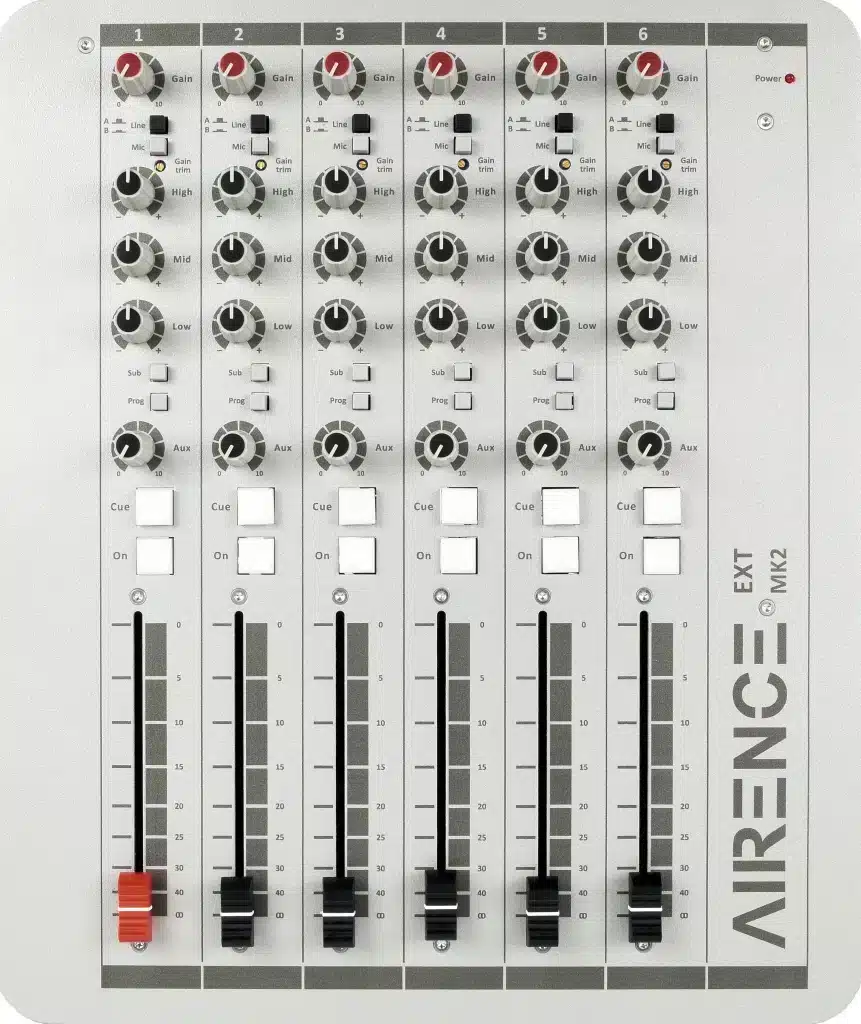

D&R Airence-6 Main Fader Extender

Expand your Airence setup with extension units featuring six triple input channels, high-end Mic inputs on XLR, and two stereo line-level inputs on Cinch (RCA) connectors, easily connected to the main unit.
If you need more inputs, the Airence-EXT(ender) unit is the perfect solution. Instantly expand your setup with 6 additional triple inputs, each providing you with a low-noise Mic and 2 stereo line inputs under your control.You can add more extender units to your main unit to expand to 12-18-24 channels if needed.

• Phono pre-amp (option): Line level B can be converted into a Phono pre-amp by adding the optional RIAA preamp.
• Expandability: You can install as many Airence Extender units as needed to your Airence Main unit.
• Easy onnection: All units are easily connected using the included 15-pin Sub-D connector cable and individual 12V power adapters.

If you purchased your unit before 2022 (version 9 or lower), please note that it cannot be combined with units purchased after 01-01-2022 (version 10).
A critical internal change in the power supply (from 36v to 12v) has been implemented. Attempting to connect an old unit to a new one will result in severe damage to your equipment.
Please ensure that you are using compatible units to avoid any potential damage. If you have any questions or concerns, don’t hesitate to contact our technical support team for assistance.

D&R Airence-EXT Specificaties
6-channel broadcast expansion module for Airence-USB
with additional Extender can be expanded with 6 additional channels
+48V phantom power on all microphone channels
technical data
frequency range: 10 Hz – 60 kHz
THD: <0.01%

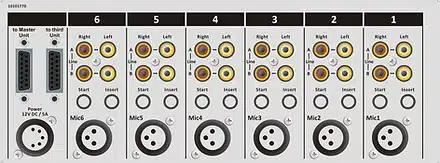

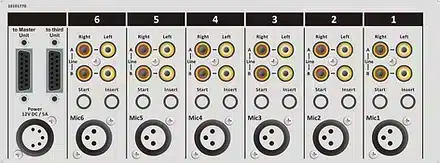

connections
12x line in (RCA; A/B)
6x start (6.3 mm TRS jack)
6x insert (6.3 mm TRS jack)
6x mic in (XLR)
Airence-USB in (Sub-D)
Extender out (Sub-D)
5-pin XLR power cable
dimensions cut-out: 344 x 270 mm (LxW)
dimensions: 355 x 302 x 101 mm (LxWxH)
weight: 7 kg
included: VU meter software, extender cable (1m), power adapter
