Description

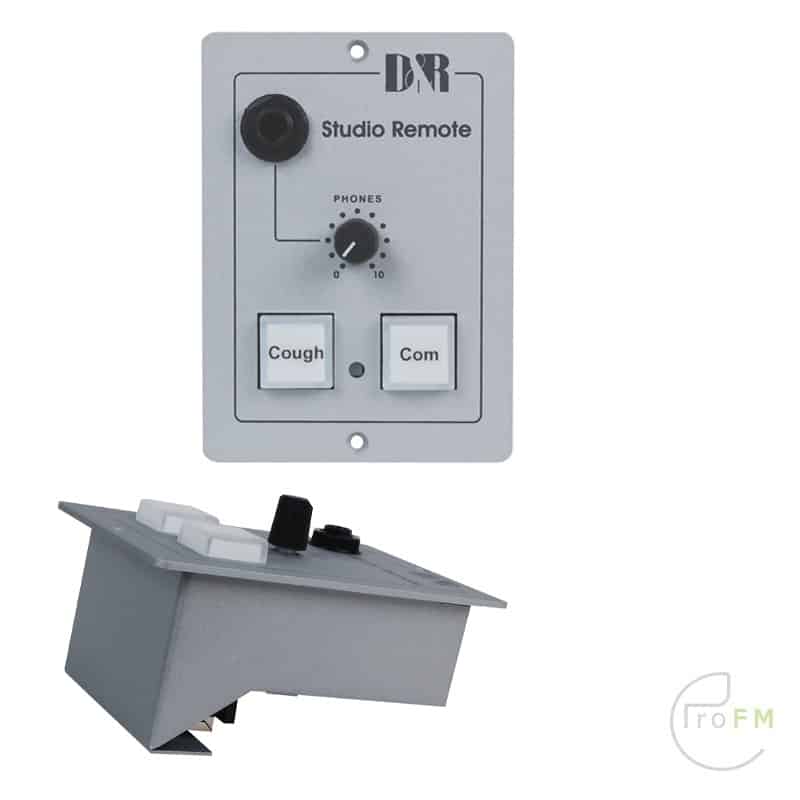

D&R Studio Remote
The Studio Remote solves your communication needs between Studio and Presenters area. It is designed to be the remote and communication interface between the mixing console and the announcer or guest.
It’s the perfect solution for headphones amplifier and Chough/Communication button for announcer and/or guest.To be used with the AXUM, AXITE, Airlab-DT, Airence Extender, Airmate-USB and the Airlite MK2 consoles.
Features
- Built in headphone amp
- Red/Green LED indication
- 3 models available
- ideal for our AXUM, AXITE, Airlite MK2, Airence Extender, Airmate-USB and Airlab-DT consoles
- 2 channel mixer
CHOUGH BUTTON
When pushing this button the channel to which this Studio Remote unit is connected will be muted (to be able to cough).
COM BUTTON
When the COM button is pushed, now also the channel to which this Studio Remote unit is connected will be muted. But at the same time the CUE switch in that channel will be activated to COMmunicate with the engineer at the mixing console.
The unit can be connected directly to the AXUM / AXITE / Airlab-DT / Airmate-USB / Airlite MK2 / Airence Extender consoles.
specs
Phones Output (Stereo Jack, front)
Tip Phones Left > 16 Ohm
Ring Phones Right > 16 Ohm
Sleeve GND
150mW in to 16 Ohm
75mW in to 32 Ohm
45mW in to 64 Ohm
Width x Depth x Height:80x110x50mm
Drop through hole: 92x72mm
Front panel thickness is 2mm
Corner radius is R=4.00
Audio input (RJ45 or Stereo Jack) on the back of the PCB
Tip Left 10kOhm
Ring Right 10kOhm
Sleeve GND
