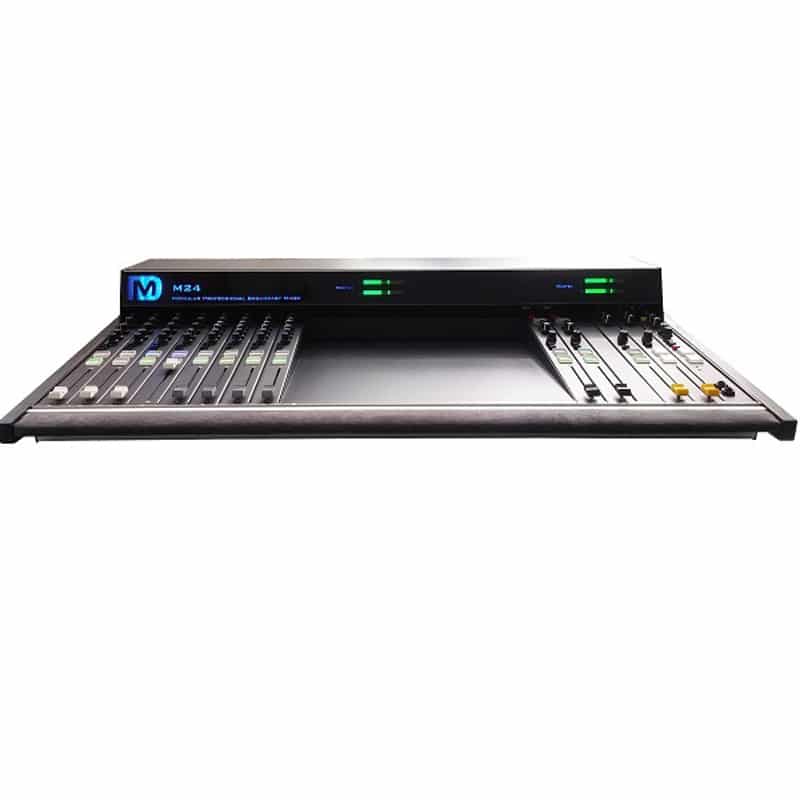

DM Broadcast M24 Analog Radio Mixer

Fully customizable console designed for both Radio and TV Stations. Suitable for OnAir and production studio with 12 or 24 modules.
Connect your mics and line inputs and get in touch with your listeners with the built-in telephone hybrid.

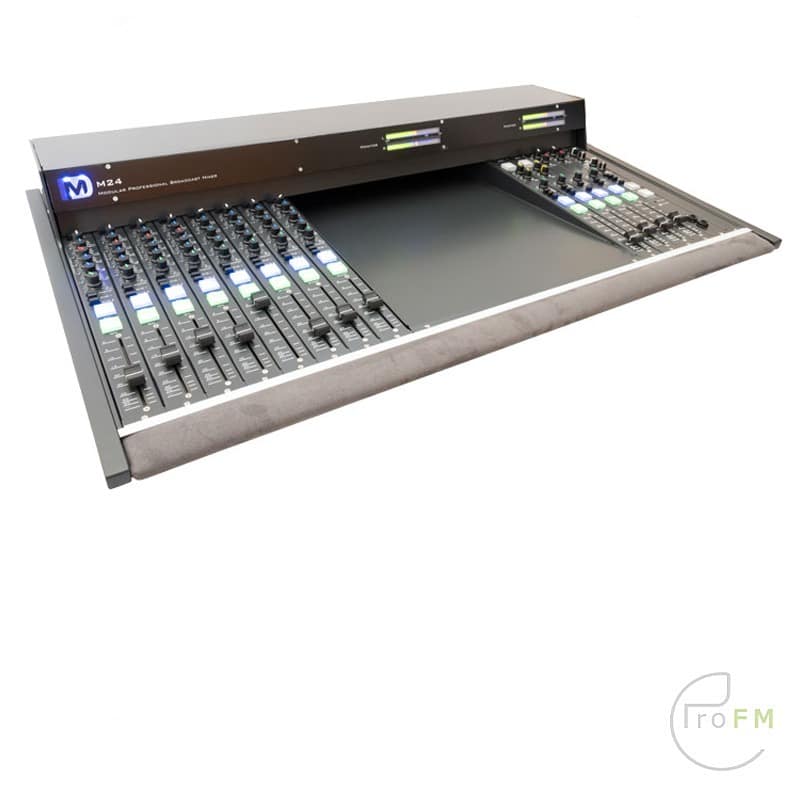

M M16/M24 broadcast console is a modular mixer designed  for radio and television stations that want maximum flexibility. Built with premium-quality components, it meets the needs of all radio and television stations. Thanks to its modularity, it may be configured according to customer requirements, 16/24 modules offer endless possibilities of configuration.

The master module offers 4 outputs, 3 of which allow balanced signal distribution without adding other devices. The AUX modules allow the management of outputs dedicated to recording or production without interfering with the broadcast.

The maintenance, thanks to the modularity, is very simple and ensures the initiation of wave even in the case of faulty modules, which can be hot-swapped.

The mixer can be configured with the following modules:

– MIC / LINE
– LINE / LINE
– TELCO
– TELEPHONE HIBRYD

Each module has balanced inputs, EQ, gain and balance. High-precision LED meters allow optimum control of output levels and cueing.

Module Overview:

MASTER:

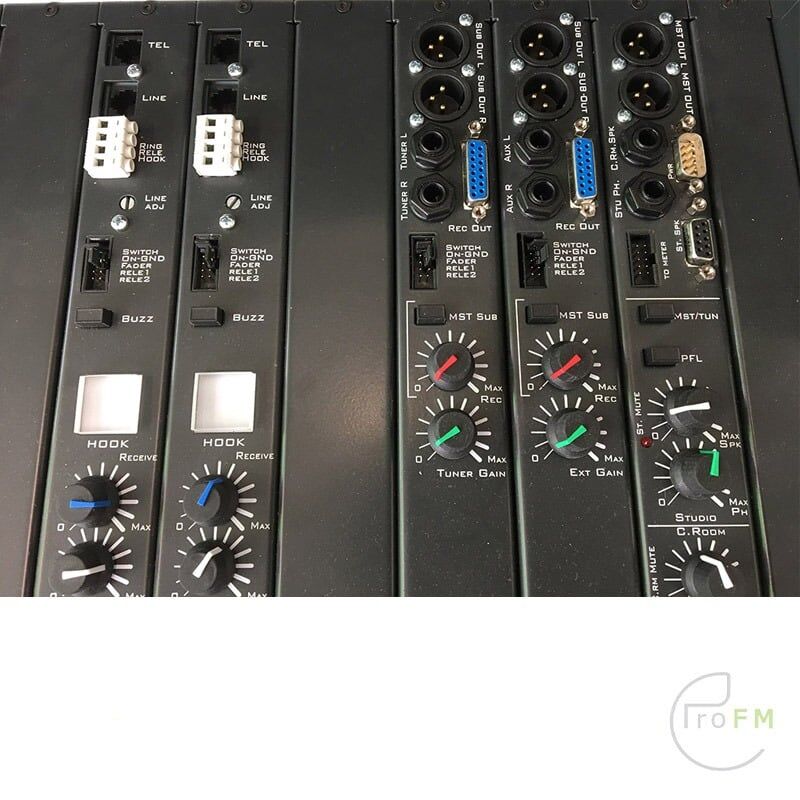

Balanced outputs on XLR, 2 headphones OUT, Tuner / Sat / Ext In, Camera SPK  and HP OUT, AUX1 / AUX2 / output REC

MIC / LINE:

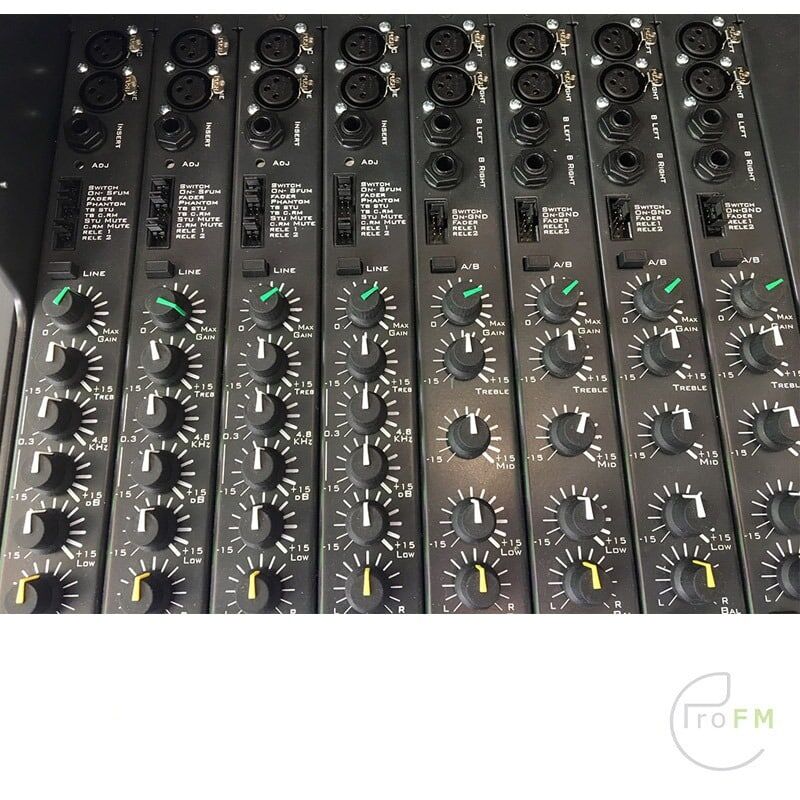

Balanced inputs on XLR, insert in for microphone processors, parametric tone control, ability to assign the channel to PGM-AUX1-AUX2-REC outputs, Fader Start, management of signal lights, management of control room and control studio.

LINE / LINE:
Balanced inputs on XLR, tone control (high / medium / low), ability to assign the channel to PGM-AUX1-AUX2-REC outputs, Fader Start, balanced IN 2 on Jack.

TELEPHONE HYBRID:
Telephone hybrid, INTEGRATED, high-quality audio with balanced  IN / OUT, SEND ADJ and the level of RECEPTION, private function with microphones master module, ability to assign the PGM-AUX1-AUX2-REC channel.

This Console has this configuration:

Professional Modular Broadcast mixer FRAME 16-12 Channel,
4 Micro/Line input modules with equalization,
4 Line/Line input modules with equalization,
2 Telephone Hybrid with equalization & echo canc.
Talkback, Out: Master, 2 X SUB, REC, Monitor,
10U script unit.
EXTERNAL 1 RU POWER SUPPLY
