Description

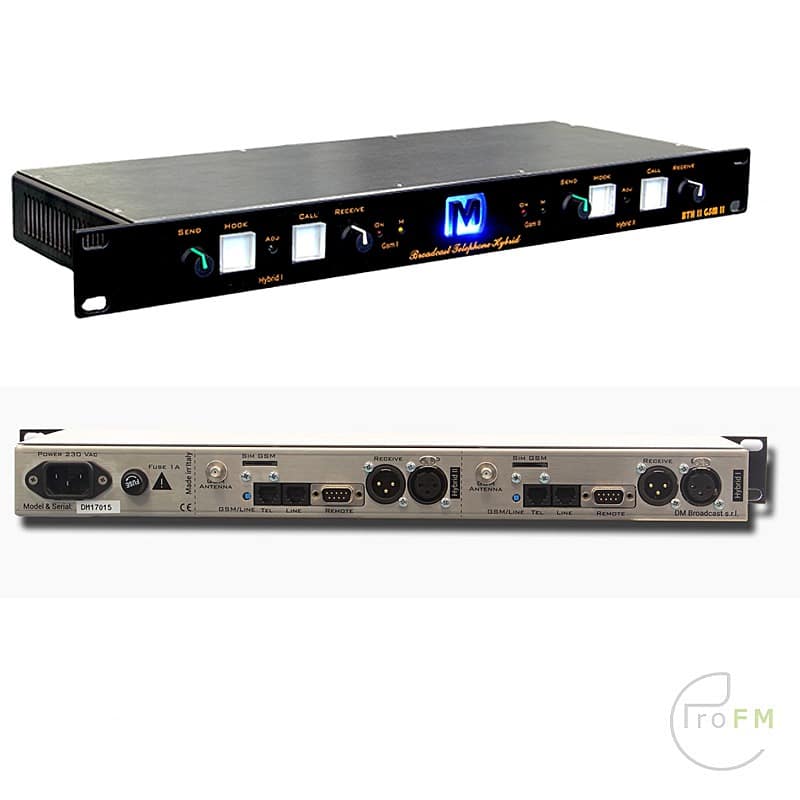

DM Broadcast BTH II GSM II Hybrid
Optimize your communications with the Telephone Hybrid, a powerful solution for using two telephone lines simultaneously. This advanced hybrid is equipped with two internal hybrids, allowing you to switch between different calls effortlessly. Whether you use external telephone lines or GSM networks, the Phone Hybrid guarantees seamless connectivity.
With the GSM version of the Telephone Hybrid, we offer a user-friendly solution. Make sure you are using SIM cards without a PIN code and that the GSM/LINE button on the back of the device is enabled for optimal performance.
Always stay informed about the status of your communications with the handy LED indicators on the front of the device. These indicators clearly show the status of the GSM module and the coverage of your SIM cards, allowing you to continue communicating with confidence.
With the Phone Hybrid you also have complete control over the signal level of your telephone calls. Simply adjust the potentiometers on the front of the device to set the signal level to your liking.
Choose the Telephone Hybrid and optimize your communications for maximum efficiency and reliability.
General
Power Supply :110 V/230 V -> (+/-) 12 V,
Dimensions: 480x160x45 mm
Weight: 2,20 kg net excl packing
Telephone Line Impedance: Nominally 600 Ohm
SEND
Impedance: 10 kOhm
Maximum input level:(+)24dBu
Nominal input level: (+)4dBu
Frequency Response: 20Hz – 15kHz
Connector:XLR 3 pin Female
RECEIVE
Impedance: 10 kOhm
Maximum output level: (+)24dBu
Nominal output level: (+)4dBu
Frequency Response: 20Hz – 15kHz
Connector: XLR 3 pin Male
