Description

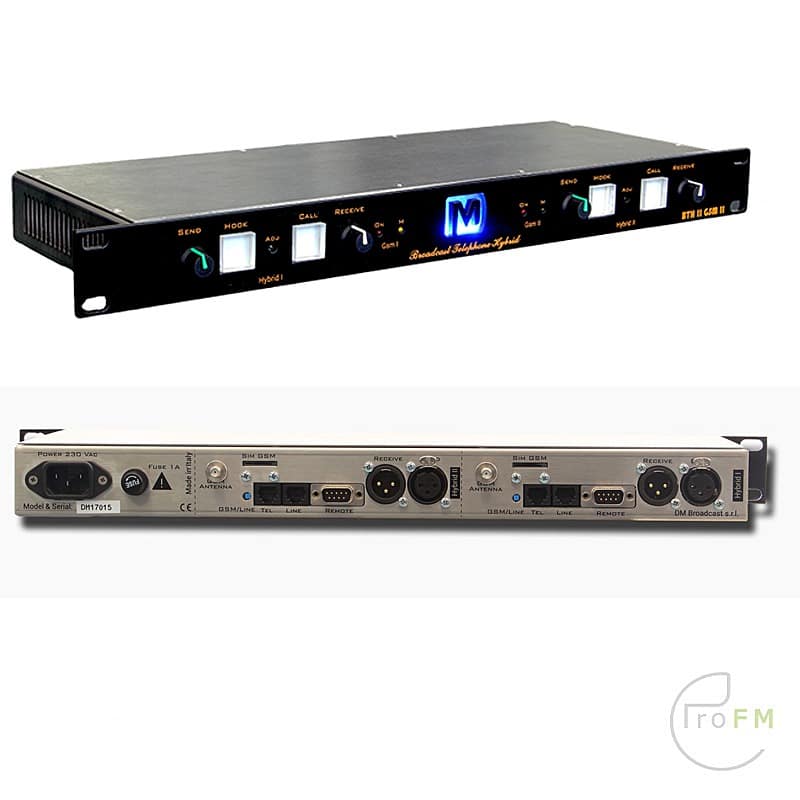

DM Broadcast BTH I GSM I Hybrid
Discover the versatile possibilities of DM Broadcast BTH | Mobile | Hybrid. With its functional features, this telephone hybrid provides a powerful communication experience for professional broadcast user.
The DM Broadcast BTH | Mobile | Hybrid is designed with two internal hybrids, making it possible to use two telephone lines simultaneously. This versatility allows users to work with both external telephone lines and GSM. Please note: the GSM version requires SIM cards without a PIN code, and ensure that the GSM/LINE button on the back of the device is open for use.
Two LEDs (exclusive to the GSM version) are placed on the front of the device, allowing users to check the status of the GSM module and SIM card coverage. Additionally, the device offers the flexibility to fine-tune the signal level of phone calls using the front potentiometers.
With DM Broadcast BTH | Mobile | With hybrid you are assured of reliable communication, wherever you are. Discover the possibilities of this innovative telephone hybrid today.
General
Power Supply :110 V/230 V -> (+/-) 12 V,
Dimensions: 480x160x45 mm
Weight: 2,20 kg net excl packing
Telephone Line Impedance: Nominally 600 Ohm
SEND
Impedance: 10 kOhm
Maximum input level:(+)24dBu
Nominal input level: (+)4dBu
Frequency Response: 20Hz – 15kHz
Connector:XLR 3 pin Female
RECEIVE
Impedance: 10 kOhm
Maximum output level: (+)24dBu
Nominal output level: (+)4dBu
Frequency Response: 20Hz – 15kHz
Connector: XLR 3 pin Male
- Description
-
DM Broadcast BTH I GSM I Hybrid
Discover the versatile possibilities of DM Broadcast BTH | Mobile | Hybrid. With its functional features, this telephone hybrid provides a powerful communication experience for professional broadcast user.
The DM Broadcast BTH | Mobile | Hybrid is designed with two internal hybrids, making it possible to use two telephone lines simultaneously. This versatility allows users to work with both external telephone lines and GSM. Please note: the GSM version requires SIM cards without a PIN code, and ensure that the GSM/LINE button on the back of the device is open for use.
Two LEDs (exclusive to the GSM version) are placed on the front of the device, allowing users to check the status of the GSM module and SIM card coverage. Additionally, the device offers the flexibility to fine-tune the signal level of phone calls using the front potentiometers.
With DM Broadcast BTH | Mobile | With hybrid you are assured of reliable communication, wherever you are. Discover the possibilities of this innovative telephone hybrid today.
- Specifications
-
General
Power Supply :110 V/230 V -> (+/-) 12 V,
Dimensions: 480x160x45 mm
Weight: 2,20 kg net excl packing
Telephone Line Impedance: Nominally 600 OhmSEND
Impedance: 10 kOhm
Maximum input level:(+)24dBu
Nominal input level: (+)4dBu
Frequency Response: 20Hz – 15kHz
Connector:XLR 3 pin FemaleRECEIVE
Impedance: 10 kOhm
Maximum output level: (+)24dBu
Nominal output level: (+)4dBu
Frequency Response: 20Hz – 15kHz
Connector: XLR 3 pin Male
