Description

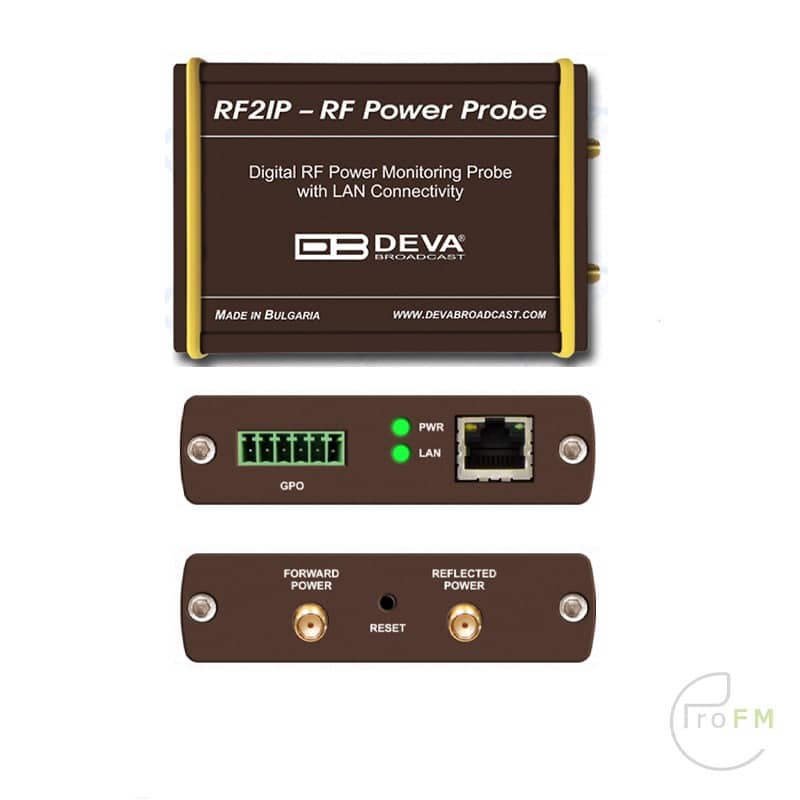

Deva RF2IP-RF Power Monitoring Probe

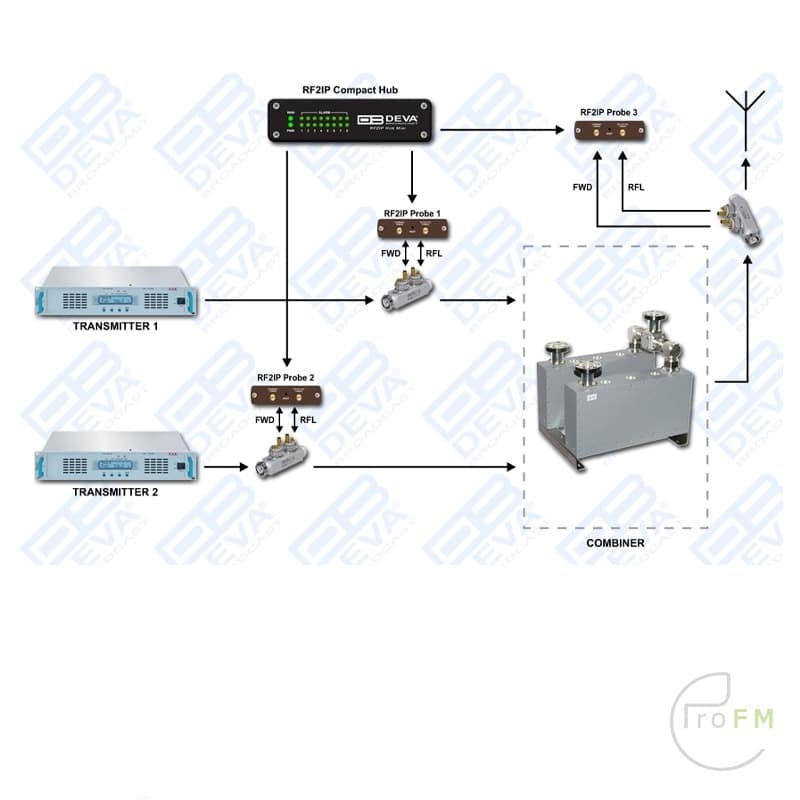

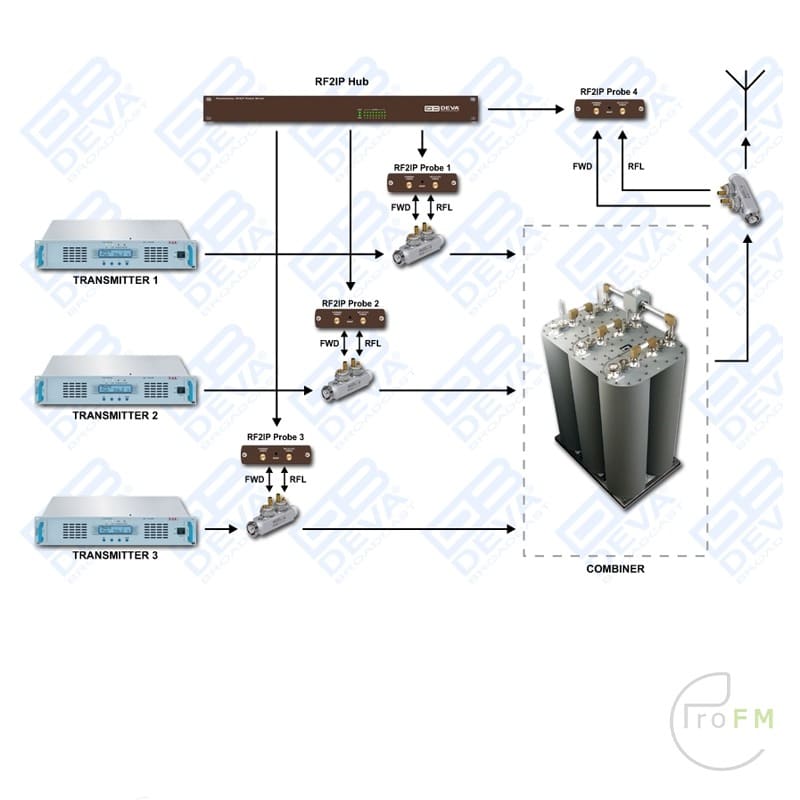

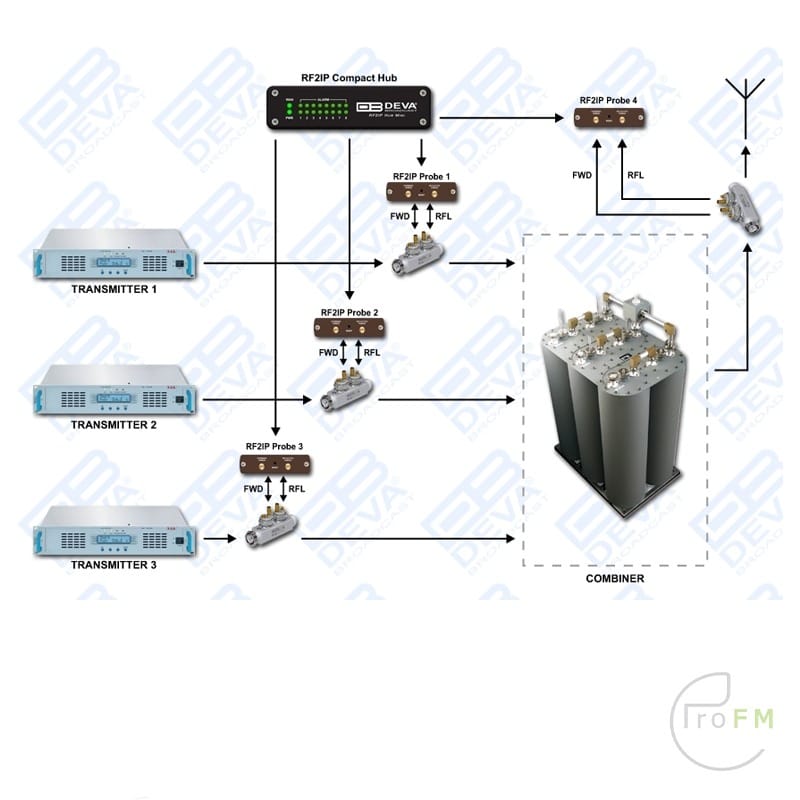

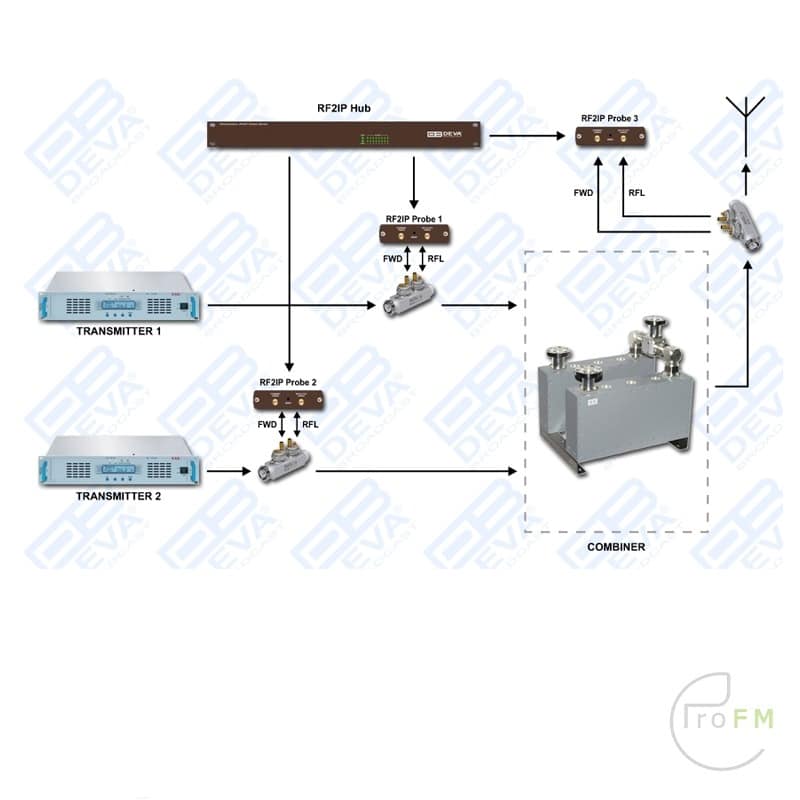

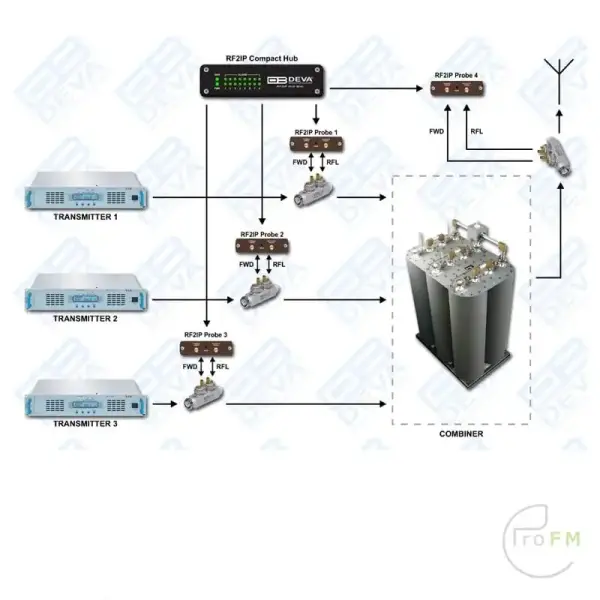

The RF2IP Digital Power Probe is the most cost effective solution on the market for easy monitoring of Forward and Reflected RF Power in a typical directional coupler and combiners installation.
The very high measurement precision and a dynamic range of more than 50dB make this probe the best choice for remote transmission systems measurements. It has been developed for a precise measurement of analog and True Average power for digitally modulated signals.
Top product performance is achieved thanks to the LAN port for full TCP/IP remote control and monitoring, advanced SNMP Ver.2C management and the extremely intuitive embedded WEB server for interactive supervision. It is powered through the LAN cable via PoE (Power over Ethernet) and all calibrations and additional adjustments are performed remotely.
The RF2IP Digital Power Probe comes with easy and flexible real-time monitoring and many other additional features, such as the Factory Parameters Restore option, FTP Server for downloading the measurements log, SNTP for automatic synchronization of the built-in clock, as well as date and time settings in various formats. It supports a variety of transmitter configurations and offers adjustable alarm thresholds for all important parameters. Alarms can be dispatched via E-mail, SNMP Ver.2C and Opticaly isolated GPO.
Combined with a compact and robust aluminum case, this powerful product delivers dependable round-the-clock operation with guaranteed quality. RF2IP Digital RF Power Probe is an SNMP V.2 enabled telemetry tool all in a class of its own.
Features
- Dual RF Power ports with built-in precise power sensors
- Adjustable MIN/MAX alarms for FWD Power, RFL Power and VSWR
- Adjustable MIN/MAX alarms for Return-Loss and Crest Factor
- IP-based broadcast control for exceptional scalability
- LAN port for full TCP/IP remote control and monitoring
- Very Intuitive Embedded WEB server for interactive supervision
- Advanced monitoring and full control by SNMP Ver.2C
- Alarm dispatch via E-mail, SNMP and GPO
- Fully DSP based core for a detailed signal analisis
- Attractive price and very good price-performance ratio
- Proved and reliable hardware for 24/7/365 operating
- SNTP for automatic synchronization of the built-in clock
- Compact and Robust Aluminum Case for high RF immunity
- Easy Installation and Setup
- Alarm dispatch via E-mail, SNMP and GPO
- Fully DSP based core for a detailed signal analisis
- Attractive price and very good price-performance ratio
- Proved and reliable hardware for 24/7/365 operating
- SNTP for automatic synchronization of the built-in clock
- Compact and Robust Aluminum Case for high RF immunity
- Easy Installation and Setup
| User Interface | |
| WEB interface | Full monitoring and control; Interactive and easy to use |
| Indicators | 2 LEDs |
| Communication Interfaces | |
| Ethernet | 10/100 Base-T; RJ45 connector |
| Protocols | HTTP, SNMP, SMTP, DHCP |
| Network | |
| Connector | RJ-45 |
| Type | Ethernet |
| Device discovery | UPnP support |
| Other | |
| GPO | 3 outputs, Open Collector type |
| Measurement Storage | |
| Storage | in Memory |
| Metering Accuracy | |
| RF Level | ±2% |
| FWD Power Input | |
| Connector | SMA on rear panel |
| Impedance | 50 Ω |
| Frequency Range | VHF Model 50 – 250MHz; UHF Model 470 – 860MHz |
| Sensitivity | -50dBm to +10dBm |
| Readings units | dBm, W |
| Reflected Power Input | |
| Connector | SMA on rear panel |
| Impedance | 50 Ω |
| Frequency Range | VHF Model 50 – 250MHz; UHF Model 470 – 860MHz |
| Sensitivity | -50dBm to +10dBm |
| Readings units | dBm, W |
| Operating conditions | |
| Equipment operational between | -10° and 50°C |
| Humidity | <75%, non-condensing |
| EMC immunity | 6V/m |
| Power Requirement | |
| Power supply | 48V/0.3A PoE via PoE Switch or via PoE power injector (Not Included) |
| Power consumption | 10W |
| Connector | RJ45/LAN |
| Size and Weight | |
| Dimensions (W;H;D) | 86 x 25 x 125 mm |
| Shipping Weight | 230 x 70 x 172 mm / 0.533 kg |
| HS Code | 8527212000 |
