Description

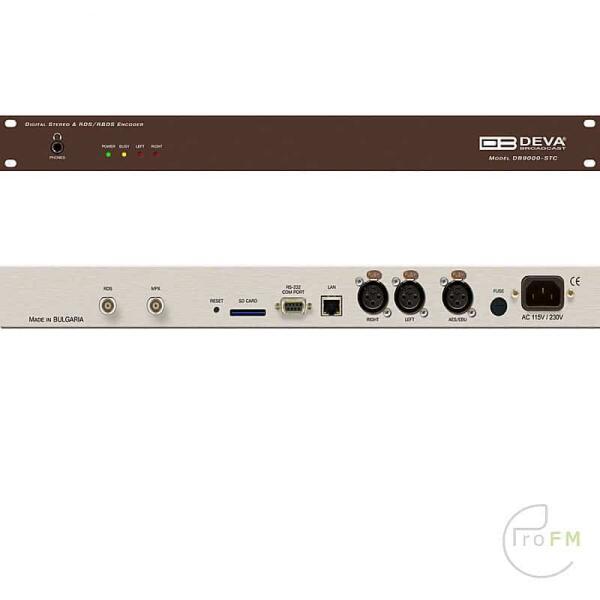

Deva Broadcast DB9000-STC – DSP Stereo RDS/RBDS Encoder
DB9000-STC is a high-performance, 32bits DSP based Stereo Generator with built-in RDS/RBDS encoder. It has been accurately designed to satisfy the most demanding requirements in FM Stereo generation and advanced RDS/RBDS encoding. This Stereo Encoder accept both of types, Analog and Digital AES/EBU audio sources.
DB9000-STC comes with easy to use and password protected Web Server and a comprehensive remote control features. It supports SNMP, RS232, UDP, TCP/IP communication protocols. Its digital architecture guarantees long term reliability and easy firmware updates, directly on field or from remote.
The built-in RDS encoder can ‘parse’ scrolling text, automatically breaking phrases into word groups. It gives dynamic, on-the-fly programming access with its built-in USB, TCP/IP, UDP/IP interfaces. This connectivity permits full integration of RDS/RBDS transmissions with the stations other networked functions, including message streams for digital radio and Webcasting. It can be easily interfaced to various Automation Systems and offers an ASCII protocol for broadcast song/artist information.
Another great feature of the DB9000-STC is that it can fight the dreaded dead air problem. The DB9000-STC provides additional uncompromising security in case of loss of audio at the audio inputs. The audio backup is presented as an integrated built-in MP3 audio player. The basic principle of operation is that this unit can detect the silence and switch the output to the alternative MP3 Player. The MP3 backup audio files and play lists can be uploaded in the device from your PC using any FTP client. The audio storage capacity of DB9000-STC is 2 Giga Bytes.
Based on the latest DSP technology, the DB9000-STC is fully digital design for 24/7/365 operation. This product is the most cost effective, versatile and reliable solution designed for the broadcasters looking for a complete solution for a single, or a multiple transmitter sites.
Features
- Fully Digital 32 bits DSP Stereo Encoder
- Excellent Audio Performances
- Digital Volume Control of all Audio Inputs
- Adjustable Pilot, L-R, RDS phases
- Selectable pre-emphasis 0, 50s, 75s
- Digitally adjustable Pilot & RDS injection levels
- Fully Digital Synthesis of the RDS Signal
- Intelligent Silence Detector and Backup Audio Player
- Configuration and Monitoring via SNMP Ver.2C & WEB
- Alert Notifications via E-mail, SNMP in case of Audio Loss
- Lots of Storage for over 24 hours of non-repeating audio playback
- Always Fresh Backup Audio Tracks with Embedded FTP server
- Professional Balanced Stereo Analog Input on XLR connectors
- Professional Digital AES/EBU Audio input on XLR connectors
- Headphones Jack for local monitoring of the Audio Signal
- Built-in MP3 Player with built in 2GB SD Card
- UPnP for easy discovery in Local Networks
- Professional 19 inches, 1U Professional rack mount chassis
- Remote Firmware Upgrade for future-proof operation
- Protected access to the device settings
- Easy installation and operation
- 2 Years Warranty
| Analog audio input | |
| Connector | 2 x XLR, Stereo |
| Type | Balanced |
| Impedance | 600Ω or High Impedance |
| Level | 6dBu / 12dBu, user selectable |
| Sample rate | 96 kHz; Build-in sample rate converter used to produce lower sample rates |
| Dynamic range | >100dB |
| Digital audio input | |
| Connector | XLR |
| Type | AES/EBU (IEC 60958) |
| Resampling | Thru build-in sample rate converter |
| Audio backup | |
| Trigger | Audio Silence |
| Threshold | Adjustable, -90dBFs to 0dBFs |
| Trigger time | Adjustable, 5s to 240s |
| Storage | SD Card, up to 2GB |
| Supported file types | *.MP3, *.AAC, *.M4A, *.M3U |
| Playback modes | Alphabetical ascending and descending, Shuffle, Playlist and Shuffled playlist |
| Remote file management | Build-in FTP Server |
| Stereo Encoder | |
| Type | Fully DSP Stereo Encoding |
| Pre-emphasis | 0, 50, 75µs |
| AGC | 5 presets, 2 user defined |
| Equalizer | 3-Band, ±12dB range |
| Stereo separation | >55dB (typically >60dB) |
| Phase Adjust | Pilot, L-R, RDS |
| Injection Levels Adjust | Pilot, RDS |
| Output Connector | BNC, Unbalanced |
| Output Level Adjust | Digitally, up to 0dBu |
| Composite MPX Limiter | 6 presets, 3 user defined |
| RDS Encoder | |
| Supported RDS Applications | PI, PS, Dynamic PS AF, RT, TP, TA, DI, M/S, PIN, PTY, PTYN |
| Configuration | Web Interface |
| Automation control | Remote TCP console |
| Output Connector | BNC, Unbalanced |
| Output Level Adjust | Digitally, up to -6dBu |
| Phones Audio Output | |
| Connector | 1/4″ (6.3mm) Phone Jack, Stereo |
| Type | Headphones |
| User Interface | |
| Indicators | 4 LEDs on front panel, 2 LEDs on rear panel |
| Web interface | Full control and status information |
| RS-232 | |
| Type | TCP/IP to RS-232 Redirector |
| Connector | DB-9, female |
| Baud rates | 9600 to 115200 |
| Password protection | Yes |
| Network | |
| Connector | RJ-45 |
| Type | Ethernet |
| Size and Weight | |
| Dimensions (W;H;D) | 483 x 45 x 180 mm |
| Shipping Weight | 540 x 160 x 300 mm / 2.7kg |
