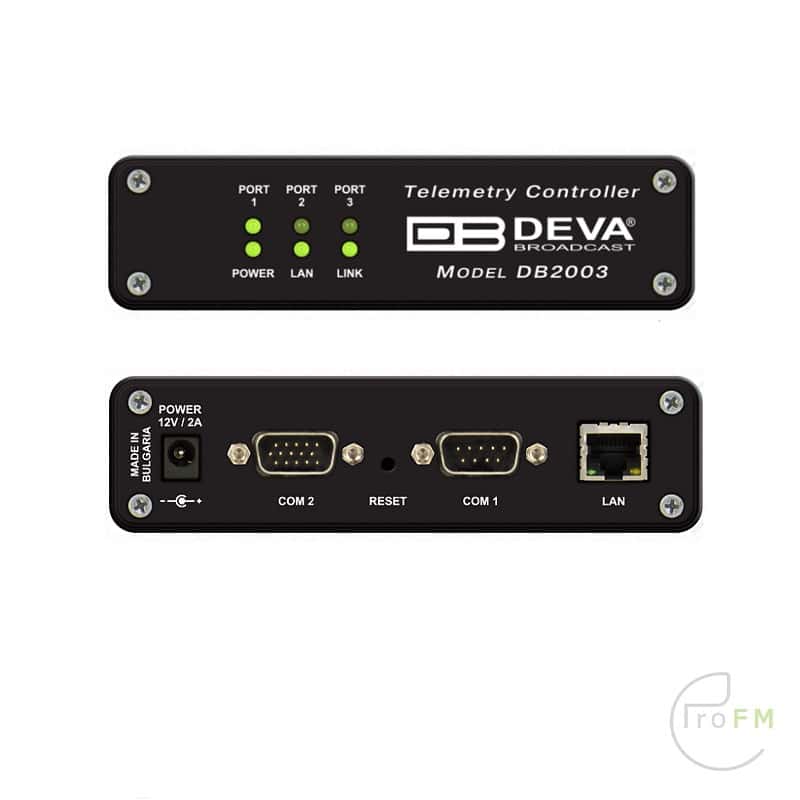

Name: Deva DB2003 Remote Control for RVR FM Radio Transmitters
Brand: Deva Broadcast
SKU: 912
Availability: InStock

Description

Description
Specifications

Deva DB2003 Remote Control for RVR FM Radio Transmitters

The most advanced remote control tool on the market!

DB2003 is an SNMP V.2 telemetry tool all in a class of its own. Developed to provide users with easy and flexible real-time monitoring and remote control options for RVR FM Radio Transmitters, this product brings efficiency and reliability coupled with a compact and practical design. It supports a variety of transmitter configurations and offers adjustable alarm thresholds for all important parameters. Alarms can be dispatched via email, SMS and SNMP.

What makes this product especially easy to use is the extremely intuitive embedded WEB server for interactive supervision. Status report via SMS is also available with the optional GSM Modem. DB2003 also provides a number of great additional features, such as the Factory Parameters Restore option, SNTP for automatic synchronization of the built-in clock, as well as date and time settings in various formats.

Features:

• IP-based broadcast control for exceptional scalability
• LAN port for full TCP/IP remote control and monitoring
• Very Intuitive Embedded WEB server for interactive supervision
• Advanced monitoring and full control by SNMP Ver.2C
• Adjustable alarms thresholds for all important parameters
• Firmware update for future-proof operation
• Parameters Factory Restore Option
• Alarm dispatch via E-mail, SMS, SNMP
• Proved and reliable hardware for 24/7/365 operating
• Status reporting via SMS with optional GSM Modem
• Attractive price and very good price-performance ratio
• SNTP for automatic synchronization of the built-in clock
• Date & Time Settings with various formats
• Compact and Robust Aluminum Case for high RF immunity
• Easy Installation and Setup

User Interface
WEB interface Full monitoring and control; Interactive and easy to use
Indicators 6 LEDs on front panel

Communication Interfaces
Ethernet 10/100 Base-T RJ45 connector
RS232 2 interfaces
RS485 1 interface
I²C 1 bus
Protocols HTTP, SNMP, SMTP, FTP, DHCP

Measurement Storage
Storage 16GB Build-in Memory Card
Data format Text, CSV

Other
GPO 3 outputs, Open Collector type
GSM modem support generic external GSM modem to send SMS as alarm notification
Operating conditions
Temperature 10° to 60°C
EMC Immunity 6V/m

Power
Voltage External, 12V/1A
Power consumption 12VA
Connector Power Jack 5.5mm

Size and Weight
Dimensions (W,H,D) 125 x 31 x 160 mm
Shipping Weight 270 x 54 x 230 mm / 1.1kg
HS Code 8527212000

Description: Deva DB2003 Remote Control for RVR FM Radio Transmitters

The most advanced remote control tool on the market!

DB2003 is an SNMP V.2 telemetry tool all in a class of its own. Developed to provide users with easy and flexible real-time monitoring and remote control options for RVR FM Radio Transmitters, this product brings efficiency and reliability coupled with a compact and practical design. It supports a variety of transmitter configurations and offers adjustable alarm thresholds for all important parameters. Alarms can be dispatched via email, SMS and SNMP.

What makes this product especially easy to use is the extremely intuitive embedded WEB server for interactive supervision. Status report via SMS is also available with the optional GSM Modem. DB2003 also provides a number of great additional features, such as the Factory Parameters Restore option, SNTP for automatic synchronization of the built-in clock, as well as date and time settings in various formats.

Features:

• IP-based broadcast control for exceptional scalability
• LAN port for full TCP/IP remote control and monitoring
• Very Intuitive Embedded WEB server for interactive supervision
• Advanced monitoring and full control by SNMP Ver.2C
• Adjustable alarms thresholds for all important parameters
• Firmware update for future-proof operation
• Parameters Factory Restore Option
• Alarm dispatch via E-mail, SMS, SNMP
• Proved and reliable hardware for 24/7/365 operating
• Status reporting via SMS with optional GSM Modem
• Attractive price and very good price-performance ratio
• SNTP for automatic synchronization of the built-in clock
• Date & Time Settings with various formats
• Compact and Robust Aluminum Case for high RF immunity
• Easy Installation and Setup
Specifications: User Interface
WEB interface Full monitoring and control; Interactive and easy to use
Indicators 6 LEDs on front panel

Communication Interfaces
Ethernet 10/100 Base-T RJ45 connector
RS232 2 interfaces
RS485 1 interface
I²C 1 bus
Protocols HTTP, SNMP, SMTP, FTP, DHCP

Measurement Storage
Storage 16GB Build-in Memory Card
Data format Text, CSV

Other
GPO 3 outputs, Open Collector type
GSM modem support generic external GSM modem to send SMS as alarm notification
Operating conditions
Temperature 10° to 60°C
EMC Immunity 6V/m

Power
Voltage External, 12V/1A
Power consumption 12VA
Connector Power Jack 5.5mm

Size and Weight
Dimensions (W,H,D) 125 x 31 x 160 mm
Shipping Weight 270 x 54 x 230 mm / 1.1kg
HS Code 8527212000
