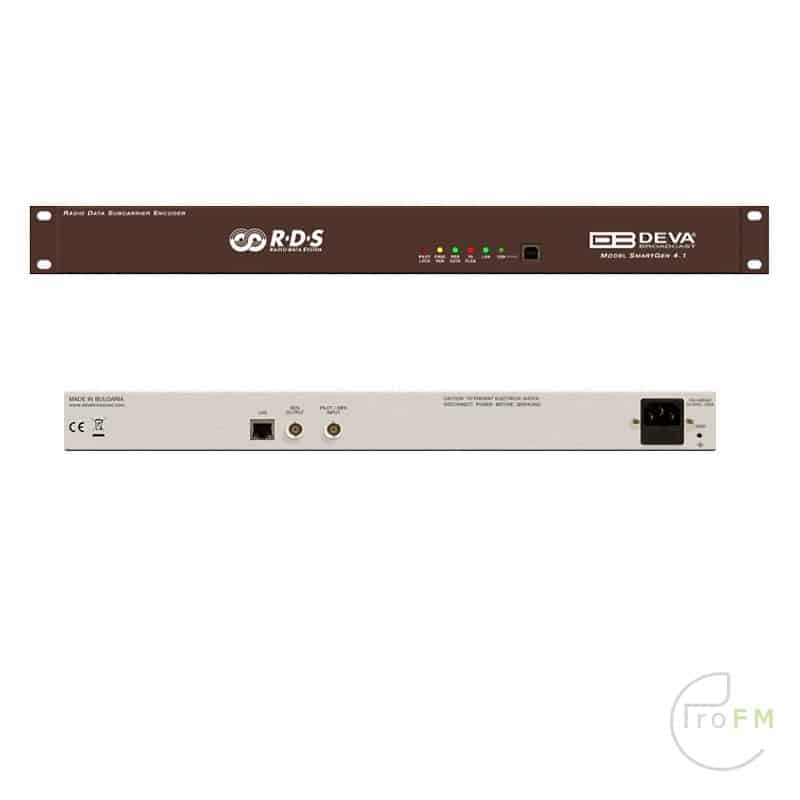

Deva Broadcast SmartGen 4.1 – UECP Compatible RDS/RBDS Encoder with LAN & USB Connectivity
The Deva SmartGen 4.1 is a full-function RDS/RBDS encoder that supports both of European CENELEC and United States NRSC standards. It supports all service IDs and offers simultaneous scrolling-PS and RadioText messaging.
SmartGen 4.1 is fully compatible with the latest UECP EBU SPB490 Version 7.05. The interactive function RT for song tagging is fully supported without a compromise. Based on the latest RDS technology, the SmartGen 4.1 is fully digital design for 24/7/365 operation. The SmartGen 4.1 is the most cost effective solution for sending TMC and EWS Services.
SmartGen 4.1 gives dynamic, on-the-fly programming access with its built-in USB, TCP/IP, UDP/IP interfaces. This connectivity permits full integration of RDS/RBDS transmissions with the stations other networked functions, including message streams for digital radio and Webcasting. The SmartGen 4.1 encoder provides a full loopthrough interface for connection to your existing broadcast chain. The SmartGen 4.1 can ‘parse’ scrolling text, automatically breaking phrases into word groups.
PROGRAMMING SOFTWARE:
Based on our more than 15 years experience in the RDS field, we developed the SmartGen RDS/RBDS Encoders Manager as dedicated software for full management of our high end RDS Encoders range in regards with the latest updates of the UECP EBU SPB490 Version 7.05.
Features:
- Supports European CENELEC and United States NRSC standards
- Attractive price and very good price-performance ratio
- Supports RT for songs and content tagging
- PS & Radio Text Scrolling Options
- Supports TMC (Traffic Message Channel)
- Compatible with EWS (Emergency Warning System)
- Embedded WEB server for interactive supervision
- Fully Digital Synthesis of RDS signal
- Fully compatible with UECP EBU SPB490 Version 7.05
- MPX Loopthrough & Sidechain Modes
- Internal or external Pilot / MPX synchronisation
- Very Intuitive UECP Configuration Software
- Remote RDS viewer to visualize broadcasted data
- Proved and reliable hardware for 24/7/365 operating
- Easy Installation and Setup
- LAN & USB Programming Interfaces
- Remote configuration via ASCII or UECP through LAN or USB
- Interfaces with all popular radio automation systems
- Built-in dedicated 19kHz source for internal sync
- Built-in failsafe bypass relay
- Includes the TA function for traffic message priority override
- Works with any FM exciter and stereo generator
- SNTP for automatic synchronization of the built-in clock
- Internal data diagnostics and transmission safeguards
- Real time clock Schedules for Scrolling Text and text lists
- 19″” Professional Case for high RF immunity
| Technical Specifications | |
| Power Supply | Internal 100 – 240V; 50 – 60Hz |
| Pilot/MPX Input | Yes |
| MPX/RDS Output | 0 to 4095 mV |
| Inputs/Outputs | No |
| Communication Port | USB, LAN |
| Synchronization | External (Pilot or MPX) / Internal / Auto |
| Synchronization Monitoring | Yes |
| RDS Level adjustment | Digitally controlled |
| Phase adjustment | Yes, 0 ÷ 359.9° |
| Separate outputs for RDS MPX and for RDS only | No |
| Command to activate the RDS SCA | Yes |
| Side Chain Mode, Loop through mode, Bypass feature | Yes |
| RDS Subcarrier | 100% Digitally Generated Shape / Bypass: 0 dB |
| Pilot synchronization | Input Level: -50dBu to 12dBu / Frequency: 19kHz, ±3Hz |
| EN50067 compliant | Yes |
| Accurate Clock Time (CT) Sync with Internet Connection | Yes |
| Remote TA actuation for Traffic Announcements | Yes |
| GPS module for automatic synchronization of the built-in clock | No |
| Fully independent RDS decoder for self-monitoring purposes | No |
| Firmware can be upgraded in the field | Yes |
| Front-panel LCD displays all programmed data | No |
| Data may be entered on-site with Front-panel Buttons | No |
| Operating Temperature | 0°C ÷ 55°C |
| RDS Features | |
| Group supported | All |
| Group Sequence | Configurable |
| PS | 4 DSN x 4 PSN |
| PI | 4 DSN x 4 PSN |
| PTY | RDS/RBDS |
| AF Method A | 25 |
| AF Method B | up to 50 |
| RT | Yes, 5 messages |
| RT rate adjustment | Group Sequence |
| RT for songs and content tagging | Yes |
| TP | Yes |
| TA Control | Command, Software |
| PTYN | Yes |
| EON | 4 PSN |
| CT | Yes |
| TMC, EWS, IH, TDC | Yes |
| Free Format Groups (FFG) | Yes |
| Open Data Application (ODA) | Yes |
| 64-character Dynamic PS shown on all RDS/RBDS Radios | Yes |
| Auto “parses” long messages for best text display | Yes |
| Scrolling by character | from 1 up to 8 |
| Scrolling by word, Auto centering, Truncate long words | Yes |
| Communication | |
| Communication Interfaces | USB, LAN |
| Connection with Automation Software | Yes |
| Network Connectivity | 2 TCP ports; 2 UDP ports |
| Scheduler | Yes |
| Configuration | Embeded Web Server, SmartGen Manager |
| Password Protection | Yes |
| ASCII Protocol | Yes |
| UDP, TCP, HTTP, SNTP | Yes |
| Alert notifications on user-defined events via SNMP traps or E-mails | No |
| Embedded SNMP agent permitting active management tasks | No |
| Custom HTML formatted E-mail templates with dynamic variables | No |
| Supported Network Protocols: | HTTP, SNTP, UDP, TCP, UPnP |
| UECP Protocol | Fully compliant with EBU SPB490 Ver.7.05 |
| PI <=> CALL Calculator | Yes |
| Remote Display | Yes |
| Supplied with Intuitive Software | Yes |
| Comes with 2-years Limited Warranty | Yes |
| Size and Weight | |
| Dimensions (W;H;D) | 485 x 44 x 180 mm |
| Shipping Weight | 540 x 115 x 300 mm / 2.1kg |
