Description
Deva Broadcast Radio Explorer – Mobile FM Radio Analyzer
Radio Explorer is a multifunctional, easy-to-use tool, designed for the FM to measure and store all important parameters in a log file. Like a stick mask measurement. You can set up to 50 pre-selected channels to monitor. When the measurements are done you can convert the log files into KMZ format and visualize the stored data in Google Earth. So you can “get a picture” of what’s really happening in the field, to outline the coverage of each station compared to competitors. Such functionality is irreplaceable when you need to analyze and tune your broadcast equipment and antenna. The log file can also be exported as a transition format for future analysis or for tracking purposes.

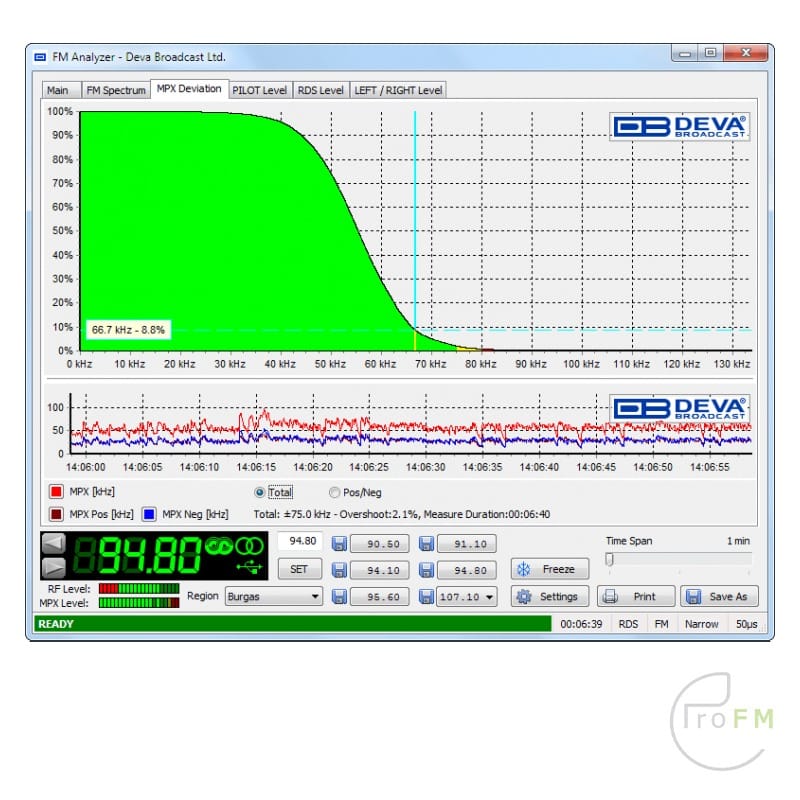

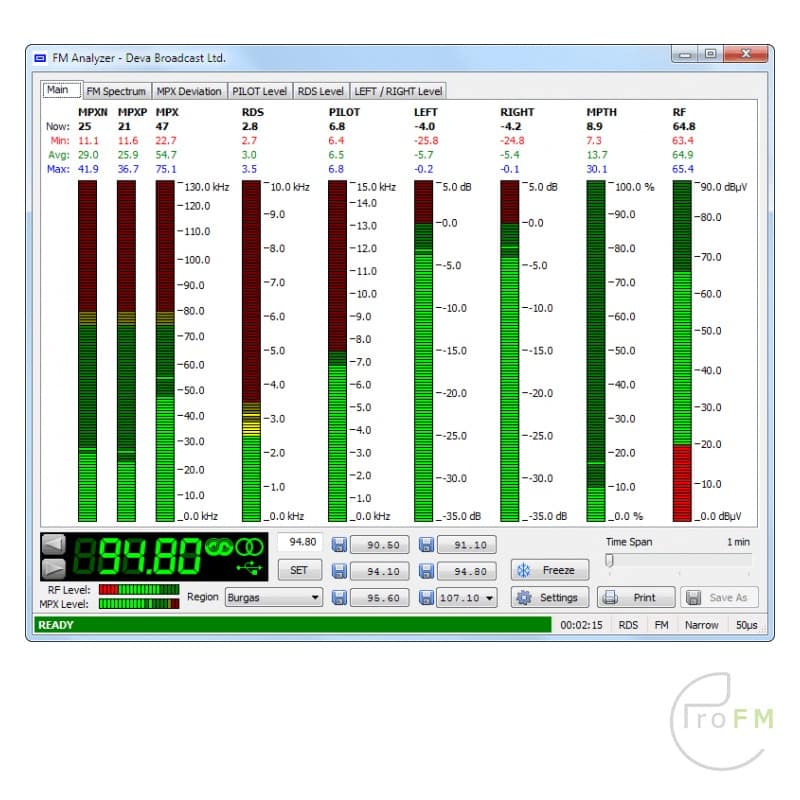

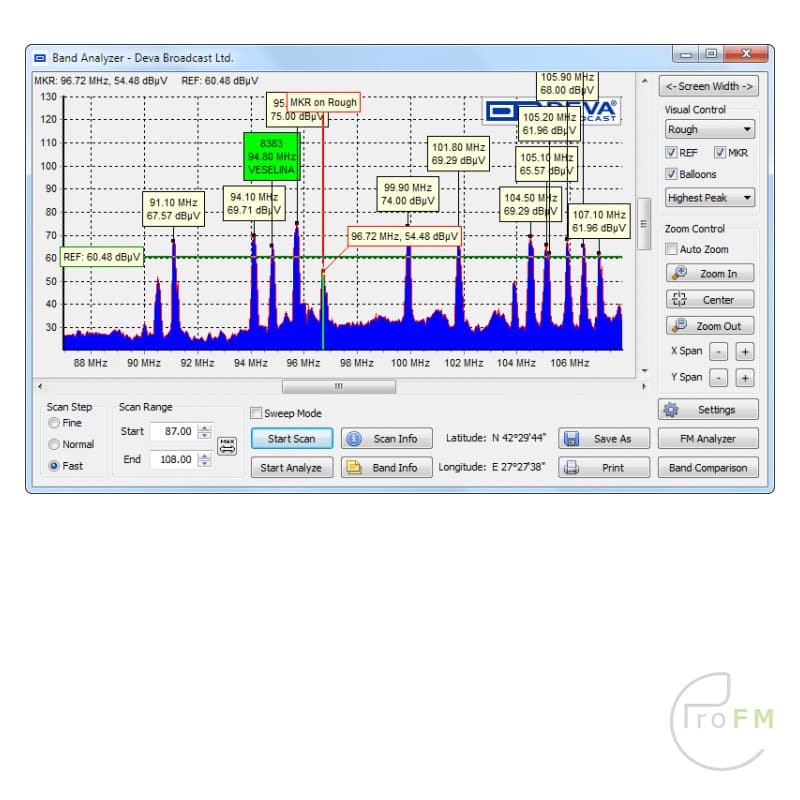

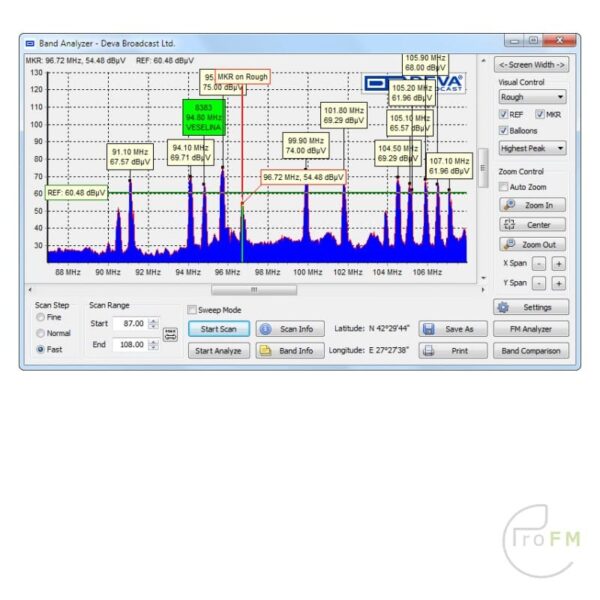

With a click on the button Radio Explorer becomes an excellent tool for analyzing and setup of whole broadcast equipment on the site. It can measure RF level, MPX deviation, Left & Right Audio levels, RDS and Pilot injection levels and display the measurements on large, easy to read LCD display. Easy switching between RDS/RBDS standards and measurement units makes Radio Explorer compatible for use by broadcast engineers from all around the world. For even better control and data representation connect the device to a usual Windows PC, via a USB port. You can choose between various bar-graphs, data plots, histograms and etc. A super-fast band scan mode is available and gives to you real-time live visualization of whole FM band or just small part of it with down to 5 kHz resolution. All of device or campaign settings you can do by using software or via very intuitive and sample user interface with 5 buttons and LCD screen.

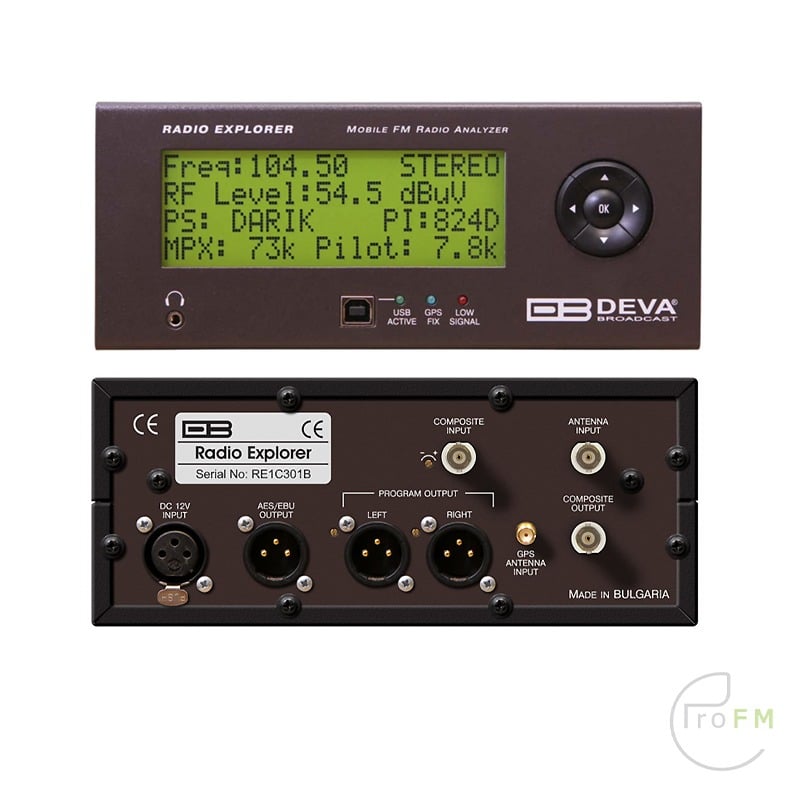

Radio Explorer incorporates a high quality FM front end with all MPX signal and RDS parameters data logger and high sensitive GPS receiver in reinforced steel box. Additional MPX input is available for monitoring as well as MPX output, left and right “”program output”” and AES/EBU digital audio output. Inputs are for FM and GPS antennas and for power supply. The program received can be monitored with headphones plugged into a standard 1/8″” jack with electronic volume control.
Features
- FM Band 87÷108 MHz Basic Spectrum Analyzer
- Selectable wide/narrow IF bandwidth
- MPX, PILOT & RDS deviation meters
- Built-in Stereo decoderStereo Presence Detection
- LEFT and RIGHT demodulated audio level meters
- Built-in 50-channels GPS Receiver
- Measurement results visualisation in Google Earth
- Accurate front-panel metering for local use
- Headphones audio output with volume control
- RDS and RBDS decoder
- FM/RDS/RBDS Data Logger
- RDS/RBDS Stream BER meter
- Metal Case for high RF immunity
- Full control and monitoring via USB connection
- RF and RDS Measurements (real time & average)
- Very Intuitive Application Interface
| Tuning Range | 87 to 108 MHz |
| Tuning Step | 50kHz (5 kHz in Band Scan Mode) |
| Tuner Sensitivity | 40 dBµV |
| Antenna Ports | BNC Connector, 50Ω |
| Antenna Ports Isolation | No |
| Internal Attenuator | No |
| Dynamic range | 0 to 90dBµV; 20 dBµV (-87 dBm) for monaural; 43.5 dBµV (-63.5 dBm) for stereo |
| FM Demod | |
| IF Filter Bandwindth | fixed 150 kHz |
| Frequency Response | ±0.5 dB, 10 Hz to 40 kHz |
| MPX Power | No |
| Dynamic range | > 80 dB |
| Stereo Decoder | |
| Frequency Response (L and R) | ±0.5 dB, 20 Hz to 15 kHz; follows selected de-emphasis curve |
| De-emphasis | 50 µs or 75 µs, Selectable |
| SNR (Stereo) | >50 dB, 50 µs de-emphasis |
| THD | <0.3%, 10 Hz to 15 kHz, 50 µs de-emphasis |
| Separation | > 35 dB |
| Crosstalk | > 40 dB |
| FFT Spectrum Analysis (RF, Composite, Audio) | |
| Signal Sources | No |
| FFT length | No |
| Dynamic range | No |
| Scope Analysis (RF, Composite, Audio) | |
| Signal Sources | No |
| Record length | No |
| Dynamic range | No |
| Metering Accuracy | |
| RF Level | ±3dB, 0 to 80dBµV |
| MPX Power | No |
| Total, Pos, Neg | ±3 kHz, 0 to 130 kHz, 0.1 kHz resolution |
| Pilot, RDS | ±0.5 kHz, 0 to 15kHz, 0.1 kHz resolution |
| Audio | ±2 dB, 3.0 to -35.0 dB, 0.1 dB resolution |
| Outputs | |
| Audio (L, R) | 15 dBm, 600Ω, XLR (on rear panel, adjustable) |
| AES3 (L, R) | 5.0 Vp-p, 110Ω, balanced XLR Connector |
| GPO | No |
| Headphone | 3,5mm (1/8″) Phone Jack |
| Communication Interfaces | |
| USB | B-type Connector |
| Ethernet 10/100 Base-T | No |
| RDS Decoder | |
| Standards | European RDS CENELEC; United States RBDS NRSC |
| Error Correction & Counting | Yes |
| AF Decoding | Yes |
| CT (Time/Date) | Yes |
| PI, PTY, DI, MS | Yes |
| TA/TP | Yes |
| RT (Radio Text), RT | Yes |
| PS (Program Service name) | Yes |
| TMC, ODA | Yes |
| Group Analyzer | Yes |
| BER Analyzer | Yes |
| Group Sequence Display | Yes |
| RDS RAW Data Display | Yes |
| GPS Receiver | |
| Number of channels | 50 |
| Antenna | Pre-amplified, 5m of cable, magnetic |
| Connector | SMA, rear panel |
| Measurement Storage | |
| Storage | 2GB Build-in Memory Card |
| Data format | proprietary binary files |
| Power Requirement | |
| Voltage | 12 DC (11-15V) / 2A max at 12V |
| Connector | XLR (on rear panel) |
| Size and Weight | |
| Dimensions (W;H;D) | 216 x 89 x 190 mm |
| Shipping Weight | 470 x 180 x 310 mm / 4.9kg |
