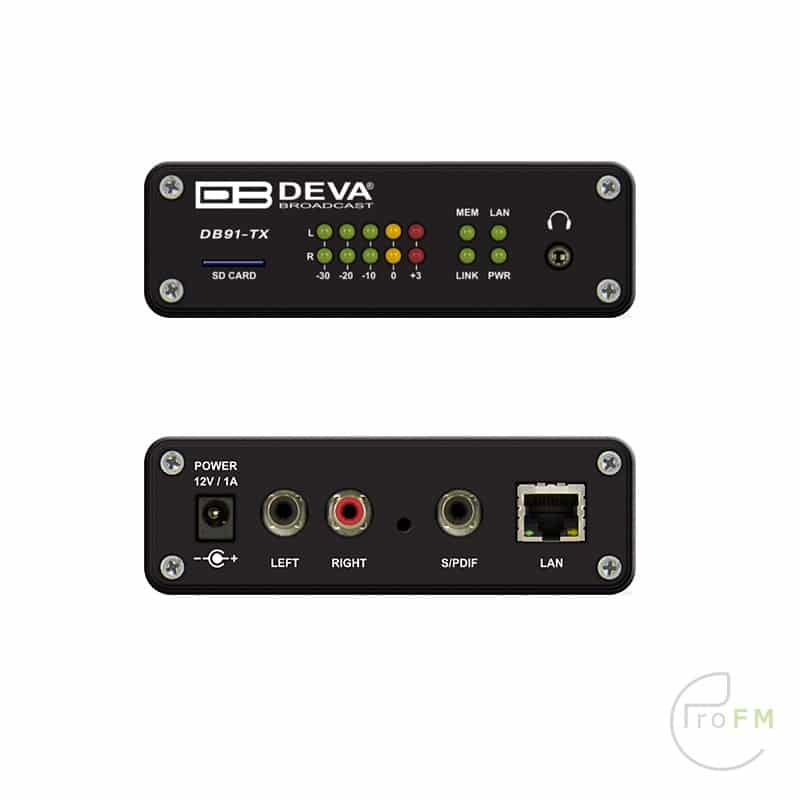

Name: Deva Broadcast DB91-TX IP Audio Encoder
Brand: Deva Broadcast
SKU: 615
Availability: InStock

Description

Description
Specifications
Video

Deva Broadcast DB90-TX Audio over IP Codec

Deva DB90-TX is an integrated audio converter that converts audio signal into a high quality compressed audio stream. The signal can be compressed by HE-AAC, MPEG-1 Layer 3 encoder. DB90-TX also supports uncompressed PCM stream in order to ensure audio transmission without quality loss. Compression is performed in real time, and the output signal is transmitted directly by IP-based networks. DB90-TX can work with both analog and digital audio signal. No matter how sophisticated, DB90-TX is located in a small and compact housing. All this allows you to quickly and painlessly integrate existing audio systems to the Internet.

Developed with the thought of easiness of use, DB90-TX can be managed through a standard Web browser, PC, PDA or other device, making it the best choice for professional and consumer use.

APPLICATION:

Audio transmission over IP-based networks Point-to-Point Audio Transfer
(DB90-RX is required at the opposite site)
Suitable for professional and consumer use

Features:

High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer-3 Compression
32 kHz, 44.1, 48 and 96 kHz sample rates support
Up to 56 kbps bitrate for HE-AAC Up to 320 kbps bitrate for MPEG-1 Layer-3
Up to 3072 kbps for PCM 6 LEDs and Phones output for quick diagnostics IP address pronunciation at startup (through the headphones)
DHCP Client automatically assigning Network Settings
Full Control and easy setup via a standard web browser UPnP for easy discovery in Local Networks
Shoutcast / Icecast compatible TCP/IP stream
Analog Audio Input (2 x RCA connectors)
Digital Audio Input (RCA Connector)
RJ-45 Ethernet Connector Up to 10 simultaneously connected clients

Audio codecCodecHE-AAC (v.1 and v.2), MPEG-1 Layer 3 or raw PCMSample rates32 kHz, 44.1 kHz and 48 kHzChannels1 or 2BitrateUp to 56 kbps (HE-AAC); Up to 320 kbps (MPEG-1); Up to 3072 kbps (PCM);MPEG-1 Layer 3 specificEncoding modeMono and Stereo, Joint Stereo or Dual ChannelEmphasis50µs, CCITT J.17 or nonePCM codecChannels1 or 2BitrateUp to 3072 kbpsAnalog audio inputConnector2 x RCA, stereoTypeUnbalancedLevel6 dBu (max. 8dBu)Sample rate96 kHz; Build-in sample rate converter used to produce lower sample ratesDynamic range102 dBDigital audio inputConnectorRCATypeS/PDIF (IEC 60958)ResamplingThru build-in sample rate converterPhones audio outputConnector3.5mm jack, stereoTypeHeadphonesUser interfaceIndicators6 LEDs on front panelWeb interfaceFull control and status informationStreaming serverTypeShoutcast / Icecast compatible TCP/IP streamClientsLimit Up to 10 simultaneous clientsNetworkConnectorRJ-45TypeEthernetDevice discoveryUPnP supportOperating conditionsTemperature10°C – 45°CHumidity< 75%, non-condensingPower requirementsConnectorPower Jack 6,3mmPower supply12V DC, 1ASize and WeightDimensions (W;H;D)106 x 33 x 128 mmShipping Weight230 x 54 x 172 mm / 0.7kg

Description: Deva Broadcast DB90-TX Audio over IP Codec

Deva DB90-TX is an integrated audio converter that converts audio signal into a high quality compressed audio stream. The signal can be compressed by HE-AAC, MPEG-1 Layer 3 encoder. DB90-TX also supports uncompressed PCM stream in order to ensure audio transmission without quality loss. Compression is performed in real time, and the output signal is transmitted directly by IP-based networks. DB90-TX can work with both analog and digital audio signal. No matter how sophisticated, DB90-TX is located in a small and compact housing. All this allows you to quickly and painlessly integrate existing audio systems to the Internet.

Developed with the thought of easiness of use, DB90-TX can be managed through a standard Web browser, PC, PDA or other device, making it the best choice for professional and consumer use.

APPLICATION:

Audio transmission over IP-based networks Point-to-Point Audio Transfer
(DB90-RX is required at the opposite site)
Suitable for professional and consumer use

Features:

High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer-3 Compression
32 kHz, 44.1, 48 and 96 kHz sample rates support
Up to 56 kbps bitrate for HE-AAC Up to 320 kbps bitrate for MPEG-1 Layer-3
Up to 3072 kbps for PCM 6 LEDs and Phones output for quick diagnostics IP address pronunciation at startup (through the headphones)
DHCP Client automatically assigning Network Settings
Full Control and easy setup via a standard web browser UPnP for easy discovery in Local Networks
Shoutcast / Icecast compatible TCP/IP stream
Analog Audio Input (2 x RCA connectors)
Digital Audio Input (RCA Connector)
RJ-45 Ethernet Connector Up to 10 simultaneously connected clients
Specifications: Audio codecCodecHE-AAC (v.1 and v.2), MPEG-1 Layer 3 or raw PCMSample rates32 kHz, 44.1 kHz and 48 kHzChannels1 or 2BitrateUp to 56 kbps (HE-AAC); Up to 320 kbps (MPEG-1); Up to 3072 kbps (PCM);MPEG-1 Layer 3 specificEncoding modeMono and Stereo, Joint Stereo or Dual ChannelEmphasis50µs, CCITT J.17 or nonePCM codecChannels1 or 2BitrateUp to 3072 kbpsAnalog audio inputConnector2 x RCA, stereoTypeUnbalancedLevel6 dBu (max. 8dBu)Sample rate96 kHz; Build-in sample rate converter used to produce lower sample ratesDynamic range102 dBDigital audio inputConnectorRCATypeS/PDIF (IEC 60958)ResamplingThru build-in sample rate converterPhones audio outputConnector3.5mm jack, stereoTypeHeadphonesUser interfaceIndicators6 LEDs on front panelWeb interfaceFull control and status informationStreaming serverTypeShoutcast / Icecast compatible TCP/IP streamClientsLimit Up to 10 simultaneous clientsNetworkConnectorRJ-45TypeEthernetDevice discoveryUPnP supportOperating conditionsTemperature10°C – 45°CHumidity< 75%, non-condensingPower requirementsConnectorPower Jack 6,3mmPower supply12V DC, 1ASize and WeightDimensions (W;H;D)106 x 33 x 128 mmShipping Weight230 x 54 x 172 mm / 0.7kg
Video

Additional information

Weight	1,5 kg
Dimensions	25 × 19 × 6 cm
