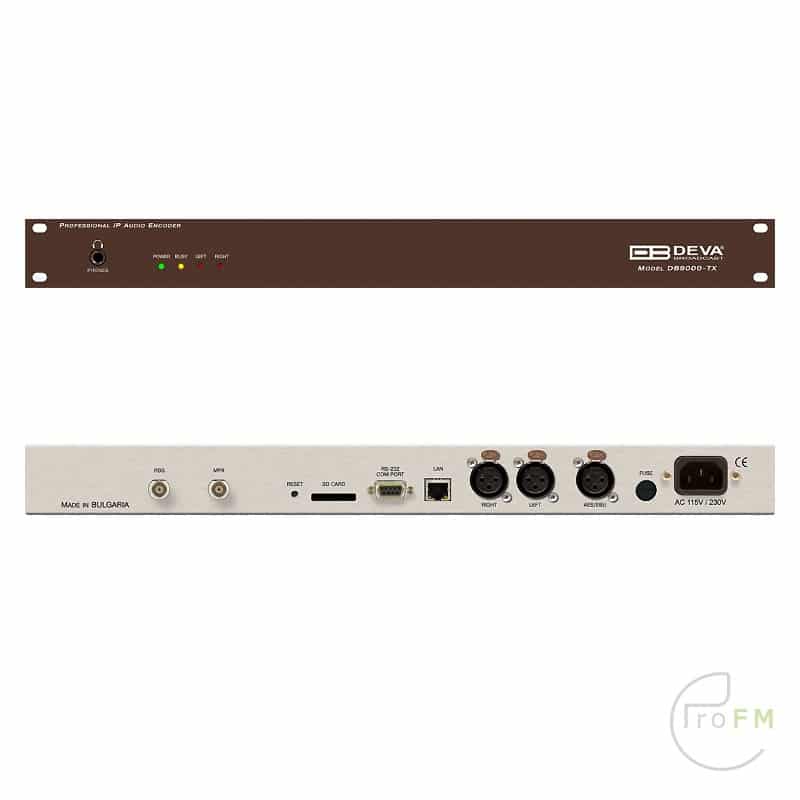

Deva Broadcast DB9000-TX Professional IP Audio Encoder
DB9000-TX is an integrated audio converter that converts audio signal into a high quality compressed audio stream. The signal can be compressed by HE-AAC, MPEG-1 Layer 3 encoder. DB9000-TX also supports uncompressed PCM stream in order to ensure audio transmission without quality loss. Compression is performed in real time, and the output signal is transmitted directly by TCP/ IP-based networks. DB9000-TX can work with both analog and digital audio signal.
With its RS-232 port, DB9000-TX could be transformed into Ethernet to serial Redirector, allowing to control any other existing equipment over Internet. DB9000-TX allows you to quickly and painlessly integrate existing audio systems to the Internet. Developed with the thought of easiness of use, DB9000-TX can be managed through a standard Web browser, PC, PDA or other device, making it the best choice for professional and consumer use.
Highlights
- High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer 3 Codecs
- 32 kHz, 44.1 and 48 kHz sample rates support
- Up to 320 kbps under MPEG-1 Layer 3
- Up to 56 kbps under HE-AAC
- Shoutcast / Icecast compatible TCP/IP stream
- Up to 10 simultaneously connected clients
- 4 LEDs and Phones output for quick diagnostics
- IP address pronunciation at startup (through the headphones)

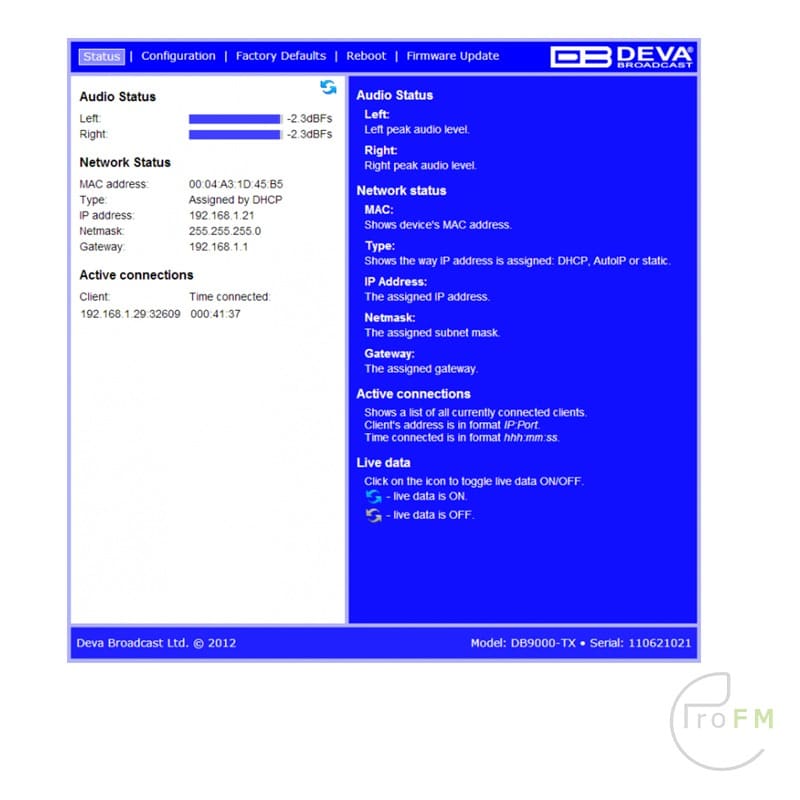

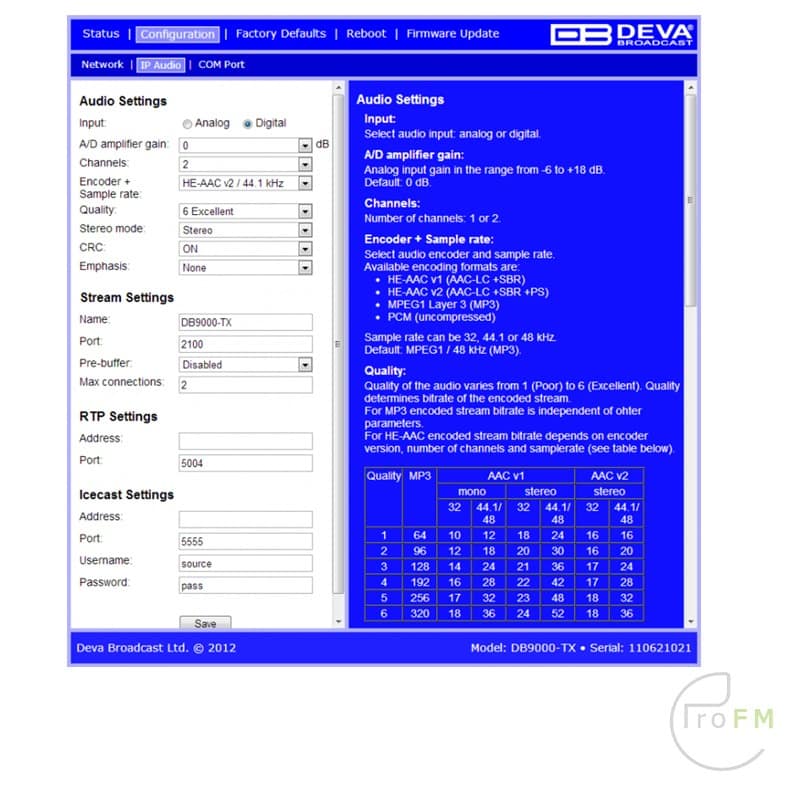

- Full Control and easy setup via a standard web browser
- UPnP for easy discovery in Local Networks
- Ethernet to RS-232 Redirector
| Audio codec | |
| Codec | HE-AAC (v.1 and v.2),; MPEG-1 Layer 3; raw PCM |
| Sample rates | 32 kHz, 44.1 kHz, 48 kHz |
| Channels | 1 or 2 |
| Bitrates | Up to 56 kbps (HE-AAC); Up to 320 kbps (MPEG-1); Up to 3072 kbps (PCM); |
| MPEG-1 Layer 3 specific | |
| Encoding mode | Mono and stereo, Joint Stereo or Dual Channel |
| Emphasis | 50µs, CCITT J.17 or none |
| PCM codec | |
| Channels | 1 or 2 |
| Bitrate | Up to 3072 kbps |
| Analog audio input | |
| Connector | 2 x XLR, stereo |
| Type | Balanced |
| Impedance | 600Ω or high impedance |
| Level | 6dBu / 12dBu, user selectable |
| Sample rate | 96 kHz; Build-in sample rate converter used to produce lower sample rates |
| Dynamic range | >100 dB |
| Digital audio input | |
| Connector | XLR |
| Type | AES/EBU (IEC 60958) |
| Resampling | Thru build-in sample rate converter |
| Phones audio output | |
| Connector | 6.3mm jack, stereo |
| Type | Headphones |
| User interface | |
| Indicators | 4 LEDs on front panel, 2 LEDs on rear panel |
| Web interface | Full control and status information |
| Streaming server | |
| Type | Shoutcast / Icecast compatible TCP/IP stream |
| Clients limit | Up to 10 simultaneous clients |
| RS-232 | |
| Type | TCP/IP to RS-232 Redirector |
| Connector | DB-9 |
| Baud rates | 9600 to 115200 |
| Password protection | Yes |
| Network | |
| Connector | RJ-45 |
| Type | Ethernet |
| Device discovery | UPnP support |
| Operating conditions | |
| Temperature | 10°C – 45°C |
| Humidity | < 75%, non-condensing |
| Power requirements | |
| Voltage | 115/230V AC (internal switch), 18VA |
| Connector | IEC320, rear panel |
| Size and Weight | |
| Dimensions (W;H;D) | 485 x 44 x 180 mm |
| Shipping Weight | 540 x 115 x 300 mm / 2.6kg |
- Description
-
Deva Broadcast DB9000-TX Professional IP Audio Encoder
DB9000-TX is an integrated audio converter that converts audio signal into a high quality compressed audio stream. The signal can be compressed by HE-AAC, MPEG-1 Layer 3 encoder. DB9000-TX also supports uncompressed PCM stream in order to ensure audio transmission without quality loss. Compression is performed in real time, and the output signal is transmitted directly by TCP/ IP-based networks. DB9000-TX can work with both analog and digital audio signal.
With its RS-232 port, DB9000-TX could be transformed into Ethernet to serial Redirector, allowing to control any other existing equipment over Internet. DB9000-TX allows you to quickly and painlessly integrate existing audio systems to the Internet. Developed with the thought of easiness of use, DB9000-TX can be managed through a standard Web browser, PC, PDA or other device, making it the best choice for professional and consumer use.
Highlights
- High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer 3 Codecs
- 32 kHz, 44.1 and 48 kHz sample rates support
- Up to 320 kbps under MPEG-1 Layer 3
- Up to 56 kbps under HE-AAC
- Shoutcast / Icecast compatible TCP/IP stream
- Up to 10 simultaneously connected clients
- 4 LEDs and Phones output for quick diagnostics
- IP address pronunciation at startup (through the headphones)
- Full Control and easy setup via a standard web browser
- UPnP for easy discovery in Local Networks
- Ethernet to RS-232 Redirector
- Specifications
-
Audio codec Codec HE-AAC (v.1 and v.2),; MPEG-1 Layer 3; raw PCM Sample rates 32 kHz, 44.1 kHz, 48 kHz Channels 1 or 2 Bitrates Up to 56 kbps (HE-AAC); Up to 320 kbps (MPEG-1); Up to 3072 kbps (PCM); MPEG-1 Layer 3 specific Encoding mode Mono and stereo, Joint Stereo or Dual Channel Emphasis 50µs, CCITT J.17 or none PCM codec Channels 1 or 2 Bitrate Up to 3072 kbps Analog audio input Connector 2 x XLR, stereo Type Balanced Impedance 600Ω or high impedance Level 6dBu / 12dBu, user selectable Sample rate 96 kHz; Build-in sample rate converter used to produce lower sample rates Dynamic range >100 dB Digital audio input Connector XLR Type AES/EBU (IEC 60958) Resampling Thru build-in sample rate converter Phones audio output Connector 6.3mm jack, stereo Type Headphones User interface Indicators 4 LEDs on front panel, 2 LEDs on rear panel Web interface Full control and status information Streaming server Type Shoutcast / Icecast compatible TCP/IP stream Clients limit Up to 10 simultaneous clients RS-232 Type TCP/IP to RS-232 Redirector Connector DB-9 Baud rates 9600 to 115200 Password protection Yes Network Connector RJ-45 Type Ethernet Device discovery UPnP support Operating conditions Temperature 10°C – 45°C Humidity < 75%, non-condensing Power requirements Voltage 115/230V AC (internal switch), 18VA Connector IEC320, rear panel Size and Weight Dimensions (W;H;D) 485 x 44 x 180 mm Shipping Weight 540 x 115 x 300 mm / 2.6kg
