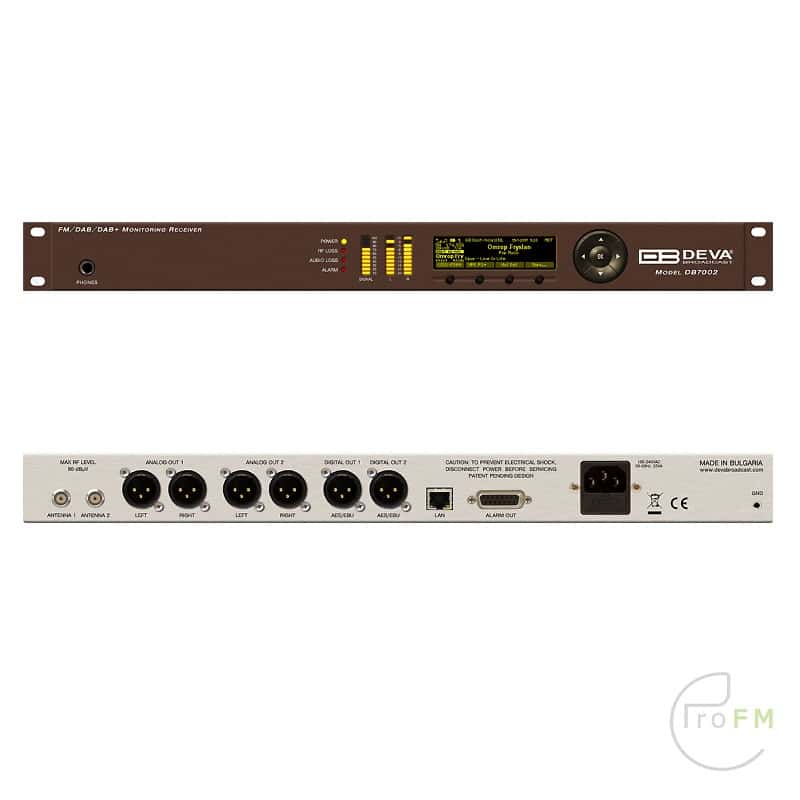

Deva Broadcast DB7002 Professional FM/DAB/DAB+ Monitoring Receiver

DB7002 is a revolutionary solution that combines in a single, high-precision tool the most important functionalities of two separate types of product. To achieve that, our engineers have equipped this model with two independent tuners – one for FM and one for DAB/DAB+, allowing for the device to perform both FM and DAB/DAB+ monitoring in parallel. It provides detailed and accurate measurement of all of the most important signal parameters and also boasts two loggers with 24 channels apiece for FM and DAB/DAB+. The recorded information is stored in log files on an SD card for easy future analysis and can easily be downloaded via a standard FTP client.

As a product that incorporates DAB/DAB+ monitoring capabilities, DB7002 fully meets the ETSI EN 300 401 DAB standard and offers support for Program Associated Data (PAD), as well as all standard bitrates and VBR, and automatically displays live metadata.

As an FM monitoring tool, DB7002 also provides powerful signal processing capabilities through sophisticated DSP algorithms and offers a Loudness Meter, which allows for measurements to be shown as defined by ITU BS.1770-4 and EBU R128 recommendations.

To make sure the transmission is not interrupted, there are local alarm options and online notifications via rear-panel alarm GPOs, E-mail and SNMP in case there is audio loss or a change in the signal.

The Deva Broadcast DB7002 FM-DAB+ Monitoring Receiver can also be managed without effort. It is easy to program via the front-panel menu or remotely through your PC, tablet or smart phone via a standard web browser; iOS and Android devices are also supported. The high-resolution OLED graphical display and the ultra-bright LED bar graph indicators allow for easy reading of the main signal parameters. A user-friendly front panel menu in addition to the set of four soft buttons provides easy navigation and quick access to each function.

DB7002 is definitely a must-have. Its two independent tuners set it apart from any other product, while its effectiveness and precision make it the perfect monitoring tool.

Highlights

• FM Band 87.1 – 108 MHz Basic Spectrum Analyzer
• Up to 100 dBµV direct RF Antenna Input
• Selectable wide range IF filter bandwidth
• Fully DSP-based core
• Built-in Loudness Analyzer
• Bright bar graph LED metering of the RF and Audio Levels
• Wide angle, easy to read OLED display
• Very Intuitive Navigational Menu
• Levels measurement with data history
• Selectable De-emphasis
• Built-in Stereo Decoder
• RDS and RBDS decoder with BER meter
• Built-in 24 channel FM Data logger
• Real Time Audio Program Streaming
• DAB/DAB+ compliant receiver
• Support for Program Associated Data (PAD)
• Detailed DAB component information
• High-end digital tuner
• Built-in 24 channel DAB/DAB+ Data logger
• Protected access to the device settings
• Headphone output with front panel level control
• SNTP for automatic synchronization of the built-in clock
• Level Adjustable, Balanced Analog Audio Outputs on XLR Connectors
• Professional AES/EBU Digital audio output
• LAN port for full TCP/IP remote control and monitoring
• Adjustable MIN/MAX alarms for RF, Left & Right Audio Levels
• Alarm dispatch via E-mail, SNMP ver.2C and GPO
• Built-in WEB and FTP server
• Easy to use WEB interface
• Apple and Android devices support
• Firmware updates will ensure improved operation
• Accurate front-panel metering for local use
• Restore Factory Parameters option
• Easy Installation and Setup

DAB/DAB+ Radio Input
RF frequency range 168 – 240 MHz
DAB/DAB+ Band III Channels 5A – 13F
Sensitivity 18 dBµV
Input connector BNC 50Ω
In compliance with ETSI EN 300 401
Ensemble acquisition Time 940 ms
L&R Audio 1%, +5.0 to -50.0 dB, 0.1 dB resolution
DAB/DAB+ Radio Metering
Quality indicators RSSI, SNR, CNR, FIC Quality, FIB Errors, FFT Offset
PAD DLS, MOT
Metadata Displayed Ensemble Label, Component List & ID, Service List & ID, Dynamic Label, PTY, Sample Rate, Bit Rate, Gain, Mode, Service Mode, Protection Info, Current CU & Address, Country, Language, Time & Date
FM Radio Input
Tuning Range 87.1-108 MHz (CCIR)
Tuning Step 10, 20, 50, 100 kHz
Tuner Sensitivity 30 dBµV
Antenna Ports BNC Connector, 50Ω
Antenna Ports Isolation > 40 dB
Dynamic range 100 dB
FM Demod
IF Filter Bandwindth 15 Increments (27kHz – 157kHz, Auto)
Dynamic range 90 dB
Stereo Decoder
Frequency Response (L and R) ±0.1 dB, 10 Hz to 15 kHz
SNR (Stereo) 60 dB, 50 µs de-emphasis
THD 0.15% @ 1kHz, 0.4% from 10 Hz to 15 kHz, 50 µs de-emphasis
Separation 50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis
Crosstalk 52 dB
RDS Decoder
Standards European RDS CENELEC; United States RBDS NRSC
Error Correction & Counting Yes
AF Decoding Yes
CT (Time/Date) Yes
PI, PTY, DI, MS Yes
TA/TP Yes
PS (Program Service name) Yes
Group Analyzer Yes
BER Analyzer Yes
Group Sequence Display Yes
FM Radio Metering
RF Level ±1 dB, 0 to 100 dBµV
Audio ±1 dB, +10.0 to -55.0 dB, 0.1 dB resolution
Outputs
FM Audio (L, R) +6 dBm, 600Ω, balanced XLR Connector
DAB/DAB+ Audio (L, R) +12 dBm, 600Ω, balanced XLR Connector
AES3 (L, R) 5.0 Vp-p, 110Ω, balanced XLR Connector
Alarms 7 Programmable terminals on rear panel, optoisolated
Headphone 6,3mm (1/4″) Phone Jack
Communication Interfaces
Ethernet 10/100 Base-T RJ45 Connector
Measurement Storage
Storage 16GB Build-in Memory Card
Data format Text, CSV
Power Voltage 100-240V / 50-60 Hz
Power Consumption 20VA
Connector IEC320, Fused and EMI-suppressed
Size and Weight
Dimensions (W;H;D) 485 x 44 x 180 mm
Shipping Weight 540 x 115 x 300 mm / 2.700 kg
HS Code 8527212000
