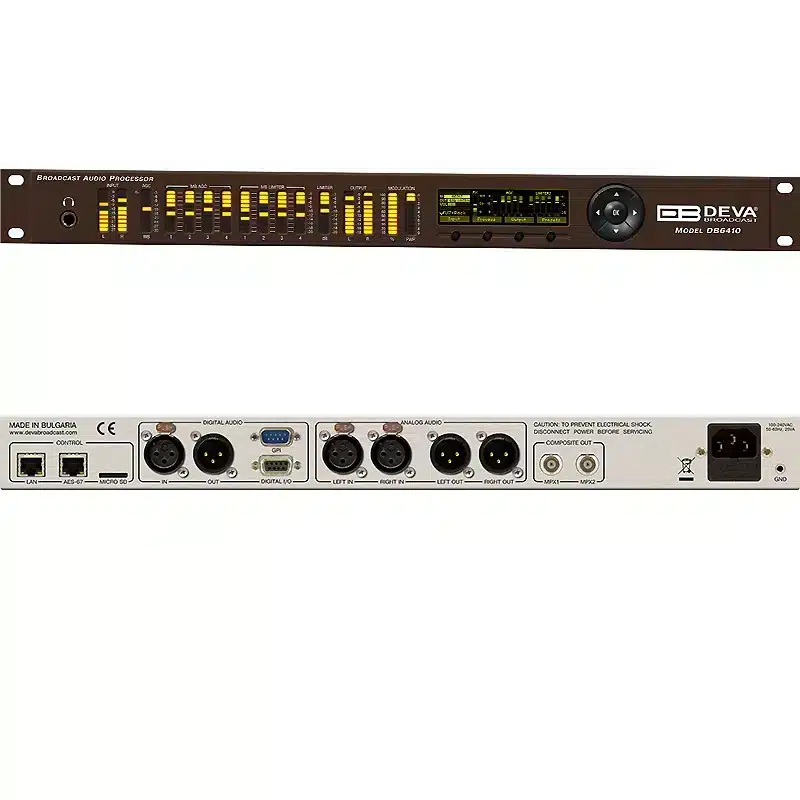

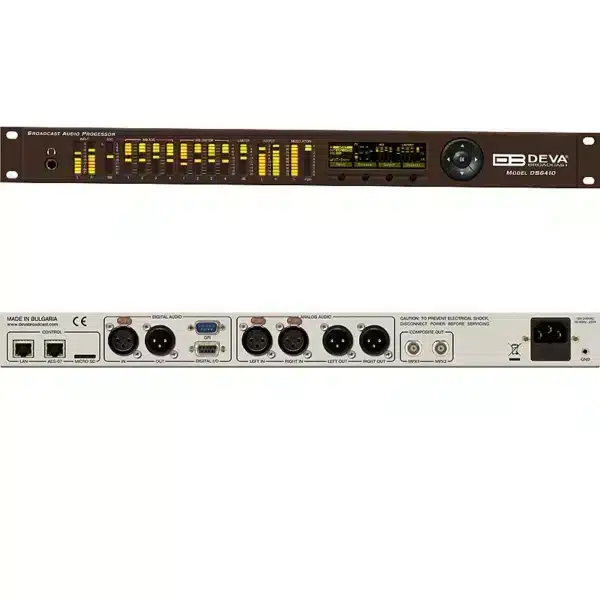

Deva Broadcast DB6410 Advanced FM /HD Audio processor

 Advanced FM & Digital Radio AES67 Compatible 4-Band Audio Processor

Leveraging years of top-level broadcasting experience and the undeniable expertise of our engineering team, we proudly introduce the DB6410 FM and Digital Radio 4-Band Audio Processor.

Support for AES67 Audio Sources: The DB6410 fully supports AES67 audio sources, making it highly versatile and capable of seamless integration into modern audio environments. This feature ensures compatibility with a wide range of networked audio systems, enhancing its utility and flexibility.

This DSP-based Stereo Encoder ensures precise MPX signals with advanced peak control and two independently configurable composite MPX outputs. The DB6410 delivers impeccable audio clarity regardless of the source material. Its comprehensive processing architecture includes Wideband AGC with “Intelligent Gating,” 4-band Parametric EQ, Advanced Bass and Treble Controls, 4-Band High-Quality Sound Processor with Fidelity Control and Sound Impact, 4-Band Limiter, FM Limiter with advanced distortion and pre-emphasis control, and HD Lookahead Limiter.

A standout feature of the DB6410 is its Fallback function. This state-of-the-art device detects signal loss and automatically switches to a backup source, ensuring uninterrupted audio. It also sends an email notification for immediate technical support response. You can update the backup content via a standard FTP client on any PC. The system automatically reverts to the main audio source once the default input is restored. All silence sense parameters are user-defined.

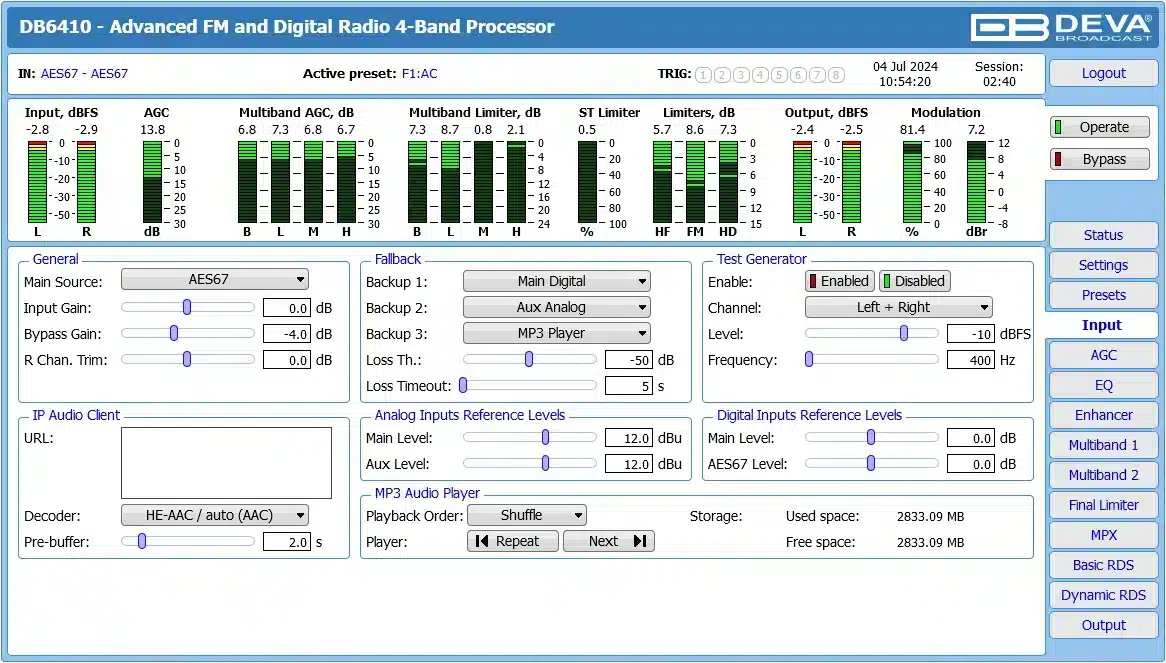

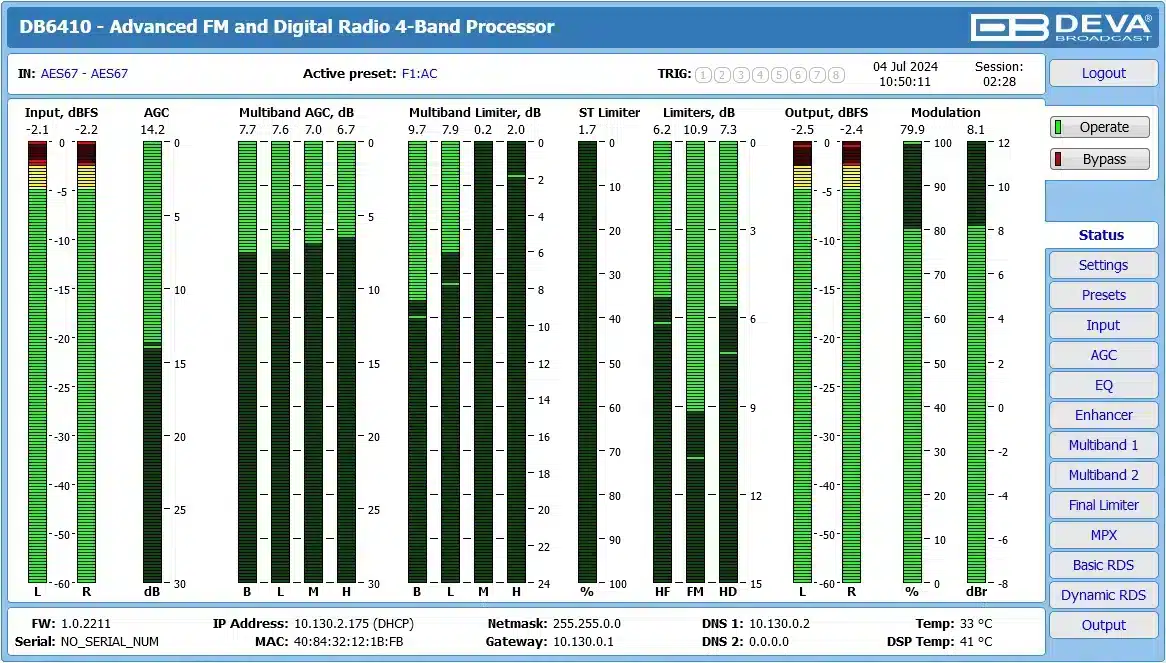

The DB6410 features a user-friendly, comprehensive, and well-organized interface. It is accessible through the front panel, remotely via TCP/IP, and through a web interface on iOS, Android, or any other mobile device.

This unique device represents the pinnacle of DEVA’s engineering achievements, combining ease of use, affordability, and superior performance with an array of technical features unmatched in its class.

Features:

• AES67 and Dante Audio Interfaces
• Ultra low latency, all-digital DSP based design
• Advanced Wide Band AGC
• 4-Band Parametric EQ
• Advanced Bass & Treble Controls
• 4-Band Limiter
• FM Controlled distortion Limiter
• 4-Band Dynamic Processor with Fidelity and Sound Impact System
• HD Lookahead Limiter
• Extensive set of factory presets and several customizable user presets
• L/R Analog inputs and outputs and two independent Composite MPX outputs.
• Integrated digital stereo generator with advanced peak control
• Built-in web server for remote control access via TCP/IP connection
• Software Control (over local network or the Internet using any Windows® PC)
• Built in DSP-based RDS/RBDS encoder
• Bright, wide view angle OLED and full-time LED meters
• Easy setup and control via the front panel
• Remotely upgradable firmware to ensure improved operation
• Headphone output with front panel level control
• Intelligent Silence Detector
• Variety of Audio Sources
• Multi-format IP Audio Player
• Built-in MP3 Player
• SD Card for Audio Backup Storage
• Externally synchronized output sample rate
• Tight peak control at all outputs
• Fallback function in case of Audio Loss
• EMI-suppressed XLR connectors
• Bypass and Test tone Mode
• Embedded SNMP agent permitting full device management
• Easy to use WEB interface
• Apple and Android devices support
• SNTP for automatic synchronization of the built-in clock
• Notifications on input/preset change via E-mail and SNMP
• Protected access to the device settings
• Professional AES/EBU Digital audio inputs
• Level Adjustable, Balanced Analog and Digital Audio Outputs
• LAN port for full TCP/IP remote control and monitoring
• USB communication interface for local connectivity
• Easy Installation and Setup
• Wide operating voltage range: 100-240V AC
• 19” Professional Case for high RF immunity
