Description

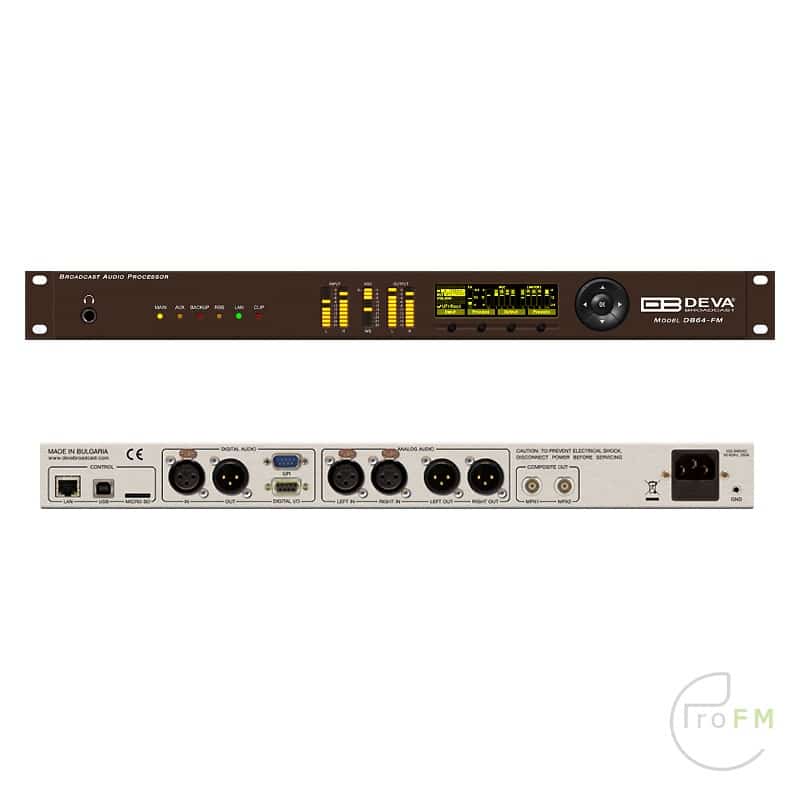

Deva Broadcast DB64 FM Audio Processor RDS
The DB64-FM is the ultimate audio processing solution offered by DEVA bringing to you unheard-of balance between quality and price. It guarantees perfect clarity of sound and a multitude of features that are unrivalled in its class. In keeping with the other members of DEVA’s audio processors family, this device is an outstanding blend between dependability and functionality. The all-digital DSP-based design, the 4-band processor and the advanced wide band AGC are just a few of the parameters that ensure its top performance.
As part of its long and well-established tradition of occupying just the right market niches and supplying the broadcasting world with products that stand out as the best answer to customer needs, DEVA is yet again delivering a tool of undisputed quality and surpassing even its own high standards. A device appropriate for all LPFMs and featuring a 4-band stereo generator with Fidelity and Sound Impact System, the DB64-FM makes no compromises with sound quality. Among its wide variety of features are the FM controlled distortion limiter, the analog and digital audio outputs, two independent composite MPX outputs, as well as its ability to detect signal loss and switch over to a backup source. Automatic notifications are sent upon input or preset change via email or SNMP.
As any other DEVA product, with this one our engineers have also opted for the user-friendly design and operation. Parameters can be easily viewed on the OLED display with the help of the full-time LED meters. Access to setting up, programming and control of the device is provided through the front panel, but also through the built-in web server for remote control via TCP/IP connection.
The DB64-FM is a one-of-a-kind device that has never before been introduced to the broadcasting market – a tool with an impressive all-round performance that provides the ultimate combination of features at a sensational price. Quality has never before been so affordable.
Features:
- Ultra low latency, all-digital DSP based design
- Advanced Wide Band AGC
- FM Controlled distortion Limiter
- 4-Band Dynamic Processor with Fidelity and Sound Impact System
- L/R Analog inputs and outputs and two independent Composite MPX outputs.
- Integrated digital stereo generator with advanced peak control
- Built-in web server for remote control access via TCP/IP connection
- Software Control (over local network or the Internet using any Windows® PC)
- Built in DSP-based RDS/RBDS encoder
- Bright, wide view angle OLED and full-time LED meters
- Easy setup and control via the front panel
- Remotely upgradable firmware to ensure improved operation
- Headphone output with front panel level control
- Intelligent Silence Detector
- Fallback function in case of Audio Loss
- EMI-suppressed XLR connectors
- Stereo encoder integrated with audio processing
- Bypass and Test tone Mode
- Embedded SNMP agent permitting full device management
- Easy to use WEB interface
- SNTP for automatic synchronization of the built-in clock
- Notifications on input/preset change via E-mail and SNMP
- Professional AES/EBU, SPDIF and Optical Digital audio inputs
- Level Adjustable, Balanced Analog and Digital Audio Outputs
- LAN port for full TCP/IP remote control and monitoring
- USB communication interface for local connectivity
- Easy Installation and Setup
- 19” Professional Case for high RF immunity
| Analog Audio Input | |
| Connectors | Main – Two XLR, EMI suppressed, electronically balanced; Auxiliary – DB9, EMI suppressed, electronically balanced |
| Configuration | Stereo |
| Input level (0 dBFS) | Software selectable -8 dBu to 24 dBu peak |
| Impedance | Jumper selectable 600Ω / >10kΩ |
| A/D Conversion | 24 bit; 48 kHz sample rate; Differential inputs |
| Analog Audio Output | |
| Connectors | Two XLR, EMI suppressed, electronically balanced |
| Configuration | Stereo. Software selectable flat, pre-emphasized or de-emphasized |
| Output Level( 0 dBFS) | Software selectable -12 dBu to 24 dBu peak into >= 600Ω load |
| Source Impedance | 20Ω |
| Load Impedance | >= 600Ω, balanced/unbalanced |
| Signal-to-Noise | >= 110 dB unweighted (Bypass mode, digital input, flat, 20Hz-15kHz bandwidth, referenced to 12 dBu output level) |
| Distortion | <= 0.01 THDN (Bypass mode, digital input, flat, 20Hz-15kHz bandwidth, referenced to 12 dBu output level) |
| D/A Conversion | 24 bit; 192 kHz sample rate; Differential outputs |
| Digital Audio Input | |
| Connectors | Main – XLR, EMI suppressed, transformer balanced and floating; 110Ω impedance; Auxiliary – DB9, EMI suppressed, transformer balanced and floating; 110Ω impedance |
| Configuration | Stereo AES3 standard, up to 24 bit resolution |
| Sampling Rate | 22 kHz to 192 kHz |
| Input Gain | -20 dB to 20 dB, referenced to 0 dBFS, software selectable |
| Digital Audio Output | |
| Connector | XLR, EMI suppressed, transformer balanced and floating; 110Ω impedance |
| Configuration | Stereo AES3 standard, 24 bit resolution. Software selectable flat, pre-emphasized or de-emphasized |
| Sample Rate | Internal – 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz. Externally synced to Main AES3 digital input at 32 to 192 kHz. Software selectable. |
| Word Length | 24 bit |
| Output Reference Level | -20 to 0 dBFS software selectable |
| Composite Baseband Output | |
| Connectors | BNC unbalanced, chasis floating, EMI suppressed |
| Configuration | Two outputs. Independent level control. MPX MPX, MPX PILOT or BYPASS mode |
| Source impedance | 75Ω |
| Load impedance | 50Ω or greater |
| Output level | -18dBu to 18dBu |
| Pilot level | 0% to 15% |
| D/A conversion | 24 bit, differential |
| SNR | >80 dB (Bypass mode, flat, 20Hz – 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted) |
| THD | < 0.01% (Bypass mode, flat, 20Hz – 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted) |
| Stereo Separation | >60dB |
| Crosstalk | >70dB |
| Pilot protection | >90dB relative to 9% pilot injection, ±250 Hz |
| 38 kHz suppression | >80dB (referenced to 100% modulation) |
| Remote Access Interface | |
| Configuration | TCP/IP via USB or Ethernet interface |
| USB Connector | USB type B connector |
| Ethernet Connector | Female RJ45 shielded connector for 10/100 Mbps CAT5 ethernet networks |
| Remote Control Interface (GPI) | |
| Connector | DB-9 male |
| Configuration | Eight LED optocoupler, current limited cathode inputs. Anodes are connected to VCC internally. |
| Control | Selects corresponding user preset if connected to GND |
| Power | |
| Voltage | 100-240 VAC, 50-60 Hz, 30VA |
| Connector | IEC, Fused and EMI-suppressed. Detachable 3-wire power cord supplied |
| Environmental | |
| Operating Temperature | 0° to 50°C / 32° to 122°F |
| Humidity | 0-95% RH, non-condensing |
| Size and Weight | |
| Dimensions (W;H;D) | 483 x 44 x 180 mm / 19 x 1.875 x 7” |
| Shipping Weight | 540 x 115 x 300 mm / 2.6kg |
- Description
-
Deva Broadcast DB64 FM Audio Processor RDS
The DB64-FM is the ultimate audio processing solution offered by DEVA bringing to you unheard-of balance between quality and price. It guarantees perfect clarity of sound and a multitude of features that are unrivalled in its class. In keeping with the other members of DEVA’s audio processors family, this device is an outstanding blend between dependability and functionality. The all-digital DSP-based design, the 4-band processor and the advanced wide band AGC are just a few of the parameters that ensure its top performance.
As part of its long and well-established tradition of occupying just the right market niches and supplying the broadcasting world with products that stand out as the best answer to customer needs, DEVA is yet again delivering a tool of undisputed quality and surpassing even its own high standards. A device appropriate for all LPFMs and featuring a 4-band stereo generator with Fidelity and Sound Impact System, the DB64-FM makes no compromises with sound quality. Among its wide variety of features are the FM controlled distortion limiter, the analog and digital audio outputs, two independent composite MPX outputs, as well as its ability to detect signal loss and switch over to a backup source. Automatic notifications are sent upon input or preset change via email or SNMP.
As any other DEVA product, with this one our engineers have also opted for the user-friendly design and operation. Parameters can be easily viewed on the OLED display with the help of the full-time LED meters. Access to setting up, programming and control of the device is provided through the front panel, but also through the built-in web server for remote control via TCP/IP connection.
The DB64-FM is a one-of-a-kind device that has never before been introduced to the broadcasting market – a tool with an impressive all-round performance that provides the ultimate combination of features at a sensational price. Quality has never before been so affordable.
Features:
- Ultra low latency, all-digital DSP based design
- Advanced Wide Band AGC
- FM Controlled distortion Limiter
- 4-Band Dynamic Processor with Fidelity and Sound Impact System
- L/R Analog inputs and outputs and two independent Composite MPX outputs.
- Integrated digital stereo generator with advanced peak control
- Built-in web server for remote control access via TCP/IP connection
- Software Control (over local network or the Internet using any Windows® PC)
- Built in DSP-based RDS/RBDS encoder
- Bright, wide view angle OLED and full-time LED meters
- Easy setup and control via the front panel
- Remotely upgradable firmware to ensure improved operation
- Headphone output with front panel level control
- Intelligent Silence Detector
- Fallback function in case of Audio Loss
- EMI-suppressed XLR connectors
- Stereo encoder integrated with audio processing
- Bypass and Test tone Mode
- Embedded SNMP agent permitting full device management
- Easy to use WEB interface
- SNTP for automatic synchronization of the built-in clock
- Notifications on input/preset change via E-mail and SNMP
- Professional AES/EBU, SPDIF and Optical Digital audio inputs
- Level Adjustable, Balanced Analog and Digital Audio Outputs
- LAN port for full TCP/IP remote control and monitoring
- USB communication interface for local connectivity
- Easy Installation and Setup
- 19” Professional Case for high RF immunity
- Specifications
-
Analog Audio Input Connectors Main – Two XLR, EMI suppressed, electronically balanced; Auxiliary – DB9, EMI suppressed, electronically balanced Configuration Stereo Input level (0 dBFS) Software selectable -8 dBu to 24 dBu peak Impedance Jumper selectable 600Ω / >10kΩ A/D Conversion 24 bit; 48 kHz sample rate; Differential inputs Analog Audio Output Connectors Two XLR, EMI suppressed, electronically balanced Configuration Stereo. Software selectable flat, pre-emphasized or de-emphasized Output Level( 0 dBFS) Software selectable -12 dBu to 24 dBu peak into >= 600Ω load Source Impedance 20Ω Load Impedance >= 600Ω, balanced/unbalanced Signal-to-Noise >= 110 dB unweighted (Bypass mode, digital input, flat, 20Hz-15kHz bandwidth, referenced to 12 dBu output level) Distortion <= 0.01 THDN (Bypass mode, digital input, flat, 20Hz-15kHz bandwidth, referenced to 12 dBu output level) D/A Conversion 24 bit; 192 kHz sample rate; Differential outputs Digital Audio Input Connectors Main – XLR, EMI suppressed, transformer balanced and floating; 110Ω impedance; Auxiliary – DB9, EMI suppressed, transformer balanced and floating; 110Ω impedance Configuration Stereo AES3 standard, up to 24 bit resolution Sampling Rate 22 kHz to 192 kHz Input Gain -20 dB to 20 dB, referenced to 0 dBFS, software selectable Digital Audio Output Connector XLR, EMI suppressed, transformer balanced and floating; 110Ω impedance Configuration Stereo AES3 standard, 24 bit resolution. Software selectable flat, pre-emphasized or de-emphasized Sample Rate Internal – 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz. Externally synced to Main AES3 digital input at 32 to 192 kHz. Software selectable. Word Length 24 bit Output Reference Level -20 to 0 dBFS software selectable Composite Baseband Output Connectors BNC unbalanced, chasis floating, EMI suppressed Configuration Two outputs. Independent level control. MPX MPX, MPX PILOT or BYPASS mode Source impedance 75Ω Load impedance 50Ω or greater Output level -18dBu to 18dBu Pilot level 0% to 15% D/A conversion 24 bit, differential SNR >80 dB (Bypass mode, flat, 20Hz – 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted) THD < 0.01% (Bypass mode, flat, 20Hz – 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted) Stereo Separation >60dB Crosstalk >70dB Pilot protection >90dB relative to 9% pilot injection, ±250 Hz 38 kHz suppression >80dB (referenced to 100% modulation) Remote Access Interface Configuration TCP/IP via USB or Ethernet interface USB Connector USB type B connector Ethernet Connector Female RJ45 shielded connector for 10/100 Mbps CAT5 ethernet networks Remote Control Interface (GPI) Connector DB-9 male Configuration Eight LED optocoupler, current limited cathode inputs. Anodes are connected to VCC internally. Control Selects corresponding user preset if connected to GND Power Voltage 100-240 VAC, 50-60 Hz, 30VA Connector IEC, Fused and EMI-suppressed. Detachable 3-wire power cord supplied Environmental Operating Temperature 0° to 50°C / 32° to 122°F Humidity 0-95% RH, non-condensing Size and Weight Dimensions (W;H;D) 483 x 44 x 180 mm / 19 x 1.875 x 7” Shipping Weight 540 x 115 x 300 mm / 2.6kg - Video
-
