Description

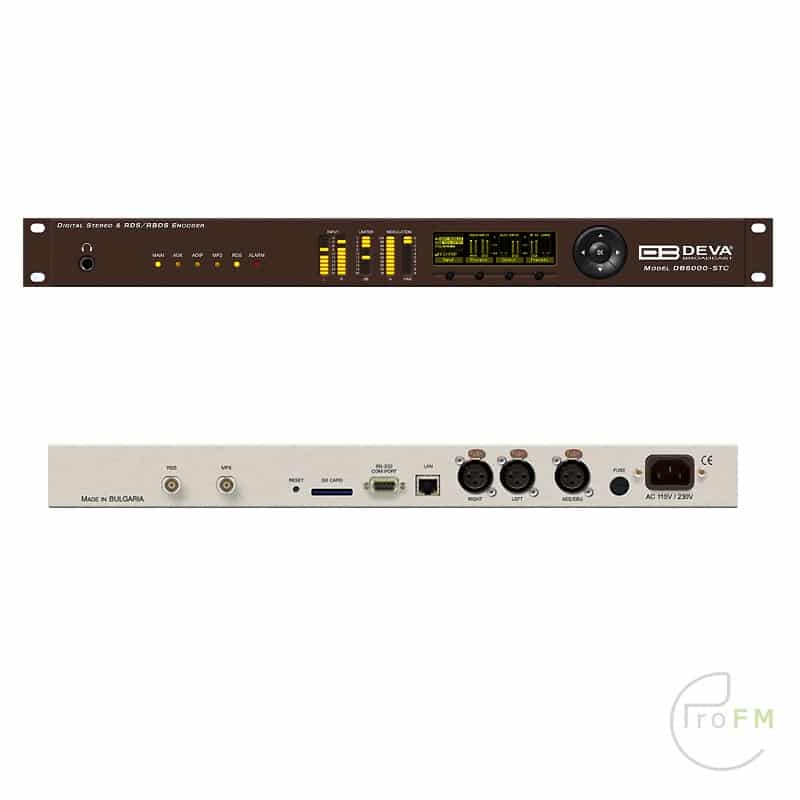

Deva Broadcast DB6000-STC Advanced Stereo and RDS Generator – BS412 Compliant
The DB6000-STC is the groundbreaking new broadcasting tool by DEVA. This is a 32bits DSP-based Stereo Generator combined with a built-in Dynamic RDS/RBDS encoder. It allows you to use both analog and digital AES/EBU audio sources and supports SNMP, RS232, UDP and TCP/IP communication protocols. Detects silence and automatically switches over to a backup source, thus ensuring a constant audio feed.
The DB6000-STC is fully BS412-compliant, making sure that you can achieve the loudness of sound that you need while retaining perfect sound clarity. It is compatible with all types of transmitters and provides the same consistent level of high-quality sound, fulfilling even the strictest customer requirements.
What makes this tool especially valuable is its ability to provide against the dead air problem. It detects audio loss and switches automatically to the alternative MP3 player whose backup audio files and playlists can be uploaded form your PC through any FTP client. Its storage capacity is 8GB.
DEVA’s line of broadcast tools can now boast a groundbreaking new device that provides a multitude of unparalleled features to meet the strictest requirements. It is fully BS412-compliant, making sure that you can achieve the loudness of sound that you need while retaining perfect sound clarity. It is compatible with all types of transmitters and provides the same consistent level of high-quality sound, fulfilling even the strictest customer requirements. The foundation of this exceptional tool is the 32bits DSP-based Stereo Generator combined with a built-in RDS/RBDS encoder. It allows you to use both analog and digital AES/EBU audio sources and supports SNMP, RS232, UDP and TCP/IP communication protocols.
Highlights:
- Fully Digital 32 bits DSP Stereo Encoder
- Excellent Audio Performances
- Digital Volume Control of all Audio Inputs
- Adjustable Pilot, L-R, RDS phases
- Selectable pre-emphasis 0, 50µs, 75µs
- Digitally adjustable Pilot & RDS injection levels
- Fully Digital Synthesis of the RDS Signal
- Intelligent Silence Detector and Backup Audio Player
- Configuration and Monitoring via SNMP Ver.2C & WEB
- Alert Notifications via E-mail, SNMP in case of Audio Loss
- Lots of Storage for over 24 hours of non-repeating audio playback
- Always Fresh Backup Audio Tracks with Embedded FTP server
Professional Balanced Stereo Analog Input on XLR connectors - Professional Digital AES/EBU Audio input on XLR connectors
- Headphones Jack for local monitoring of the Audio Signal
- Built-in MP3 Player with built in 2GB SD Card
- UPnP for easy discovery in Local Networks
- Professional 19 inches, 1U Professional rack mount chassis
- Remote Firmware Upgrade for future-proof operation
- Protected access to the device settings
- Easy installation and operation
- 2 Years Warranty
| Analog Audio Input | |
| Connectors | Main – Two XLR, EMI suppressed, electronically balanced; Auxiliary – DB9, EMI suppressed, electronically balanced |
| Configuration | Stereo |
| Input level (0 dBFS) | Software selectable -8 dBu to 24 dBu peak |
| Impedance | Jumper selectable 600Ω / >10kΩ |
| A/D Conversion | 24 bit; 48 kHz sample rate; Differential inputs |
| Analog Audio Output | |
| Connectors | Two XLR, EMI suppressed, electronically balanced |
| Configuration | Stereo. Software selectable flat, pre-emphasized or de-emphasized |
| Output Level( 0 dBFS) | Software selectable -12 dBu to 24 dBu peak into >= 600Ω load |
| Source Impedance | 20Ω |
| Load Impedance | >= 600Ω, balanced/unbalanced |
| Signal-to-Noise | >= 110 dB unweighted (Bypass mode, digital input, flat, 20Hz-15kHz bandwidth, referenced to 12 dBu output level) |
| Distortion | <= 0.01 THDN (Bypass mode, digital input, flat, 20Hz-15kHz bandwidth, referenced to 12 dBu output level) |
| D/A Conversion | 24 bit; 192 kHz sample rate; Differential outputs |
| Digital Audio Input | |
| Connectors | Main – XLR, EMI suppressed, transformer balanced and floating; 110Ω impedance; Auxiliary – DB9, EMI suppressed, transformer balanced and floating; 110Ω impedance |
| Configuration | Stereo AES3 standard, up to 24 bit resolution |
| Sampling Rate | 22 kHz to 192 kHz |
| Input Gain | -20 dB to 20 dB, referenced to 0 dBFS, software selectable |
| Digital Audio Output | |
| Connector | XLR, EMI suppressed, transformer balanced and floating; 110Ω impedance |
| Configuration | Stereo AES3 standard, 24 bit resolution. Software selectable flat, pre-emphasized or de-emphasized |
| Sample Rate | Internal – 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz. Externally synced to Main AES3 digital input at 32 to 192 kHz. Software selectable. |
| Word Length | 24 bit |
| Output Reference Level | -20 to 0 dBFS software selectable |
| Composite Baseband Output | |
| Connectors | BNC unbalanced, chasis floating, EMI suppressed |
| Configuration | Two outputs. Independent level control. MPX MPX, MPX PILOT or BYPASS mode |
| Source impedance | 75Ω |
| Load impedance | 50Ω or greater |
| Output level | -18dBu to 18dBu |
| Pilot level | 0% to 15% |
| D/A conversion | 24 bit, differential |
| SNR | >80 dB (Bypass mode, flat, 20Hz – 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted) |
| THD | < 0.01% (Bypass mode, flat, 20Hz – 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted) |
| Stereo Separation | >60dB |
| Crosstalk | >70dB |
| Pilot protection | >90dB relative to 9% pilot injection, ±250 Hz |
| 38 kHz suppression | >80dB (referenced to 100% modulation) |
| Remote Access Interface | |
| Configuration | TCP/IP via USB or Ethernet interface |
| USB Connector | USB type B connector |
| Ethernet Connector | Female RJ45 shielded connector for 10/100 Mbps CAT5 ethernet networks |
| Remote Control Interface (GPI) | |
| Connector | DB-9 male |
| Configuration | Eight LED optocoupler, current limited cathode inputs. Anodes are connected to VCC internally. |
| Control | Selects corresponding user preset if connected to GND |
| Power | |
| Voltage | 100-240 VAC, 50-60 Hz, 30VA |
| Connector | IEC, Fused and EMI-suppressed. Detachable 3-wire power cord supplied |
| Environmental | |
| Operating Temperature | 0° to 50°C / 32° to 122°F |
| Humidity | 0–95% RH, non-condensing |
| Size and Weight | |
| Dimensions (W;H;D) | 483 x 44 x 180 mm / 19 x 1.875 x 7” |
| Shipping Weight | 540 x 115 x 300 mm / 2.6kg |
